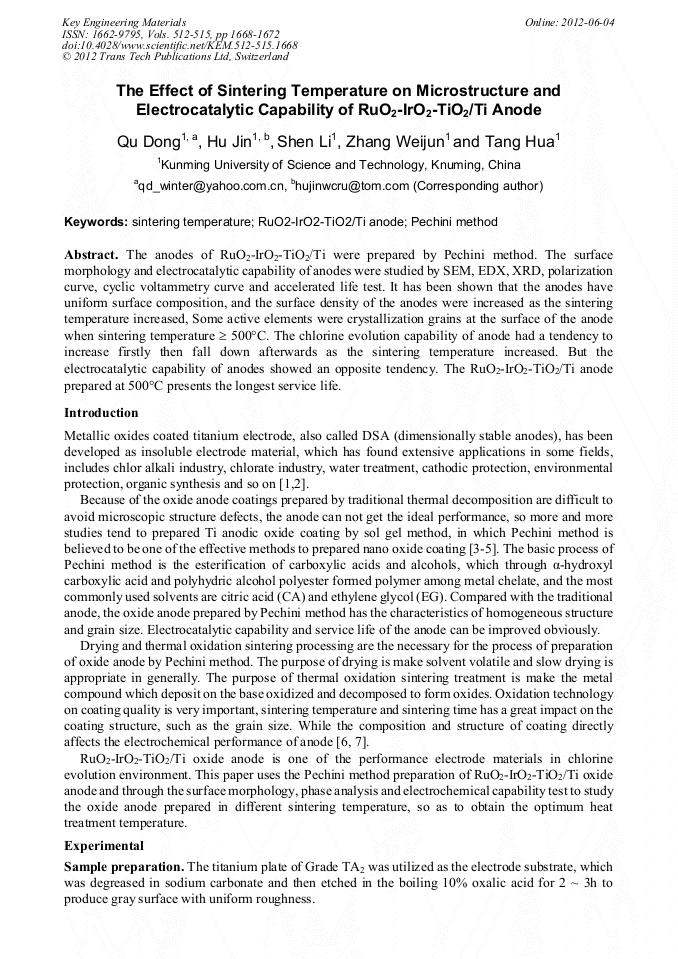

The Effect of Sintering Temperature on Microstructure and Electrocatalytic Capability of RuO₂-IrO₂-TiO₂/Ti Anode

Abstract:

The anodes of RuO₂-IrO₂-TiO₂/Ti were prepared by Pechini method. The surface morphology and electrocatalytic capability of anodes were studied by SEM, EDX, XRD, polarization curve, cyclic voltammetry curve and accelerated life test. It has been shown that the anodes have uniform surface composition, and the surface density of the anodes were increased as the sintering temperature increased, some active elements were crystallization grains at the surface of the anode when sintering temperature ≥500°C. The chlorine evolution capability of anode had a tendency to increase firstly then fall down afterwards as the sintering temperature increased. But the electrocatalytic capability of anodes showed an opposite tendency. The RuO₂-IrO₂-TiO₂/Ti anode prepared at 500°C presents the longest service life.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1668-1672
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1668
• Online since: June 2012
• Authors: Dong Qu, Jin Hu, Li Shen, Wei Jun Zhang, Hua Tang
• Keywords: Pechini Method, RuO₂-IrO₂-TiO₂/Ti Anode, Sintering Temperature

References

[1] Trasatti S: Electrocatalysis: Understanding the success of DSA, Electrochimica Acta. Vol. 45(2000), pp.2377-2385.

DOI: 10.1016/s0013-4686(00)00338-8

[2] Z. X. Zhang: Titanium electrode Engineering (Metallurgical Industry Press, Beijing, china, 2003), pp.273-276.

[3] de Oliveira-Sousa. A, da Sliva. M. A. S, Machado. S. A. S, et al.: Influence of the preparation method on the morphological and electrochemical properties of Ti/IrO2-coated electrodes, Electrochimica Acta, Vol. 45(2000), pp.4467-4473.

DOI: 10.1016/s0013-4686(00)00508-9

[4] Forti. J. C, Olivi. P, de Andrade. A. R: Characterisation of DSA®-type coatings with nominal composition Ti/Ru0.3Ti(0.7-x)SnO2 prepared via a polymeric precursor, Electrochimica Acta, Vol. 47(2001), pp.913-920.

DOI: 10.1016/s0013-4686(01)00791-5

[5] Terczo. A. J, Pereira. E. C: Preparation and characterization of Ti/RuO2 anodes obtained by sol-gel and conventional routes, Materials Letters, Vol. 53(2002), pp.339-345.

DOI: 10.1016/s0167-577x(01)00504-3

[6] H. B. Pan, H. Liu, W. Q. Jiao: Selection of oxidative thermal treatment temperature of Ti/IrO2 coating anodes, Rare metal materials and Engineering. Vol. 28(1999), p.50.

[7] J. M. Hu, Y. Y. Hou, X. M. Wang et al.: Effect of calcinations procedure on the electrocatalytic activities of Ti/IrO2 electrodes in acidic aqueous solution, Journal of Chemical Physics. Vol. 22(2006), pp.1010-1014.

[8] Yoshio Takasu, Satoshi Onoue, Kohichi Kameyama et al.: Preparation of ultrafine RuO2-IrO2-TiO2 oxide particles by solgel process, Electrochimica Acta, Vol. 39 (1994), p.1996.

DOI: 10.1016/0013-4686(94)85079-8

[9] Y. L. Xin, L. K. Xu, J. T. Wang, et al.: Effect of sintering temperature on microsteucture and electrocatalytic properties of Ti/IrO2-Ta2O5 nano-oxide anodes, Rare metal materials and Engineering, Vol. 39 (2010), p.1903.

DOI: 10.1016/s1875-5372(10)60135-x

[10] Camara O R, Trasatti S: Surface electrochemical properties of Ti/(RuO2+ZrO2) electrodes, Electrochim. Acta. Vol. 41(1996), p.420.

DOI: 10.1016/0013-4686(95)00315-0

[11] Trasatti S: Physical electrochemistry of ceramic oxide, Electrochimica Acta, Vol. 36(1991), p.225.

[12] J. M. Hu: Ph.D. Thesis (University of Science and Technology Beijing, Beijing, China, 2000), p.50.
