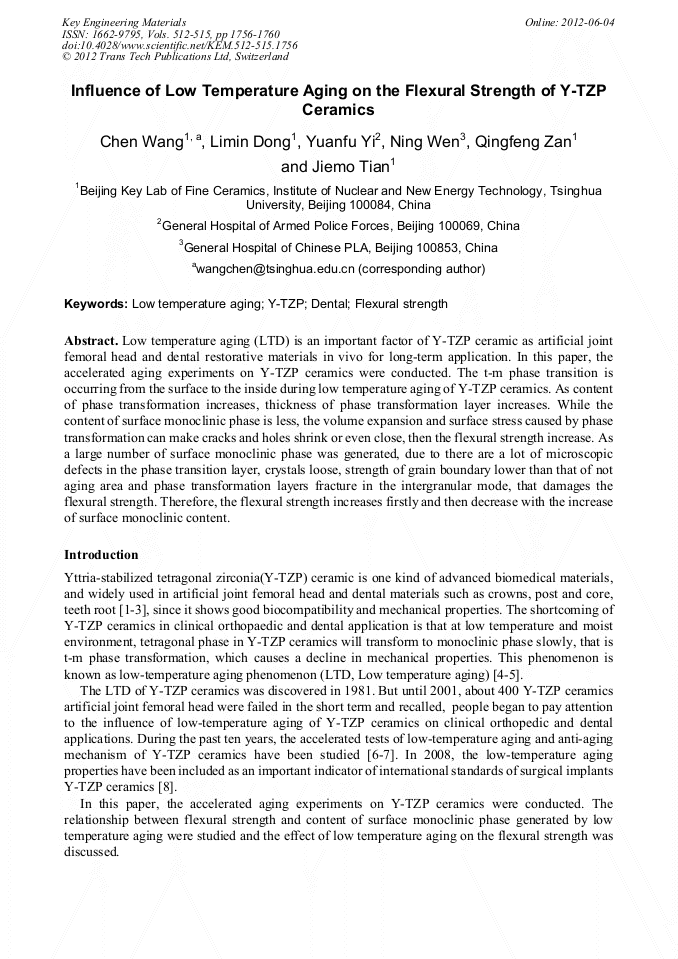

Influence of Low Temperature Aging on the Flexural Strength of Y-TZP Ceramics

Abstract:

Low temperature aging (LTD) is an important factor of Y-TZP ceramic as artificial joint femoral head and dental restorative materials in vivo for long-term application. In this paper, the accelerated aging experiments on Y-TZP ceramics were conducted. The t-m phase transition is occurring from the surface to the inside during low temperature aging of Y-TZP ceramics. As content of phase transformation increases, thickness of phase transformation layer increases. While the content of surface monoclinic phase is less, the volume expansion and surface stress caused by phase transformation can make cracks and holes shrink or even close, then the flexural strength increase. As a large number of surface monoclinic phase was generated, due to there are a lot of microscopic defects in the phase transition layer, crystals loose, strength of grain boundary lower than that of not aging area and phase transformation layers fracture in the intergranular mode, that damages the flexural strength. Therefore, the flexural strength increase firstly and then decrease with the increase of surface monoclinic content.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1756-1760
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1756
• Online since: June 2012
• Authors: Chen Wang, Li Min Dong, Yuan Fu Yi, Ning Wen, Qing Feng Zan, Jie Mo Tian
• Keywords: Dental, Flexural Strength, Low Temperature Aging, Y-TZP

References

[1] P. Christel, A. Meunier, J.M. Dorlot, et al. Biomechanical compatibility and design of ceramic implants for orthopedic surgery, Ann NY Acad Sci. 523 (1988) 234-256.

DOI: 10.1111/j.1749-6632.1988.tb38516.x

[2] C. Piconi, G.Maccauro, Zirconia as a ceramic biomaterial, Biomaterials. 20 (1999) 1-25.

DOI: 10.1016/s0142-9612(98)00010-6

[3] S.A. Catledge, M. Cook, Y. Vohra, et al. Surface crystalline phases and nanoindentation hardness of explanted zirconia femoral heads, J Mater Sci: Mater Med. 14 (2003) 863-867.

[4] J.F. Li, R. Watanabe, Phase transformation in Y2O3-partially-stabilized ZrO2 polycrystals of various grain size during low-temperature aging in water, J Am Ceram Soc. 81 (1998) 2687-2691.

DOI: 10.1111/j.1151-2916.1998.tb02677.x

[5] S. Chowdhury, Y.K. Vohra, J.E. Lemons, et al. Accelerating aging of zirconia femoral head implants: change of surface structure and mechanical properties, J Biomed Mater Res B 81 (2007) 486-492.

DOI: 10.1002/jbm.b.30688

[6] K. Haraguchi, N. Sugano, Y. Nishii, et al. Phase transformation of a zirconia cermaic head after total hip arthroplasty, J Bone Joint Surg. 83B (2001) 996-1000.

DOI: 10.1302/0301-620x.83b7.0830996

[7] M. Yoshimura, Y. Noma, K. Kawabata, et al. Role of H2O on the aging process of Y-TZP, J Mater Sci Let, 6 (1987) 465-467.

DOI: 10.1007/bf01756800

[8] ISO 13356: 2008(E) Implants for surgery — Ceramic materials based on yttria-stabilized tetragonal zirconia (Y-TZP).

DOI: 10.3403/30276374

[9] Q.F. Xie, Low Temperature Aging of Yttria-stabilized Tetragonal Zirconia Polycrystals Bioceramics, Master's Thesis, Tsinghua University, Beijing, 2010.
