Effects of Annealing Temperature on Morphology and Dielectric Property of BiFeO3 Films

Li Li Zhang; G.Q. Tan; Meng Cheng; Hui Jun Ren; Ao Xia

doi:10.4028/www.scientific.net/KEM.512-515.1736

Paper Titles

Fabrication of Li₂TiO₃ Ceramic Pebbles by Gelcasting Method
p.1717

Biomimic Enamel Remineralization by Hybridization Calcium- and Phosphate-Loaded Liposomes with Amelogenin-Inspired Peptide
p.1727

Preparation of Patterned BiFeO₃ Thin Films on the Functional Silicon Substrates Surface
p.1731

Effects of Annealing Temperature on Morphology and Dielectric Property of BiFeO₃ Films
p.1736

Preparation of Mineralized Electrospun PCL/Gelatin Scaffolds via Double Diffusion System
p.1740

Fabrication and Mechanical Properties of Chitosan-Montmorillonite Nano-Composite
p.1746

Matching Ability of Dental Shaded Zirconia Ceramics and Veneering Porcelain
p.1751

Influence of Low Temperature Aging on the Flexural Strength of Y-TZP Ceramics
p.1756

HomeKey Engineering MaterialsKey Engineering Materials Vols. 512-515Effects of Annealing Temperature on Morphology and...

Effects of Annealing Temperature on Morphology and Dielectric Property of BiFeO₃ Films

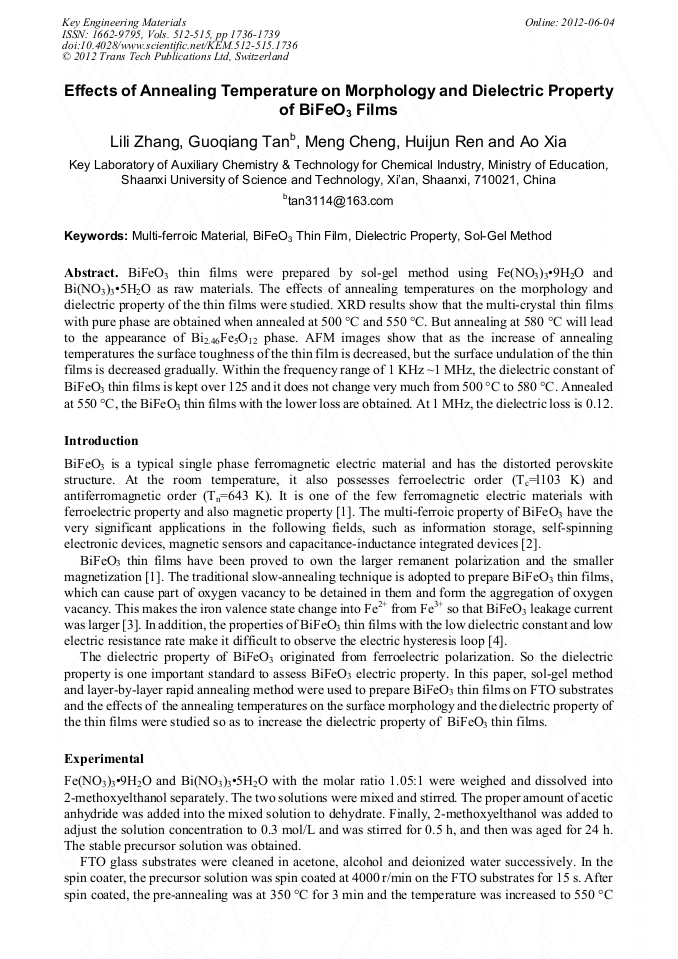

Abstract:

Fe(NO₃)₃•9H₂O and Bi(NO₃)₃•5H₂O were used as raw materials. BiFeO₃ thin films were prepared by sol-gel method. The effects of annealing temperatures on the morphology and dielectric property of the thin films were studied. XRD results show that the multi-crystal thin films with pure phase are obtained when annealed at 500°C and 550°C. But annealing at 580°C will lead to the appearance of Bi_2.46Fe₅O₁₂ phase.AFM images show that as the increase of annealing temperatures the surface toughness of the thin film is decreased, but the surface undulation of the thin films is decreased gradually. Within the frequency range of 1KHz~1MHz, the dielectric constant of BiFeO₃ thin films is kept over 125 and it does not change very much from 500°C to 580°C. Annealed at 550°C, the BiFeO₃ thin films with the lower loss are obtained. At 1MHz, the dielectric loss is 0.12.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 512-515)

Pages:

1736-1739

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.512-515.1736

Citation:

Cite this paper

Online since:

June 2012

Authors:

Li Li Zhang, G.Q. Tan, Meng Cheng, Hui Jun Ren, Ao Xia

Keywords:

BiFeO₃ Thin Film, Dielectric Property, Multi-Ferroic Material, Sol-Gel Method

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J Wang, J B Neaton, H Zheng, et al, Epitaxial BiFeO3 multiferroic thin film heterostructures, Science. 299 (2003) 1719-1722.

Google Scholar

[2] M Fiebig, Observation of coupled magnetic and electric domains, Nature. 419 (2002) 818.

Google Scholar

[3] S Iakovlev, C H Soherbeck, M Kuhnke, et al, Multiferroic BiFeO3 thin films processed via chemical solution deposition: Structural and electrical characterization, J. Appl. Phys. 97 (2005) 094901-094906.

DOI: 10.1063/1.1881776

Google Scholar

[4] Y P Wang, L Zhou, M F Zhang, et al, Room-temperature saturated ferroelectric polarization in BiFeO3 ceramics synthesized by rapid liquid phase sintering, J. Appl. Phys Lett. 84 (2004) 10.

DOI: 10.1063/1.1667612

Google Scholar
