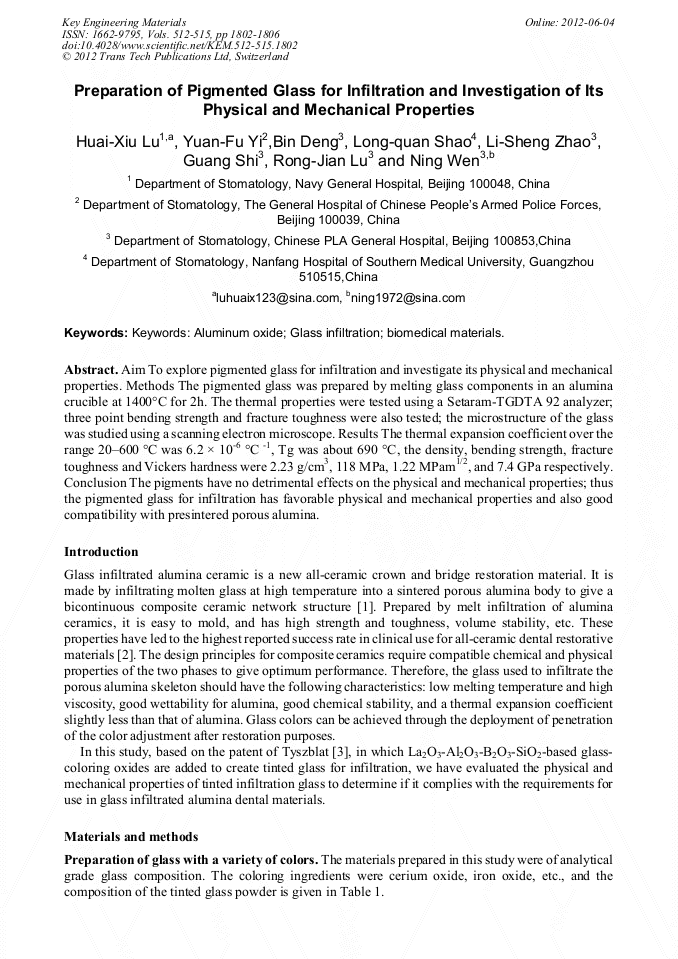

Preparation of Pigmented Glass for Infiltration and Investigation of its Physical and Mechanical Properties

Abstract:

Aim To explore pigmented glass for infiltration and investigate its physical and mechanical properties. Methods The pigmented glass was prepared by melting glass components in an alumina crucible at 1400°C for 2h. The thermal properties were tested using a Setaram-TGDTA 92 analyzer; three point bending strength and fracture toughness were also tested; the microstructure of the glass was studied using a scanning electron microscope. Results The thermal expansion coefficient over the range 20–600 °C was 6.2 × 10-6 °C -1, Tg was about 690 °C, the density, bending strength, fracture toughness and Vickers hardness were 2.23 g/cm3, 118 MPa, 1.22 MPam1/2, and 7.4 GPa respectively. Conclusion The pigments have no detrimental effects on the physical and mechanical properties; thus the pigmented glass for infiltration has favorable physical and mechanical properties and also good compatibility with presintered porous alumina.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1802-1806
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1802
• Online since: June 2012
• Authors: Huai Xiu Lu, Yuan Fu Yi, Bin Deng, Long Quan Shao, Li Sheng Zhao, Guang Shi, Rong Jian Lu, Ning Wen
• Keywords: Aluminium Oxide, Biomedical Materials, Glass Infiltration

References

[1] J.K. Guo, P.N. Chu, Design principles of composite ceramic materials , J Chinese Ceramic Society,24(1996) 7-10

[2] Segal BS, Retrospective assessment of 546 all-ceramic anterior and posterior crowns in a general practice, J Prosthet Dent,85(2001) 544-550

DOI: 10.1067/mpr.2001.115180

[3] Tyszbiat M, et al,Process for the preparation of a dental prosthesis by slight solid phase fritting of a metal oxide based infrastructure U.S. Plat. 1987,No.4772436.

[4] Zhou Y. Ceramic Materials Harbin Institute of Technology Press. Harbin(1995)65-74.

[5] Volf MB. Chemical approach to glass, Elsevier science, Amsterdam, The Netherlands, (1984).

[6] Bayer G, Thermal expansion anisotropy of oxide compounds, Proc Br Ceram Soc, ,l22(1973) 39-52.

[7] Wolf WD, Vaidya KJ, Mechanical properties and failure analysis of alumina-glass dental composite, J Am Ceram Soc, l79 (1996) 1769-1776.

[8] W. D. Introduction to Ceramics, China Building Industry Press, Beijing,(1984)115-120.

[9] Y.L. Zhang, Dental prostheses alumina-glass composite materials research Ph.D. thesis (Tsinghua University, Beijing, China,1998)

[10] Y.M. Liao, Y.K. Meng Y.L. Chao, Study of penetration of GI-II colored glass, West China Journal of Stomatology, 20 ( 2002), 7-9.
