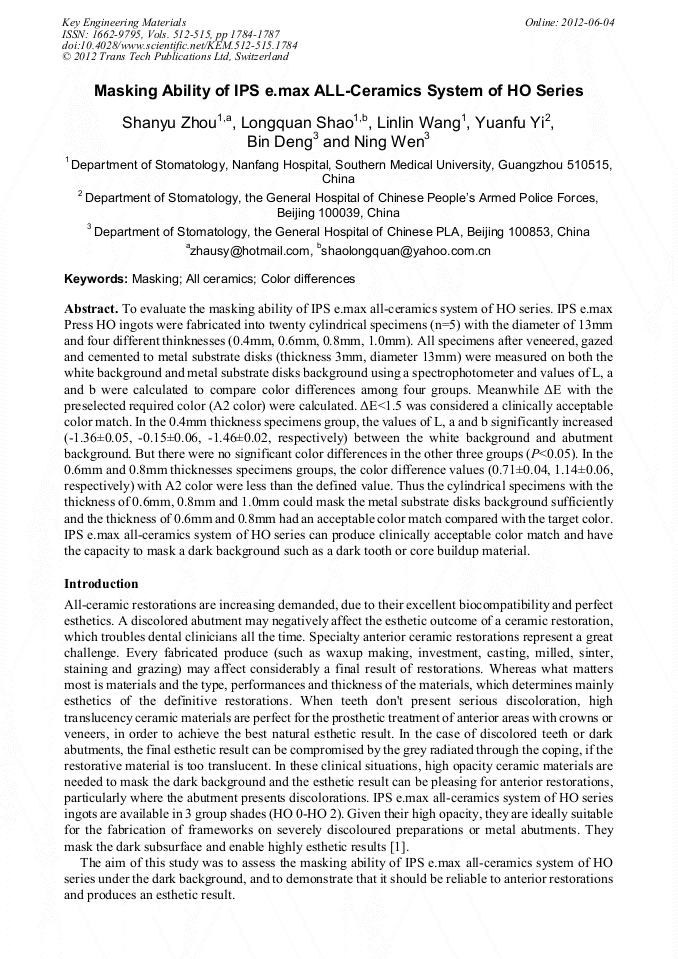

Masking Ability of IPS e.max ALL-Ceramics System of HO Series

Abstract:

To evaluate the masking ability of IPS e.max all-ceramics system of HO series. IPS e.max Press HO ingots were fabricated into twenty cylindrical specimens (n=5) with the diameter of 13mm and four different thinknesses (0.4mm, 0.6mm, 0.8mm, 1.0mm). All specimens after veneered, gazed and cemented to metal substrate disks (thickness 3mm, diameter 13mm) were measured on both the white background and metal substrate disks background using a spectrophotometer and values of L, a and b were calculated to compare color differences among four groups. Meanwhile ΔE with the preselected required color (A2 color) were calculated. ΔE<1.5 was considered a clinically acceptable color match. In the 0.4mm thickness specimens group, the values of L, a and b significantly increased (-1.36±0.05, -0.15±0.06, -1.46±0.02, respectively) between the white background and abutment background. But there were no significant color differences in the other three groups (P<0.05). In the 0.6mm and 0.8mm thicknesses specimens groups, the color difference values (0.71±0.04, 1.14±0.06, respectively) with A2 color were less than the defined value. Thus the cylindrical specimens with the thickness of 0.6mm, 0.8mm and 1.0mm could mask the metal substrate disks background sufficiently and the thickness of 0.6mm and 0.8mm had an acceptable color match compared with the target color. IPS e.max all-ceramics system of HO series can produce clinically acceptable color match and have the capacity to mask a dark background such as a dark tooth or core buildup material.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1784-1787
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1784
• Online since: June 2012
• Authors: Shan Yu Zhou, Long Quan Shao, Lin Lin Wang, Yuan Fu Yi, Bin Deng, Ning Wen
• Keywords: All Ceramics, Color-Difference, Masking

References

[1] M.N. Aboushelib, A. Dozic and J.K. Liem, Influence of framework color and layering technique on the final color of zirconia veneered restorations, Quintessence Int. 41 (2010) 84-89.

[2] D. Charisis, S.O. Koutayas, P. Kamposiora, et al., Spectrophotometric evaluation of the influence of different backgrounds on the color of glass-infiltrated ceramic veneers, Eur. J. Esthet. Dent. 1 (2006) 142-156.

[3] B. Deng, Y.F. Yi, L.Q. Shao, J.M. Tian, K.L. Hou, T.T. Ma, R.J. Lu and N. Wen, Relative translucency test of 3 all-ceramics system core material, Adv. Mater. Res. 177 (2011) 298-301.

DOI: 10.4028/www.scientific.net/amr.177.298

[4] L.Q. Shao, N. Wen, W.W. Zhang, Q. Liu and J.M. Tian, Influence of background color on the chromatic value of four all-ceramic system core materials, Adv. Mater. Res. 105 (2010) 546-548.

DOI: 10.4028/www.scientific.net/amr.105-106.546

[5] Y. Chaiyabutr, J.C. Kois, D. Lebeau and G. Nunokawa, Effect of abutment tooth color, cement color, and ceramic thickness on the resulting optical color of a CAD/CAM glass-ceramic lithium disilicate-reinforced crown, J. Prosthet. Dent. 5 (2011) 83-90.

DOI: 10.1016/s0022-3913(11)60004-8

[6] F. Giacomo, M. Roberto, M. Valentina and B. Giorgio, Anterior discolored teeth restored with procera all-ceramic restorations: a clinical evaluation of the esthetic outcome based on the thickness of the core selected, Eur. J. Esthet. Dent. 6 (2011) 76-86.

[7] X.P. Luo and L. Zhang, Effect of veneering techniques on color and translucency of Y-TZP, J. Prosthet. Dent. 19 (2010) 465-470.

DOI: 10.1111/j.1532-849x.2010.00610.x

[8] C.A. Volpato, S.Jr. Monteiro, M.C. de Andrada, M.C. Fredel and C.O. Petter, Optical influence of the type of illuminant, substrates and thickness of ceramic materials, Dent. Mater. 25 (2009) 87-93.

DOI: 10.1016/j.dental.2008.04.013
