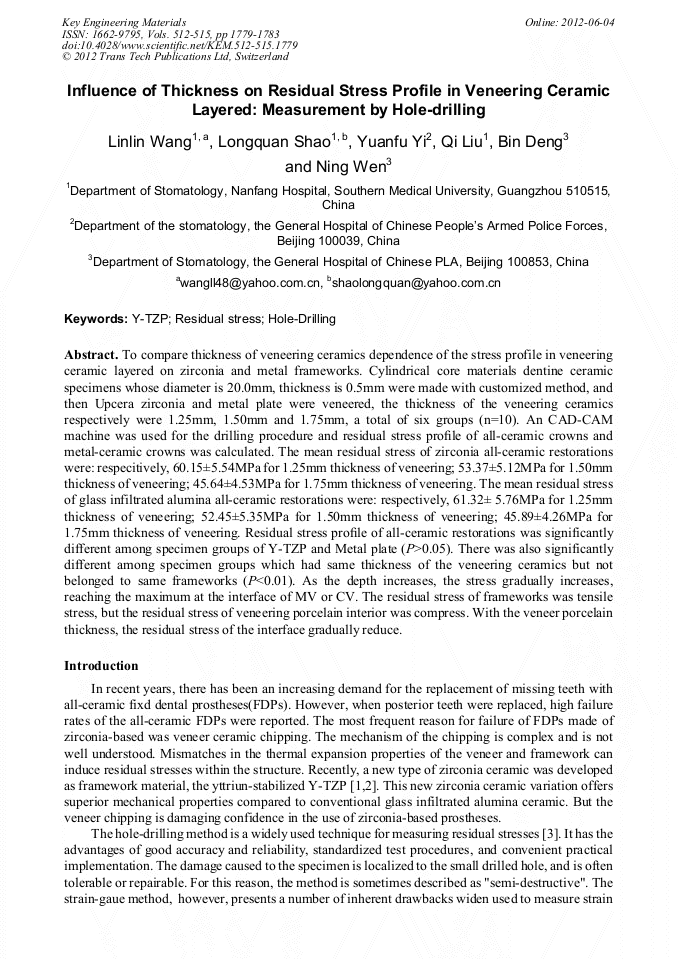

Influence of Thickness on Residual Stress Profile in Veneering Ceramic Layered: Measurement by Hole-Drilling

Abstract:

To compare thickness of veneering ceramics dependence of the stress profile in veneering ceramic layered on zirconia and metal frameworks. Cylindrical core materials dentine ceramic specimens whose diameter is 20.0mm, thickness is 0.5mm were made with customized method, and then Upcera zirconia and metal plate were veneered, the thickness of the veneering ceramics respectively were 1.25mm, 1.50mm and 1.75mm, a total of six groups (n=10). An CAD-CAM machine was used for the drilling procedure and residual stress profile of all-ceramic crowns and metal-ceramic crowns was calculated. The mean residual stress of zirconia all-ceramic restorations were: respecitively, 60.15±5.54MPa for 1.25mm thickness of veneering; 53.37±5.12MPa for 1.50mm thickness of veneering; 45.64±4.53MPa for 1.75mm thickness of veneering. The mean residual stress of glass infiltrated alumina all-ceramic restorations were: respectively, 61.32± 5.76MPa for 1.25mm thickness of veneering; 52.45±5.35MPa for 1.50mm thickness of veneering; 45.89±4.26MPa for 1.75mm thickness of veneering. Residual stress profile of all-ceramic restorations was significantly different among specimen groups of Y-TZP and Metal plate (P>0.05). There was also significantly different among specimen groups which had same thickness of the veneering ceramics but not belonged to same frameworks (P<0.01). As the depth increases, the stress gradually increases, reaching the maximum at the interface of MV or CV. The residual stress of frameworks was tensile stress, but the residual stress of veneering porcelain interior was compress. With the veneer porcelain thickness, the residual stress of the interface gradually reduce.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1779-1783
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1779
• Online since: June 2012
• Authors: Lin Lin Wang, Long Quan Shao, Yuan Fu Yi, Qi Liu, Bin Deng, Ning Wen
• Keywords: Hole-Drilling, Residual Stress, Y-TZP

References

[1] F. Jens, S. Bogna, T. Albert, C.H.F. Hämmerlea, Impact of thermal properties of veneering ceramics on the fracture load of layered Ce-TZP/A nanocomposite frameworks, Dent. Mater. 25 (2009) 326-330.

DOI: 10.1016/j.dental.2008.08.001

[2] L.Q. Shao, L.L. Wang, Q.Liu, B Deng, N. Wen, Measuring the infinite optical thickness of dentine porcelain of the IPS E.max, Key. Eng. Mater. 103 (2010) 349-353.

DOI: 10.4028/www.scientific.net/kem.492.349

[3] A.K. Mainjot, G.S. Schajer, A.J. Vanheusden, M.J. Sadoun, Residual stress measurement in veneering ceramic by hole-drilling, Dent. Mater. 27 (2011) 439-444.

DOI: 10.1016/j.dental.2010.12.002

[4] M. Hÿtch, F. Houdellier, F. Hüe, E.Snoeck, Nanoscale holographic interferometry for strain measurements in electronic devices, Nat. 453 (2008) 1086-1089.

DOI: 10.1038/nature07049

[5] P.G. Ifju, B. Han, Recent Applications of Moiré Interferometry. Experimental Mechanics Experimental, Mechanics. 50 (2010) 1129-1147.

DOI: 10.1007/s11340-010-9404-9

[6] T.C. Chen, W.Q. Yin, Investigation of shrinkage behaviour and cracks in cement paste using moiré interferometry, J. Eng. 45 (2010) 19-31.

DOI: 10.1243/03093247jsa576

[7] P.H. DeHoff , K.J. Anusavice, Viscoelastic finite element stress analysis of the thermal compatibility of dental bilayer ceramic systems, Int. J. Prosthodont. 22 (2009) 56-61.

[8] M. Eisenburger, T. Mache, L. Borchers, S. Meike, Fracture stability of anterior zirconia crowns with different core designs and veneered using the layering or the press-over technique, Euro. J. Oral. Sci 119 (2011) 253-257.

DOI: 10.1111/j.1600-0722.2011.00829.x
