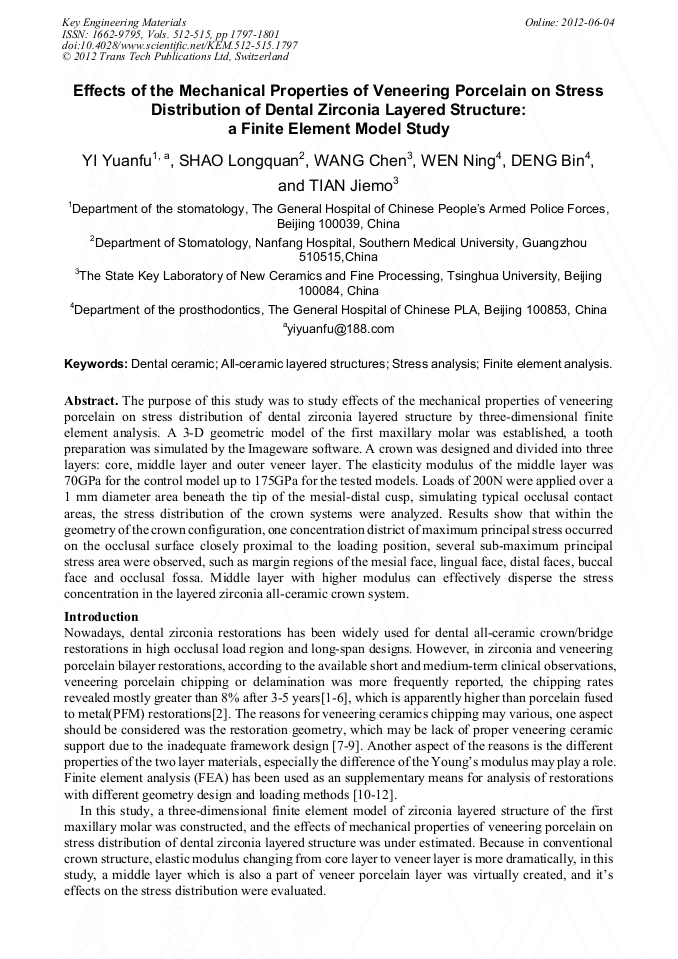

Effects of the Mechanical Properties of Veneering Porcelain on Stress Distribution of Dental Zirconia Layered Structure: A Finite Element Model Study

Abstract:

The purpose of this study was to study effects of the mechanical properties of veneering porcelain on stress distribution of dental zirconia layered structure by three-dimensional finite element analysis. A 3-D geometric model of the first maxillary molar was established, a tooth preparation was simulated by the Imageware software. A crown was designed and divided into three layers: core, middle layer and outer veneer layer. The elasticity modulus of the middle layer was 70GPa for the control model up to 175GPa for the tested models. Loads of 200N were applied over a 1 mm diameter area beneath the tip of the mesial-distal cusp, simulating typical occlusal contact areas, the stress distribution of the crown systems were analyzed. Results show that within the geometry of the crown configuration, one concentration district of maximum principal stress occurred on the occlusal surface closely proximal to the loading position, several sub-maximum principal stress area were observed, such as margin regions of the mesial face, lingual face, distal faces, buccal face and occlusal fossa. Middle layer with higher modulus can effectively disperse the stress concentration in the layered zirconia all-ceramic crown system.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1797-1801
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1797
• Online since: June 2012
• Authors: Yuan Fu Yi, Long Quan Shao, Chen Wang, Ning Wen, Bin Deng, Jie Mo Tian
• Keywords: All-Ceramic Layered Structures, Dental Ceramic, Finite Element Analysis (FEA), Stress Analysis

References

[1] Z. Özkurt, E. Kazazoğlu, Clinical Success of Zirconia in Dental Applications, J. Prosthodont. 19 (2010)64-68.

[2] R.P. Christensen, B.J. Ploeger, A clinical comparison of zirconia, metal and alumina fixed-prosthesis frameworks veneered with layered or pressed ceramic:A three-year report, J. Am. Dent. Assoc. 141 (2010)1317-1329.

DOI: 10.14219/jada.archive.2010.0076

[3] Vult. Von. Steyern P, P.Carlson, K. Nilner, All-ceramic fixed partial dentures designed according to the DC-Zirkon technique. A 2-year clinical study, J. Oral. Rehabil. 32 (2005)180-187.

DOI: 10.1111/j.1365-2842.2004.01437.x

[4] I.Sailer, A.Fehér, F.Filser, L.J. Gauckler, H. Lüthy and C.H. Hämmerle, Five-year clinical results of zirconia frameworks for posterior fixed partial dentures, Int. J. Prosthodont. 20 (2007)383-388.

[5] A.J. Raigrodski, G.J. Chiche, N. Potiket, J.L. Hochstedler, S.E. Mohamed, S.Billiot and D.E. Mercante, The efficacy of posterior three-unit zirconium-oxide-based ceramic fixed partial dental prostheses: a prospective clinical pilot study, J.Prosthet. Dent. 96 (2006)237-244.

DOI: 10.1016/j.prosdent.2006.08.010

[6] J. Tinschert, K.A. Schulze, G. Natt, P. Latzke, N. Heussen and H. Spiekermann, Clinical behavior of zirconia-based fixed partial dentures made of DC-Zirkon: 3-year results, Int. J. Prosthodont. 21 (2008)217-222.

DOI: 10.1055/s-2007-970226

[7] B.W. Marchack, Y. Futatsuki, C.B. Marchack and S.N. White, Customization of milled zirconia copings for all-ceramic crowns: a clinical report, J. Prosthet. Dent. 99 (2008) 169-173.

DOI: 10.1016/s0022-3913(08)00028-0

[8] E.A. Bonfante, da. N.R. Silva, P.G. Coelho, D.E. Bayardo-González, V.P. Thompson and G.Bonfante, Effect of framework design on crown failure, Eur. J. Oral. Sci. 117 (2009)194-199.

DOI: 10.1111/j.1600-0722.2008.00608.x

[9] N.R. Silva, E.A. Bonfante, B.T. Rafferty, R.A. Zavanelli , E.D. Rekow, V.P. Thompson and P.G. Coelho, Modified Y-TZP Core Design Improves All-ceramic Crown Reliability, J. Dent. Res. 90 (2011)104-108.

DOI: 10.1177/0022034510384617

[10] P.G. Coelho, N.R. Silva, V.P. Thompson, D. Rekow and G. Zhang, Effect of Proximal Wall Height on All-Ceramic Crown Core Stress Distribution: A Finite Element Analysis Study, Int. J. Prosthodont. 22 (2009)78-86.

[11] E.D. Rekow, G. Zhang, V. Thompson, J.W. Kim, P. Coehlo and Y. Zhang, Effects of Geometry on Fracture Initiation and Propagation in All-Ceramic Crowns, J. Biomed. Mater. Res. Part B: Appl Biomater. 88 (2009)436-446.

DOI: 10.1002/jbm.b.31133

[12] B.T. Rafferty, M.N. Janal, R.A. Zavanelli, N.R. Silva, E.D. Rekow, V.P. Thompson and P.G. Coelho, Design features of a three-dimensional molar crown and related maximum principal stress. A finite element model study, Dent. Mater. 26 (2010)156-163.

DOI: 10.1016/j.dental.2009.09.009

[13] N.D. Ruse, Propagation of erroneous data for the modulus of elasticity of periodontal ligament and gutta percha in FEM/FEA papers: a story of broken links, Dent. Mater. 24 (2008)1717-1719.

DOI: 10.1016/j.dental.2008.04.006

[14] I.A. Poiate, de. A.B. Vasconcellos, de. R.B. Santana and E.Poiate, Three-dimensional stress distribution in the human periodontal ligament in masticatory, parafunctional, and trauma loads: finite element analysis, J.Periodontol. 80 (2009)1859-1867.

DOI: 10.1902/jop.2009.090220

[15] Y. Zhang, H. Chai, B.R. Lawn, Graded structures for all-ceramic restorations, J. Dent. Res. 89(2010)417-421.

DOI: 10.1177/0022034510363245

[16] Y. Zhang, J.W. Kim, Graded zirconia glass for resistance to veneer fracture, J. Dent. Res. 89 (2010) 1057-1062.

DOI: 10.1177/0022034510375289
