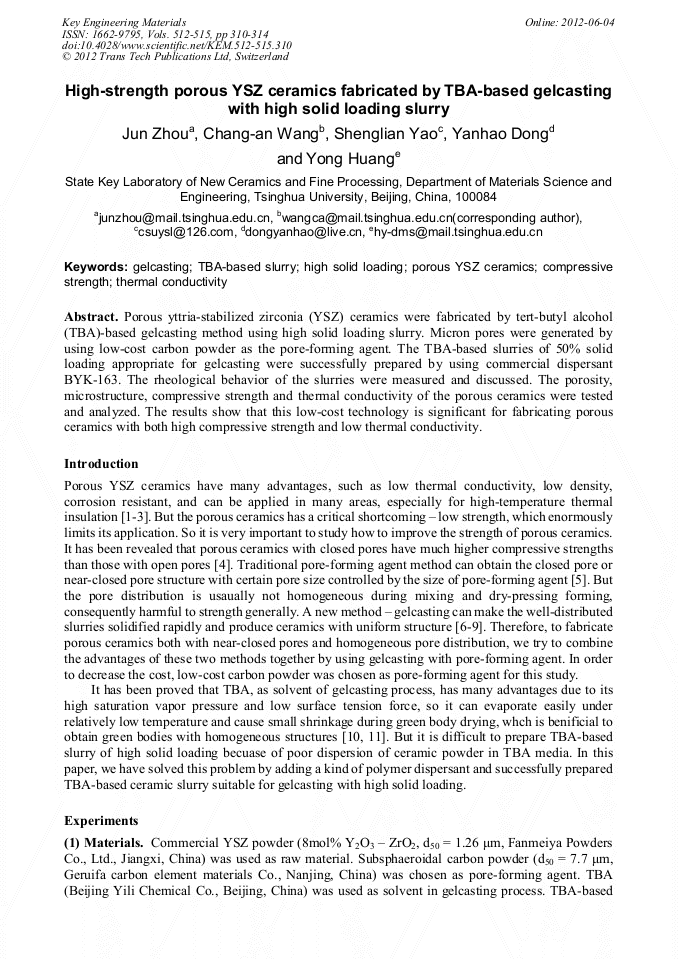

High-Strength Porous YSZ Ceramics Fabricated by TBA-Based Gelcasting with High Solid Loading Slurry

Abstract:

Porous yttria-stabilized zirconia (YSZ) ceramics were fabricated by tert-butyl alcohol (TBA)-based gelcasting method using high solid loading slurry. Micron pores were generated by using low-cost carbon powder as the pore-forming agent. The TBA-based slurries of 50% solid loading appropriate for gelcasting were successfully prepared by using commercial dispersant BYK-163. The rheological behavior of the slurries were measured and discussed. The porosity, microstructure, compressive strength and thermal conductivity of the porous ceramics were tested and analyzed. The results show that this low-cost technology is significant for fabricating porous ceramics with both high compressive strength and low thermal conductivity.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 310-314
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.310
• Online since: June 2012
• Authors: Jun Zhou, Chan Gan Wang, Sheng Lian Yao, Yan Hao Dong, Yong Huang
• Keywords: Compressive Strength, Gelcasting, High Solid Loading, Porous YSZ Ceramics, TBA-Based Slurry, Thermal Conductivity (TC)

References

[1] L.F. Hu, C.A. Wang, Effect of sintering temperature on compressive strength of porous yttria-stabilized zirconia ceramics, Ceram. Int. 36 (2010) 1697–1701.

DOI: 10.1016/j.ceramint.2010.03.009

[2] K.S. Ravichandran, K. An, R.E. Dutton, S.L. Semiatin, Thermal conductivity of plasma-sprayed monolithic and multilayer coatings of alumina and yttria-stabilized zirconia, J. Am. Ceram. Soc. 82 (1999) 673-682.

DOI: 10.1111/j.1151-2916.1999.tb01816.x

[3] L.B. Garrido, M.P. Albano, K.P. Plucknett, L. Genova, Effect of starch filler content and sintering temperature on the processing of porous 3Y-ZrO2 ceramics, J. Mater. Process. Tech. 209 (2009) 590-598.

DOI: 10.1016/j.jmatprotec.2008.02.074

[4] A.R. Studart, U.T. Gonzenbach, et al., Processing routes to macroporous ceramics: a review, J. Am Ceram Soc, 89 (2006) 1771–1789.

DOI: 10.1111/j.1551-2916.2006.01044.x

[5] A.K. Gain, H.Y. Song, B.T. Lee, Microstructure and mechanical properties of porous yttria stabilized zirconia ceramic using poly methyl methacrylate powder, Scripta Mater. 54 (2006) 2081–2085.

DOI: 10.1016/j.scriptamat.2006.03.009

[6] A.C. Young, O.O. Omatete, M.A. Janney, P.A. Menchhofer, Gelcasting of alumina, J. Am. Ceram. Soc. 74 (1991) 612–618.

DOI: 10.1111/j.1151-2916.1991.tb04068.x

[7] O.O. Omateta, M.A. Janney, R.A. Strehlow, Gelcasting – a new ceramic forming process, Ceram. Bull. 70 (1991) 1641–1649.

[8] S.F. Wang, C.A. Wang, J.L. Sun, L.Z. Zhou, Y. Huang, Fabrication, structure and properties of porous SiC ceramics with high porosity and high strength, Adv. Mater. Res. 105-106 (2010) 608-611.

DOI: 10.4028/www.scientific.net/amr.105-106.608

[9] Y.F. Gu, X.Q. Liu, G.Y. Meng, D.K. Peng, Porous YSZ ceramics by water-based gelcasting, Ceram. Int. 25 (1999) 705–709.

DOI: 10.1016/s0272-8842(99)00005-x

[10] R.F. Chen, Y. Huang, C.A. Wang, J.Q. Qi, Ceramics with ultra-low density fabricated by gelcasting: an unconventional view, J. Am. Ceram. Soc. 90 (2007) 3424–3429.

DOI: 10.1111/j.1551-2916.2007.01915.x

[11] L.F. Hu, C.A. Wang, Porous yttria-stabilized zirconia ceramics with ultralow thermal conductivity, J. Mater. Sci. 45 (2010) 3242–3246.

DOI: 10.1007/s10853-010-4331-9

[12] M. Menon, S. Decourcelle, S. Ramousse, P.H. Larsen, Stabilization of ethanol-based alumina suspensions, J. Am. Ceram. Soc. 89 (2006) 457–464.

DOI: 10.1111/j.1551-2916.2005.00744.x
