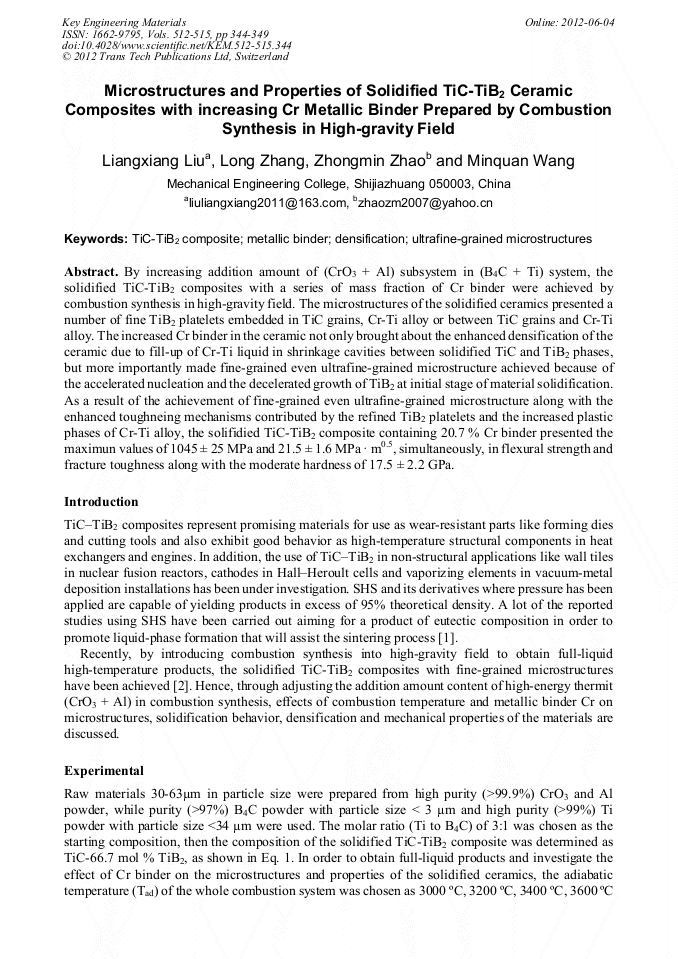

Microstructures and Properties of Solidified TiC-TiB₂ Ceramic Composites with Increasing Cr Metallic Binder Prepared by Combustion Synthesis in High-Gravity Field

Abstract:

By increasing addition amount of (CrO₃ + Al) subsystem in (B₄C + Ti) system, the solidified TiC-TiB₂ composites with a series of mass fraction of Cr binder were achieved by combustion synthesis in high-gravity field. The microstructures of the solidified ceramics presented a number of fine TiB₂ platelets embedded in TiC grains, Cr-Ti alloy or between TiC grains and Cr-Ti alloy. The increased Cr binder in the ceramic not only brought about the enhanced densification of the ceramic due to fill-up of Cr-Ti liquid in shrinkage cavities between solidified TiC and TiB₂ phases, but more importantly made fine-grained even ultrafine-grained microstructure achieved because of the accelerated nucleation and the decelerated growth of TiB₂ at initial stage of material solidification. As a result of the achievement of fine-grained even ultrafine-grained microstructure along with the enhanced toughneing mechanisms contributed by the refined TiB₂ platelets and the increased plastic phases of Cr-Ti alloy, the solifidied TiC-TiB₂ composite containing 20.7 % Cr binder presented the maximun values of 1045 ± 25 MPa and 21.5 ± 1.6 MPa • m ^0.5, simultaneously, in flexural strength and fracture toughness along with the moderate hardness of 17.5 ± 2.2 GPa.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 344-349
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.344
• Online since: June 2012
• Authors: Liang Xiang Liu, Long Zhang, Zhong Min Zhao, Min Quan Wang
• Keywords: Densification, Metallic Binder, TiC-TiB₂ Composite, Ultrafine Grained Microstructure

References

[1] D. Vallauri, I.C. AtIas, A. Adrian, TiC-TiB2 composites: a review of phase relationships, processing and properties, J. Eur. Ceram. Soc. 28 (2008) 1697-1713.

DOI: 10.1016/j.jeurceramsoc.2007.11.011

[2] Z. Zhao, L. Zhang, Y. Song, W. Wang, Microstructures and properties of large bulk solidified TiC-TiB2 composites prepared by combustion synthesis under high gravity, Scripta Mater. 61 (2009) 281-284.

DOI: 10.1016/j.scriptamat.2009.04.002

[3] Z.A. Munir, U. Anselmi-Tamburini, Self-propagation exothermic reaction: the synthesis of high- temperature materials by combustion, Mater. Sci. Rep. 3 (1989) 277-365.

DOI: 10.1016/0920-2307(89)90001-7

[4] A. Makino, Heterogeneous flame propagation in the self-propagating, high-temperature, synthesis (SHS) process in multi-layer foils: theory and experimental comparisons, Combust. Flame. 134 (2003) 273- 288.

DOI: 10.1016/s0010-2180(03)00090-7

[5] L.L. Wang, Z.A. Munir, Y.M. Maximov, Review thermite reactions: their utilization in the synthesis and processing of materials, J. Mater. Sci. 28 (1993) 3693- 3708.

DOI: 10.1007/bf00353167

[6] J. Llorca, V.M. Orera, Directionally solidified eutectic ceramic oxides, Prog. Mater. Sci. 51 (2006) 711-809.

DOI: 10.1016/j.pmatsci.2005.10.002

[7] J.H. Gong, Frauture Mechanics of Ceramics, first ed., Tsinghua University Press, Beijing, 2001.
