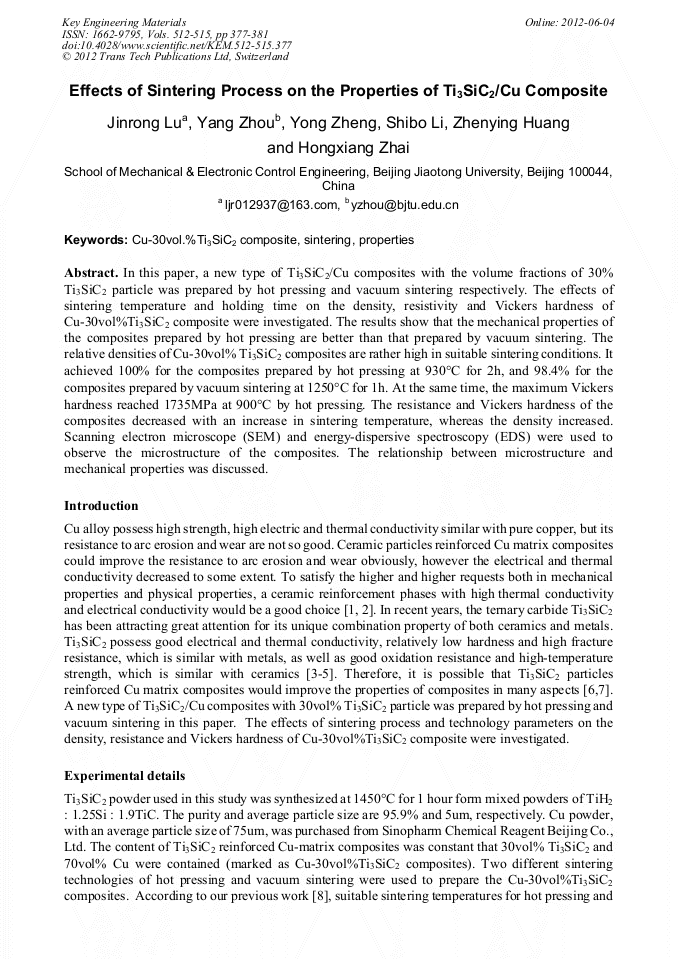

Effects of Sintering Process on the Properties of Ti₃SiC₂/Cu Composite

Abstract:

In this paper, a new type of Ti₃SiC₂/Cu composites with the volume fractions of 30% Ti₃SiC₂ particle was prepared by hot pressing and vacuum sintering respectively. The effects of sintering temperature and holding time on the density, resistance and Vickers hardness of Cu-30vol%Ti₃SiC₂ composite were investigated. The results show that the mechanical properties of the composites prepared by hot pressing are better than that prepared by vacuum sintering. The relative densities of Cu-30vol% Ti₃SiC₂ composites are rather high in suitable sintering conditions. It achieved 100% for the composites prepared by hot pressing at 930°C for 2h, and 98.4% for the composites prepared by vacuum sintering at 1250°C for 1h. At the same time, the maximum Vickers hardness reached 1735MPa at 900°C by hot pressing. The resistance and Vickers hardness of the composites decreased with an increase in sintering temperature, whereas the density increased. Scanning electron microscope (SEM) and energy-dispersive spectroscopy (EDS) were used to observe the microstructure of the composites. The relationship between microstructure and mechanical properties was discussed.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 377-381
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.377
• Online since: June 2012
• Authors: Jin Rong Lu, Yang Zhou, Yong Zheng, Shi Bo Li, Zhen Ying Huang, Hong Xiang Zhai
• Keywords: Cu-30vol.%Ti₃SiC₂ Composite, Property Analysis, Sintering

References

[1] S.Y. Zhang, F.Q. Meng, Y.Y. Chen, Q.C.Li, Research Progress of Metal Matrix Composites Reinforced with Particles, Materials Review.1999, NO.2, 66-71.

[2] K. Han, J.D. Embury, J.R. Sims, et al., The fabrication, properties and microstructure of Cu–Ag and Cu–Nb composite conductors, Mater. Sci. Eng., A. 267 (1999) 99-114.

DOI: 10.1016/s0921-5093(99)00025-8

[3] M.W. Barsoum, T.El-Raghy, Synthesis and Characterization of a Remarkable Ceramic: Ti3SiC2, J. Am. Ceram. Soc. 79(1996) 1953.

[4] Z.F. Zhang, Z.M. Sun, H. Hashimoto, T. Abe, Application of pulse discharge sintering (PDS) technique to rapid synthesis of Ti3SiC2 from Ti/Si/C powders, J. Eur. Ceram. Soc. 22 (2002) 2957.

DOI: 10.1016/s0955-2219(02)00044-4

[5] B.J. Kooi, R.J. Poppen, N.J.M. Carvalho, et al., Ti3SiC2: A damage tolerant ceramic studied with nano-indentations and transmission electron microscopy, Acta Mater.. 51 (2003) 2859.

DOI: 10.1016/s1359-6454(03)00091-0

[6] J.Zhang, J.Y. Wang, Y.C. Zhou. Structure stability of Ti3AlC2 in Cu and microstructure evolution of Cu–Ti3AlC2 composites, Acta Mater.. 55(2007)4381-4390.

DOI: 10.1016/j.actamat.2007.03.033

[7] H.P. Guo, J.Zhang, F.Z.Li, J.J. Yin, Y.C. Zhou, Surface strengthening of Ti3SiC2 through magnetron sputtering Cu and subsequent annealing, J. Eur. Ceram. Soc.. 28(2008)2099-2107.

DOI: 10.1016/j.jeurceramsoc.2008.02.011

[8] J.J. Sun, Y.Zhou, J.R.Lu, S.B.Li, Z.Y. Huang, H.X. Zhai, Preparation and properties of Ti3SiC2/Cu composites, Mater. Sci. Eng. Powder Metallurgy. Aug.2011,Vol.16 No.4,587-590.

[9] Y.C. Zhou, W.L.Gu, Chemical reaction and stability of Ti3SiC2 in Cu during high-temperature processing of Cu/Ti3SiC2 composites, Z. Metallkd., 95(1)50-56(2004).
