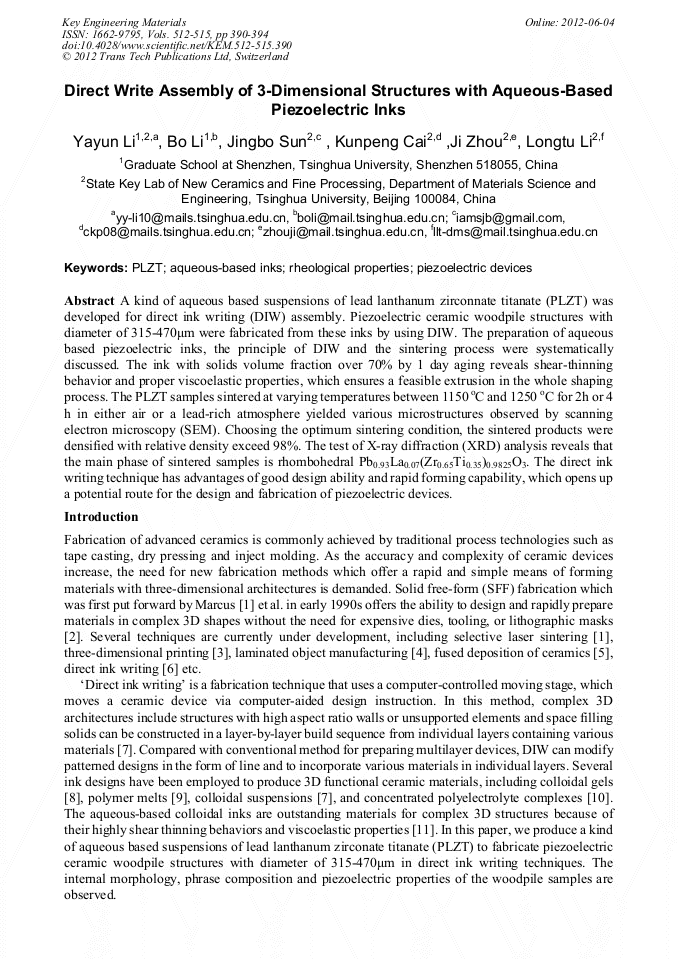

Direct Write Assembly of 3-Dimensional Structures with Aqueous-Based Piezoelectric Inks

Abstract:

A kind of aqueous based suspensions of lead lanthanum zirconnate titanate (PLZT) was developed for direct ink writing (DIW) assembly. Piezoelectric ceramic woodpile structures with diameter of 315-470μm were fabricated from these inks by using DIW. The preparation of aqueous based piezoelectric inks, the principle of DIW and the sintering process were systematically discussed. The ink with solids volume fraction over 70% by 1 day aging reveals shear-thinning behavior and proper viscoelastic properties, which ensures a feasible extrusion in the whole shaping process. The PLZT samples sintered at varying temperatures between 1150 oC and 1250 oC for 2h or 4 h in either air or a lead-rich atmosphere yielded various microstructures observed by scanning electron microscopy (SEM). Choosing the optimum sintering condition, the sintered products were densified with relative density exceed 98%. The test of X-ray diffraction (XRD) analysis reveals that the main phase of sintered samples is rhombohedral Pb0.93La0.07(Zr0.65Ti0.35)0.9825O3. The direct ink writing technique has advantages of good design ability and rapid forming capability, which opens up a potential route for the design and fabrication of piezoelectric devices.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 390-394
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.390
• Online since: June 2012
• Authors: Ya Yun Li, Bo Li, Jing Bo Sun, Kun Peng Cai, Ji Zhou, Long Tu Li
• Keywords: Aqueous-Based Inks, PLZT, Rheological Property, Woodpile Structures

References

[1] H.L. Marcus, J.J. Beaman, J.W. Barlow, et al., Solid freeform fabrication-powder processing, Am. Ceram. Soc. Bull. 69 (1990) 1030-1031

[2] J.A. Lewis, J.E. Smay, et al., Direct writing of three-dimensional ceramics structures J. Am. Ceram. Soc. 89 (2006) 3599-3609

[3] J. Yoo, M. Cima, Fabrication and microstructural control of advanced ceramics components by 3D printing, Ceram. Eng. Sci. Proc. 16 (1995) 755-762

[4] C. Griffin, J. Daufenbach, S. McMillin, Desk-top manufacturing-lom vs pressing, Am. Ceram. Soc. Bull. 73 (1994) 109

[5] A. Safari, E.K. Akdogan, Rapid prototyping of novel piezoelectric composites, Ferroelectrics, 331 (2006) 153-179

DOI: 10.1080/00150190600737727

[6] J. Cesarano, R. Segalman, P. Calvert, Robocasting provides moldless fabrication from slurry deposition, Ceram. Ind.148 (1998) 94.

[7] S.L. Morissette, et al., Direct-write fabrication of Pb(Nb, Zr,Ti)O3 devices: influence of paste rheology on print morphology and component properties, J. Am. Ceram. Soc. 84 (2001) 2462-68

DOI: 10.1111/j.1151-2916.2001.tb01036.x

[8] J.E. Smay, G. Graston, R.F. Shepherd, J.A. Lewis, Directed colloidal assembly of 3D periodic structures, Adv. Mater. 14 (2002) 1279

DOI: 10.1002/1521-4095(20020916)14:18<1279::aid-adma1279>3.0.co;2-a

[9] G.M. Lous, I.A. Cornejo, et al., Fabrication of piezoelectric ceramics-ploymer composites transducers using fused deposition of ceramics, J. Am. Ceram. Soc. 83 (2000) 124

[10] G.M. Gratson, M. Xu, J.A. Lewis, Direct writing of 3D webs, Nature, 428 (2004) 386

DOI: 10.1038/428386a

[11] J.A. Lewis, Direct ink writing of 3D functional materials, Adv. Funct. Mater. 16 (2006) 2193-2204

DOI: 10.1002/adfm.200600434

[12] K. Cai, J. Sun, et al., Direct-writing construction of layered meshes from nanoparticles-vaseline composite inks: rheological properties and structures, Appl. Phys. A 102 (2010) 501-507

DOI: 10.1007/s00339-010-5955-y

[13] J.N. Hanson Shepherd, S.T. Parker, et al., 3D Microperiodic Hydrogel Scaffolds for Robust Neuronal Cultures, Adv. Funct. Mater. 21 (2011) 47-54

DOI: 10.1002/adfm.201001746

[14] J.E. Smay, B.A. Tuttle, J.A. Lewis, Piezoelectric properties of 3-X periodic Pb(ZrxTi1-x)O3 polymer composites, J.Appl.Phys. 92 (2002) 6119-6127

DOI: 10.1063/1.1513202
