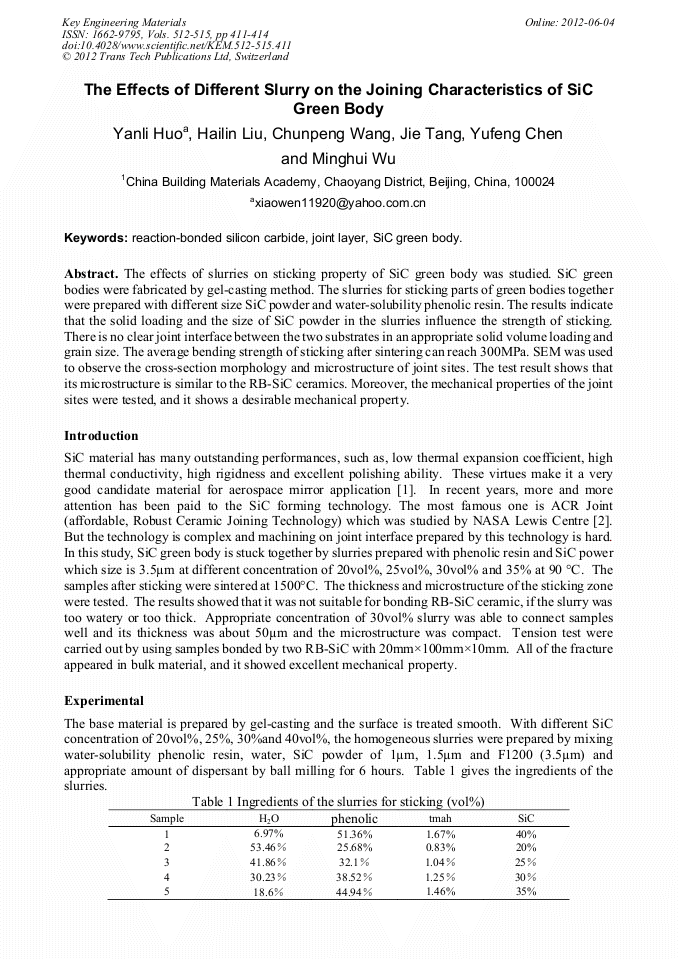

The Effects of Different Slurry on the Joining Characteristics of SiC Green Body

Abstract:

Experiments were carried out to join reaction-bonded silicon carbide (RBSC) ceramic in green body. SiC green bodies were fabricated by gel-casting method. The slurries for joint were prepared by different grain size of SiC. The results indicate the solid loading and the grain size of SiC influence the strength of welding. There is no clear welding interface between the two substrates in an appropriate solid volume loading and grain size. The average bending strength of welding after sintering can reach 300MPa. SEM was used to observe the cross-section morphology and microstructure of binding sites. The test result shows that its microstructure is similar to the RB-SiC ceramic. The mechanical properties of binding sites were tested. The result shows a desirable mechanical property.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 411-414
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.411
• Online since: June 2012
• Authors: Yan Li Huo, Hai Lin Liu, Chun Peng Wang, Jie Tang, Yu Feng Chen, Ming Hui Wu
• Keywords: Joint Layer, Reaction-Bonded Silicon Carbide, SiC Green Body

References

[1] M. Singh, J.A. Salem, Mechanical properties and microstructure of biomorphic silicon carbide ceramics fabricated from wood precursors, J. Eur. Ceram. Soc. 22 (2002) 2709–2717.

DOI: 10.1016/s0955-2219(02)00136-x

[2] M. Singh, in: A new approach to joining of silicon carbide-based materials for high temperature applications, edited by Techna, Faenza, volume 13-17 of Advances in Science and Technology (1999).

[3] B. V. Cockeram, Flexural strength and shear strength of silicon carbide to silicon carbide joints fabricated by a molybdenum diffusion bonding technique, J. Am. Ceram. Soc. 88 (2005) 1892-1899.

DOI: 10.1111/j.1551-2916.2005.00381.x
