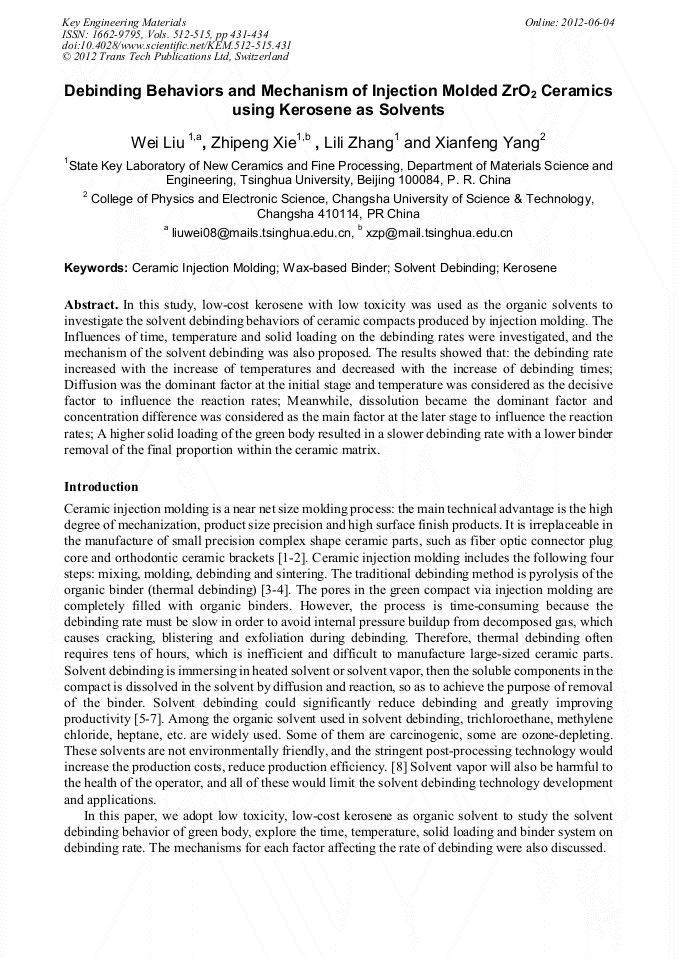

Debinding Behaviors and Mechanism of Injection Molded ZrO₂ Ceramics Using Kerosene as Solvents

Abstract:

In this study, low-cost kerosene with low toxicity was used as organic solvent to research the solvent debinding behavior of ceramic compact produced by injection molding. The Influences of time, temperature and solid loading on the debinding rate were investigated, the mechanism of which was also discussed. The results show that: The debinding rate increased with increasing temperature and decreased with extended time; Diffusion is the controlling factor at the initial stage and temperature was the main factor influencing the reaction rate; Dissolution is the controlling factor and concentration difference was the main factor at the later stage; The higher the solid loading of green body, the slower the debinding rate and the lower the final proportion of binder removal.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 431-434
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.431
• Online since: June 2012
• Authors: Wei Liu, Zhi Peng Xie, Li Li Zhang, Xian Feng Yang
• Keywords: Ceramic Injection Molding, Kerosene, Solvent Debinding, Wax-Based Binder

References

[1] W. Liu, Z. P. Xie, G. W. Liu, et al, Novel Preparation of Translucent Alumina Ceramics Induced by Doping Additives via Chemical Precipitation Method, J. Am. Ceram. Soc. 94 (2011) 3211-3215.

DOI: 10.1111/j.1551-2916.2011.04796.x

[2] W. Liu, Z. P. Xie, X. F. Yang, et al, Surface Modification Mechanism of Stearic Acid to Ceramic W. Powders Induced by Ball Milling for Water-Based Injection Molding, J. Am. Ceram. Soc. 94 (2011) 1327-30.

DOI: 10.1111/j.1551-2916.2011.04475.x

[3] W. Liu, Z. P. Xie, T. Z. Bo, et al, Injection molding of surface modified powders with high solid loadings: A case for fabrication of translucent alumina ceramics, J. Eur. Ceram. Soc., 31(2011) 1611-17.

DOI: 10.1016/j.jeurceramsoc.2011.03.003

[4] W. Liu, T. Z. Bo, Z. P. Xie, et al, Fabrication of injection moulded translucent alumina ceramics via pressureless sintering, Adv. Appl. Ceram., 110(2011) 251-54

DOI: 10.1179/1743676111y.0000000005

[5] W. W. Yang and M. H. Hon, In situ evaluation of dimensional variations during water extraction from alumina injection-moulded parts, J. Eur. Ceram. Soc., 20 (2000) 851-58.

DOI: 10.1016/s0955-2219(99)00221-6

[6] G. Bandyopadhyay and K. W. French, Injection-molded ceramics: Critical aspects of the binder removal process and component fabrication, J. Eur. Ceram. Soc., 11 (1993) 23-34.

DOI: 10.1016/0955-2219(93)90055-v

[7] K. S. Hwang and T. H. Tsou, Thermal Debinding of Powder Injection Molded Parts - Observations and Mechanisms, Metall. Trans. A, 23 (1992) 2775-82.

DOI: 10.1007/bf02651756

[8] J. Woodthorpe, M. J. Edirisinghe, and J. R. G. Evans, Properties of Ceramic Injection-Molding Formulations .3. Polymer Removal, J. Mater. Sci., 24 (1989)1038-48.

DOI: 10.1007/bf01148795
