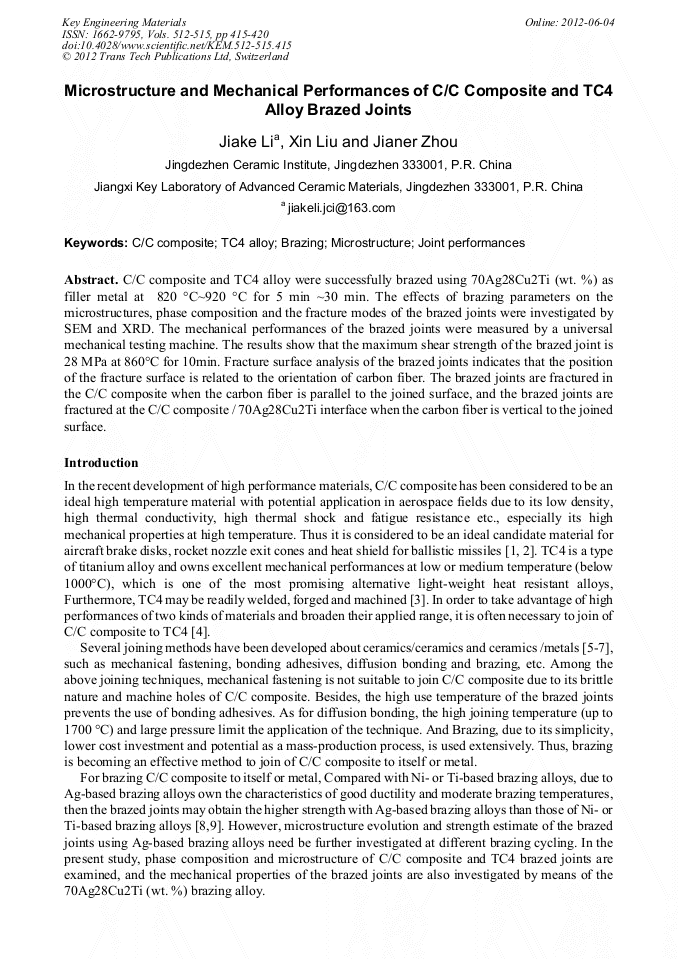

Microstructure and Mechanical Performances of C/C Composite and TC4 Alloy Brazed Joints

Abstract:

C/C composite and TC4 alloy were successfully brazed using 70Ag28Cu2Ti (wt. %) as filler metal at brazing temperature 820 º°C~920 °C for soaking time 5 min ~30 min. The effects of brazing parameters on the microstructures and phase composition and the fracture modes of the brazed joints were investigated by SEM and XRD. The mechanical performances of the brazed joints were measured by a universal mechanical testing machine. The results show that the maximum shear strength of the brazed joint is 28 MPa at brazing temperature 860°C and soaking time 10min. Fracture surface analysis of the brazed joints indicates that the position of the fracture surface is related to the orientation of carbon fiber. The brazed joints are fractured in the C/C composite when the carbon fiber is parallel to the joined surface, and the brazed joints are fractured at the C/C composite / 70Ag28Cu2Ti interface when the carbon fiber is vertical to the joined surface.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 415-420
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.415
• Online since: June 2012
• Authors: Jia Ke Li, Xin Liu, Jian Er Zhou
• Keywords: Brazing, C/C Composite, Joint Performances, Microstructure, TC4 Alloy

References

[1] M.Singh, R.Asthana, Characterization of brazed joints of C-C composite to Cu-clad-Molybdenum, Compos. Sci. Technol. 68(2008)3010-3019.

DOI: 10.1016/j.compscitech.2008.06.012

[2] M .Koyama, H. Hatta, H.Fukuda, Effect of temperature and layer thickness on these strengths of carbon bonding for carbon/carbon, Composites: Carbon. 43(2005)171-177.

DOI: 10.1016/j.carbon.2004.09.002

[3] C.T. Chang, Y.C.Du, R.K. Shiue, et al., Infrared brazing of high-strength titanium alloys by Ti-15Cu-15Ni and Ti-15Cu-25Ni filler foils, Mat. Sci. Eng. A. 420(2006)155-164.

DOI: 10.1016/j.msea.2006.01.046

[4] M. Singh, G.N. Morscher, T.P. Shpargel, et al., Active metal brazing of titanium to high-conductivity carbon-based sandwich structures, Mat. Sci. Eng. A. 498(2008)31-36.

DOI: 10.1016/j.msea.2007.11.151

[5] S.D. Peteves, M.Paulasto, G.Ceccone, et al., The reactive route to ceramic joining: fabrication, interfacial chemistry and joint properties, Acta. Mater.46 (1998)2407-2414.

DOI: 10.1016/s1359-6454(98)80023-2

[6] Y.C. Yoo, J.H. Kim, K. Park, Microstructural characterization of Al2O3/AISI 8650 steel joint brazed with Ag-Cu-Sn-Zr alloy, Mater. Lett. 42 (2000)362-366.

DOI: 10.1016/s0167-577x(99)00212-8

[7] J.J. Kim, J.W. Park, T.W. Eagar, Interfacial microstructure of partial transient liquid phase bonded Si3N4- to - Inconel 718 joints, Mat. Sci. Eng. A. 344(2003)240-244.

DOI: 10.1016/s0921-5093(02)00402-1

[8] W.M. Jr Robert, The challenges for joining to keep pace with advancing materials and designs, Mater.Design.16 (1995)261-269.

DOI: 10.1016/0261-3069(96)00004-0

[9] P.Appendino, V.Casalegno, M.Ferraris, Joining of C/C composites to copper, Fusion Eng. Des. 66/68(2003)225-229.

DOI: 10.1016/s0920-3796(03)00218-7

[10] D.L. Ye, J.H. Hu, Handbook of Thermodynamics Data for Inorganic Compounds, second ed., Beijing, 2002.

[11] M. Singh, T.P. Shpargel, G.N. Morscher, et al., Active metal brazing and characterization of brazed joints in titanium to carbon-carbon composites, Mat. Sci. Eng. A.412 (2005)123-128.

DOI: 10.1016/j.msea.2005.08.179

[12] R. Arroyave, T.W. Eagar, L.Kaufman, Thermodynamic assessment of the Cu-Ti-Zr system, J. Alloy Compd.351 (2003)158-170.

DOI: 10.1016/s0925-8388(02)01035-6
