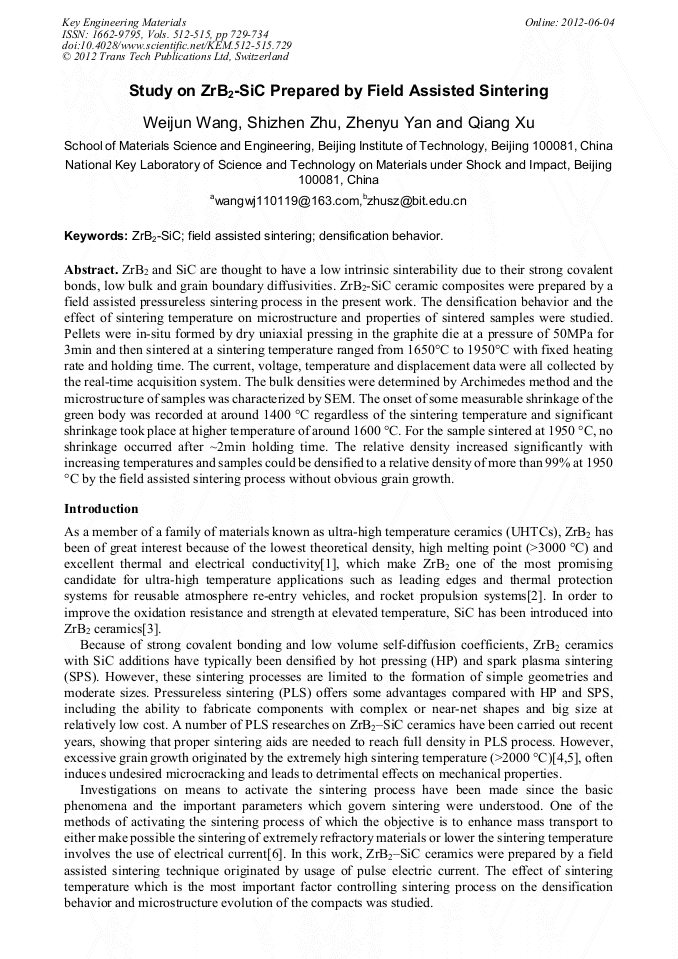

Study on ZrB₂-SiC Prepared by Field Assisted Sintering

Abstract:

Zirconium diboride and silicon carbide are thought to have a low intrinsic sinterability due to their strong covalent bonds, low bulk and grain boundary diffusivities. ZrB₂-SiC ceramic composites were prepared by a field assisted pressureless sintering process in the present work. The densification behavior and the effect of sintering temperature on microstructure and properties of sintered samples were studied. Pellets were in-situ formed by dry uniaxial pressing in the graphite die at a pressure of 50MPa for 3min and then sintered at a sintering temperature ranged from 1650 °C to 1950 °C with fixed heating rate and holding time. The current, voltage, temperature and displacement data were all collected by the real-time acquisition system. The bulk densities were determined by Archimedes method and the microstructure of samples was characterized by SEM. The onset of some measurable shrinkage of the green body was recorded at around 1400 °C regardless of the sintering temperature and significant shrinkage took place at higher temperature of around 1600 °C. For the sample sintered at 1950 °C, no shrinkage occurred after ~2min holding time. The relative density increased significantly with increasing temperatures and samples could be densified to a relative density of more than 99% at 1950 °C by the field assisted sintering process without obvious grain growth.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 729-734
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.729
• Online since: June 2012
• Authors: Wei Jun Wang, Shi Zhen Zhu, Zhen Yu Yan, Qiang Xu
• Keywords: Densification Behavior, Field Assisted Sintering, ZrB₂-SiC

References

[1] K. Upadhya, J.M. Yang, W.P. Hoffmann, Materials for ultrahigh temperature structural applications, Am. Ceram. Soc. Bull. 76[12] (1997) 51–56.

[2] S.R. Levine, E.J. Opila, M.C. Halbig, et al, Evaluation of ultra-high temperature ceramics for aeropropulsion use, J. Eur. Ceram. Soc. 22[14-15] (2002) 2757-2767.

DOI: 10.1016/s0955-2219(02)00140-1

[3] A.L. Chamberlain, W.G. Fahrenholtz, G.E. Hilmas, High-strength zirconium diboride-based ceramics, J. Am. Ceram. Soc. 87[6] (2004) 1170-1172.

DOI: 10.1111/j.1551-2916.2004.01170.x

[4] S.C. Zhang, W.G. Fahrenholtz, Pressureless sintering of ZrB2–SiC ceramics, J. Am. Ceram. Soc. 91[1] (2008) 26-32.

[5] X.G. Wang, W.M. Guo, G.J. Zhang, Pressureless sintering mechanism and microstructure of ZrB2–SiC ceramics doped with boron, Scripta Materialia, 61 (2009) 177-180.

DOI: 10.1016/j.scriptamat.2009.03.030

[6] R. Orru, R. Licheri, A.M. Locci, et al, Consolidation synthesis of materials by electric current activated assisted sintering, Mater. Sci. Eng. R. 63 (2009) 127-287.

DOI: 10.1016/j.mser.2008.09.003

[7] K. Vanmeensel, A. Laptev, J. hennicke, et al, Modelling of the temperature distribution during field assisted sintering, Acta Mater. 53 [16] (2005) 4379–4388.

DOI: 10.1016/j.actamat.2005.05.042

[8] W.G. Fahrenholtz, G.E. Hilmas, Refractory diborides of zirconium and hafnium, J. Am. Ceram. Soc. 90[5] (2007) 1347-1364.

[9] M. Nygren, Z. Shen, On the preparation of bio-, nano- and structural ceramics and composites by spark plasma sintering, Solid State Sci. 5(2003) 125-131.

DOI: 10.1016/s1293-2558(02)00086-9

[10] A.L. Chamberlain, W.G. Fahrenholtz, G.E. Hilmas, Pressureless Sintering of zirconium diboride, J. Am. Ceram. Soc. 89[2] (2006) 450-456.

DOI: 10.1111/j.1551-2916.2005.00739.x

[11] H.T. Orchard, A.L. Greer, Electromigration effects on compound growth at interfaces, Appl. Phys. Lett. 86[23] (2005) 231906.

[12] P. Asoka-Kumar, K. O'Brien, K. G. Lynn, et al, Detection of current-induced vacancies in thin aluminum-copper lines using positrons, Appl. Phys. Lett. 68[3] (1996) 406–408.

DOI: 10.1063/1.116700

[13] J.E. Garay, S.C. Glade, U. Anselmi-Tamburini, et al, Electric current enhanced defect mobility in Ni3Ti Intermetallics, Appl. Phys. Lett. 85[4] (2004) 573–575.

DOI: 10.1063/1.1774268
