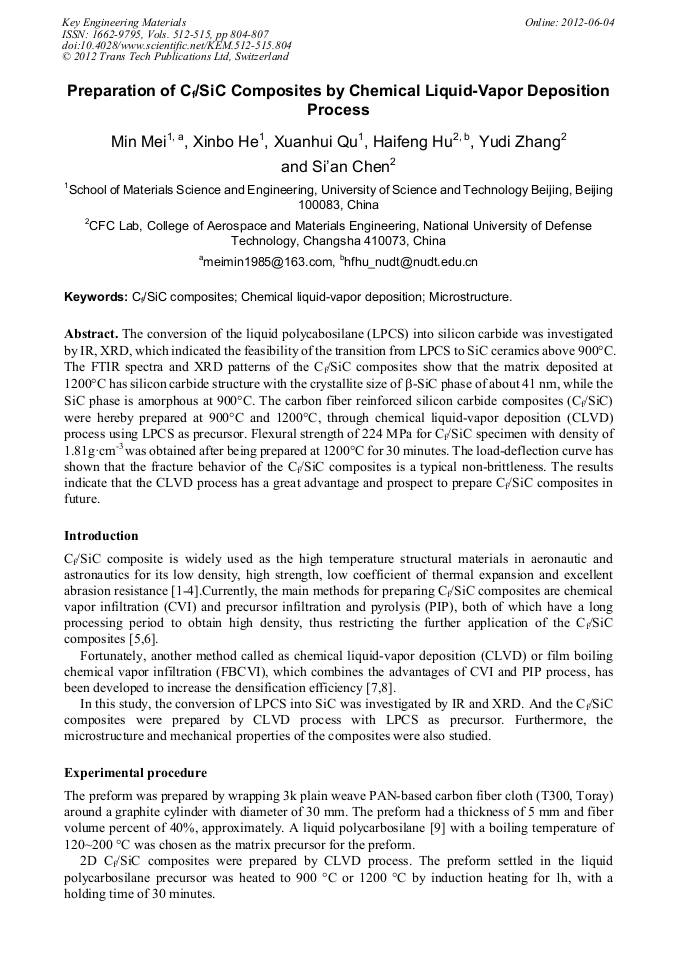

Preparation of C_f/SiC Composites by Chemical Liquid-Vapor Deposition Process

Abstract:

The conversion of the liquid polycabosilane (LPCS) into silicon carbide was investigated by IR, XRD, which indicated the feasibility of the transition from LPCS to SiC ceramics above 900°C. The FTIR spectra and XRD Pattern of the C_f/SiC composites show that the matrix deposited at 1200°C has silicon carbide structure with the crystallite size of β-SiC phase of about 41 nm, while the SiC phase is amorphous at 900°C. The carbon fiber reinforced silicon carbide composites (C_f/SiC) were hereby prepared at 900°C and 1200°C, through chemical liquid-vapor deposition (CLVD) process using LPCS as precursor. Flexural strength of 224 MPa for C_f/SiC specimen with density of 1.81g·cm^-3 was obtained after being prepared at 1200°C for 30 minutes. The load-deflection curve has shown that the fracture behavior of the C_f/SiC composites is a typical non-brittleness. The results indicate that the CLVD process has a great advantage and prospect to prepare C_f/SiC composites in future.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 804-807
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.804
• Online since: June 2012
• Authors: Min Mei, Xin Bo He, Xuan Hui Qu, Hai Feng Hu, Yu Di Zhang, Si An Chen
• Keywords: C_f/SiC Composites, Chemical Liquid-Vapor Deposition, Microstructure

References

[1] R. Naslain, Preparation and properties of non-oxide CMCs for application in engines and nuclear reactors: an overview, Compos. Sci. Techol. 64 (2004) 155-157.

DOI: 10.1016/s0266-3538(03)00230-6

[2] W. Krenkel, Proceedings of the ceramic engineering and science, J. Am. Ceram. Soc. 22 (2001) 443-454.

[3] X.G. Zhou, Y. Yu, C.R. Zhang, et al.; Effect of carbon fiber pre-heat-treatment on the microstructure and properties of Cf/SiC composites. Mater. Sci. Eng. A, 433 (2006) 104-107.

DOI: 10.1016/j.msea.2006.06.060

[4] H.J. Yu, X.G. Zhou, W. Zhang, et al., Properties of carbon nano-tubes-Cf/SiC composite by precuisor infiltration and pyrolysis process. Materials & Design 32 (2011) 3516-3520..

DOI: 10.1016/j.matdes.2011.02.038

[5] P. Delhaes, Chemical vapor deposition and infiltration processes of carbon materials, Carbon. 40 (2002) 641-657.

DOI: 10.1016/s0008-6223(01)00195-6

[6] K. Jian, Effects of pyrolysis processes on the microstructures and mechanical properties of Cf/SiC composites using polycarbosilane, Mater. Sci. Eng. A. 390 (2000) 154-158.

DOI: 10.1016/j.msea.2004.07.064

[7] M. Houdayer, J. Spitz, D. Tran-Van, U.S. Patent No. 4,472,454. (1984)

[8] E. Bruneton, B. Narcy, A. Oberlin, Carbon-carbon composites prepared by a rapid densification process I: synthesis and physico-chemical data, Carbon. 35 (1997) 1593-1598.

DOI: 10.1016/s0008-6223(97)00118-8

[9] B. Li, C.R. Zhang, H.F. Hu, Preparation of silicon carbide coatings from liquid carbosilane by chemical vapor deposition, Mater. Sci. Techol. 15(6) (2007) 848-850.

[10] Y. Hasegawa, Synthesis of continuous silicon carbide fiber, J. Mater. Sci. 24 (1989) 1177-1980.

[11] K. Jian: Ph.D Thesis (Doctor of National University of Defense and Technology, Changsha, 2006).
