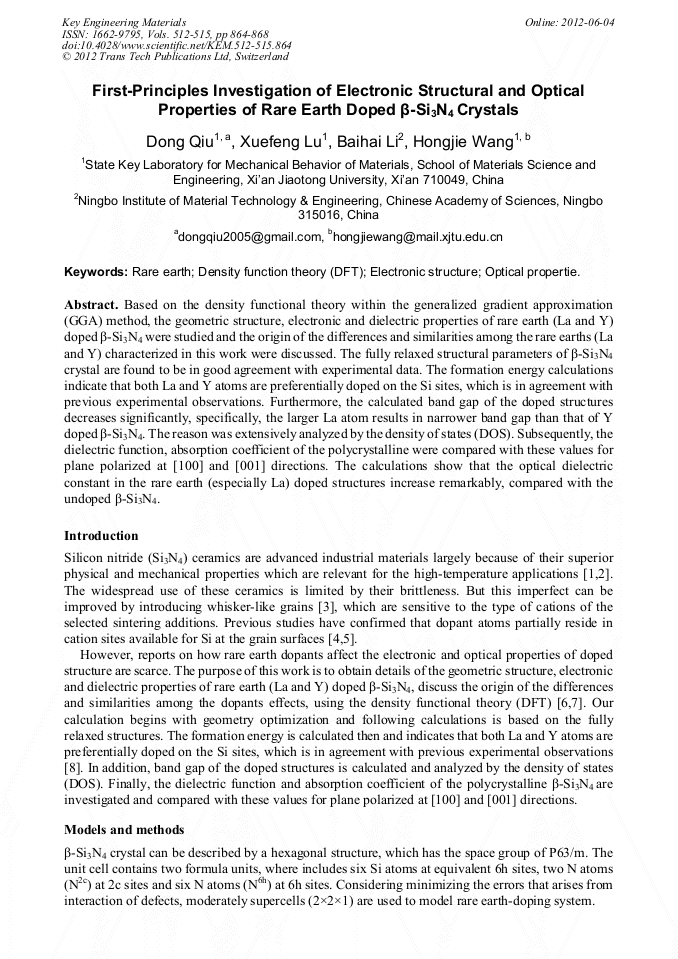

First-Principles Investigation of Electronic Structural and Optical Properties of Rare Earth Doped β-Si₃N₄ Crystals

Abstract:

Based on the density functional theory within the generalized gradient approximation (GGA) method, the geometric structure, electronic and dielectric properties of rare earth (La and Y) doped β-Si₃N₄ were studied and the origin of the differences and similarities among the rare earths (La and Y) characterized in this work were discussed. The fully relaxed structural parameters of β-SiN4 crystal are found to be in good agreement with experimental data. The formation energy calculations indicate that both La and Y atoms are preferentially doped on the Si sites, which is in agreement with previous experimental observations. Furthermore, the calculated band gap of the doped structures decreases significantly, specifically, the larger La atom results in narrower band gap than that of Y doped β-Si₃N₄. The reason was extensively analyzed by the density of states (DOS). Subsequently, the dielectric function, absorption coefficient of the polycrystalline were compared with these values for plane polarized at [100] and [001] directions. The calculations show that the optical dielectric constant in the rare earth (especially La) doped structures increase remarkably, compared with the undoped β-Si₄N₄.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 864-868
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.864
• Online since: June 2012
• Authors: Dong Qiu, Xue Feng Lu, Bai Hai Li, Hong Jie Wang
• Keywords: Density Function Theory (DFT), Electronic Structure, Optical Property, Rare Earth (RE)

References

[1] H. Klemm, Silicon Nitride for High-Temperature Applications, J. Am. Ceram. Soc. 93 (2010) 1501-1515.

[2] P. F. Becher, S. L. Hwang, C. H. Hsueh, Semiconductor nanocrystal, Mater. Res. Soc. Bull. 20 (1995) 23-32.

[3] E. Tani, S. Umebayashi, K. Kishi, Gas-pressure sintering of Si3N4 with concurrent additon of Al2O3 and 5 wt pct rare earth oxide-High fracture toughness Si3N4 with fiber-like structure, Am. Ceram. Soc. Bull. 65 (1986) 1311-1315.

[4] A. Ziegler, J. C. Idrobo, M. K. Cinibulk, et al., Interface structure and atomic bonding characteristics in silicon nitride ceramics, Science 306 (2004) 1768-1770.

DOI: 10.1126/science.1104173

[5] N. Shibata, S. J. Pennycook, T. R. Gosnell, et al., Observation of rare-earth segregation in silicon nitride ceramics at subnanometre dimensions, Nature 428 (2004) 730-733.

DOI: 10.1038/nature02410

[6] P. Hohenberg, W. Kohn, Inhomogeneous Electron Gas, Phys. Rev. 136 (1964) B864-871.

DOI: 10.1103/physrev.136.b864

[7] W. Kohn, L. J. Sham, Self-Consistent Equations Including Exchange and Correlation Effects, Phys. Rev. 140 (1965) A1133-1138.

DOI: 10.1103/physrev.140.a1133

[8] N. Shibata, G. S. Painter, P. F. Becher, et al., Atomic ordering at an amorphous/crystal interface, Appl. Phys. Lett. 89 (2006) 051908-1-051908-3.

DOI: 10.1063/1.2245212

[9] J. A. Wendel, W. A. Goddard, The Hessian biased force field for silicon nitride ceramics: Predictions of thermodynamic and mechanical properties for α-and β-Si3N4, J. Chem. Phys. 97 (1992) 5048-5062.

DOI: 10.1063/1.463859

[10] J. Dong, O. F. Sankey, Comment on 'Assignment of the raman active vibration modes of β-Si3N4 using micro-raman scattering', J. Appl. Phys. 87 (2000) 958-959.

DOI: 10.1063/1.371969

[11] J. Perdew, K. Burke, M. Ernzerhof, Generalized gradient approximation made simple, Phys. Rev. Lett. 77 (1996) 3865-3868.

DOI: 10.1103/physrevlett.77.3865

[12] R. Car, M. Parrinello, Unified approach for molecular dynamics and density-functional theory, Phys. Rev. Lett. 55 (1985) 2471-2474.

DOI: 10.1103/physrevlett.55.2471

[13] D. Vanderbilt, Soft self-consistent pseudopotentials in a generalized eigenvalue formalism, Phys. Rev. B 41 (1990) 7892-7895.

DOI: 10.1103/physrevb.41.7892

[14] H. J. Monkhorst, J. D. Pack, Special points for brillonin-zone integrations, Phys. Rev. B 13 (1976) 5188-5192.

DOI: 10.1103/physrevb.13.5188

[15] D. Vanderbilt, Soft self-consistent pseudopotentials in a generalized eigenvalue formalism, Phys. Rev. B 41 (1990) 7892-7895.

DOI: 10.1103/physrevb.41.7892

[16] S. B. Zhang, J. E. Northrup, Chemical potential dependence of defect formation energies in GaAs: application to Ga self-diff'usion, Phys. Rev. Lett. 67 (1991) 2339-2342.

DOI: 10.1103/physrevlett.67.2339

[17] A. V. Vishnyakov, Y. N. Novikov, V. A. Gritsenko et al., The charge transport mechanism in silicon nitride: multi-phonon trap ionization, Solid-State Electron. 53 (2009) 251-255.

DOI: 10.1016/j.sse.2008.07.005
