Evaluation and Analysis of Distortion of Complex Shaped Ti-6Al-4V Compacts by Metal Injection Molding Process

Abstract:

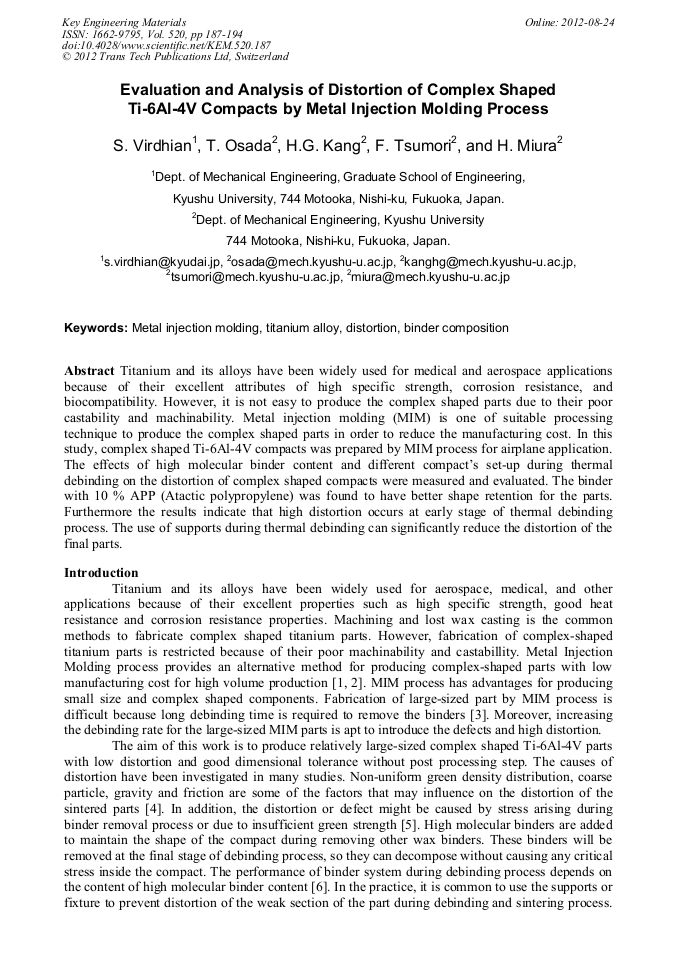

Article Preview

Titanium and its alloys have been widely used for medical and aerospace applications because of their excellent attributes of high specific strength, corrosion resistance, and biocompatibility. However, it is not easy to produce the complex shaped parts due to their poor castability and machinability. Metal injection molding (MIM) is one of suitable processing technique to produce the complex shaped parts in order to reduce the manufacturing cost. In this study, complex shaped Ti-6Al-4V compacts was prepared by MIM process for airplane application. The effects of high molecular binder content and different compact’s set-up during thermal debinding on the distortion of complex shaped compacts were measured and evaluated. The binder with 10 % APP (Atactic polypropylene) was found to have better shape retention for the parts. Furthermore the results indicate that high distortion occurs at early stage of thermal debinding process. The use of supports during thermal debinding can significantly reduce the distortion of the final parts.

Info:

Periodical:

Edited by:

Ma Qian

Pages:

187-194

Citation:

S. Virdhian et al., "Evaluation and Analysis of Distortion of Complex Shaped Ti-6Al-4V Compacts by Metal Injection Molding Process", Key Engineering Materials, Vol. 520, pp. 187-194, 2012

Online since:

August 2012

Export:

Price:

$38.00

[1] German, R.M. and Bose, A., Injection Molding of Metals and Ceramics, Metal Powder Industries Federation, Princeton, NJ, USA, (1997).

[2] Miura, H., Takemasu, T., Kuwano, Y., Ito, Y., Kenji, S., Sintering behavior and mechanical properties of injection molded Ti-6Al-4V alloy, J. Jpn. Soc. of Powder Powder Metallurgy. 53(10) (2006), 815-820.

DOI: https://doi.org/10.2497/jjspm.53.815

[3] Shimizu, T., Kitazima, A., Nose, M., Fuchizawa, S. Sano, T., Production of large size parts by MIM process, Journal of Materials Processing Technology. 119 (2001), 199-202.

DOI: https://doi.org/10.1016/s0924-0136(01)00942-6

[4] Shu, G.J., Hwang, K.S., Effect of Heating Rate and Phase Transformation on the Dimensional Control of Ferrous PIM Compacts, Materials Transactions. 46(2) (2005), 298-302.

DOI: https://doi.org/10.2320/matertrans.46.298

[5] J.W. Yun, Effect of decomposition kinetics and failure criteria on binder removal cycles from three dimensional porous green body, J. Am. Ceram. Soc., 89(19) (2006), 176-183.

[6] Huang, M. -S., Hsu, H. -C., Effect of backbone polymer of the 316 stainless steel MIM compact, Journal of Materials Processing Technology. 209 (2009), 5527-5535.

DOI: https://doi.org/10.1016/j.jmatprotec.2009.05.011

[7] Khalil, K. A., Huang, B. Li, Y. -M, Effect of thermal mechanical properties of PIM feedstock on compacts shape retention during debinding process, Trans Nonferrous Met. Soc. China. 11(4) (2001), 521-524.

[8] Fan, Y. -L., Hwang, K. -S. and Su, S. -C, Improvement of the dimensional stability of powder injection molded compacts by adding swelling inhibitor into the debinding solvent, Metallurgical and Materials Transaction A. 39 A (2008), 396-401.

DOI: https://doi.org/10.1007/s11661-007-9351-y

[9] German, R.M., Powder injection molding, design and application, Innovative Material Solution, Inc, Stage College, PA, USA, (2003).

[10] Ito, Y., Uematsu, T., Sato, K., Miura, H., Effect of oxygen content and relative density on the tensile properties of injection molded Ti-6Al-4V alloy, J. Jpn. Soc. of Powder Powder Metallurgy. 56(2009), 259-263.

DOI: https://doi.org/10.2497/jjspm.56.259
