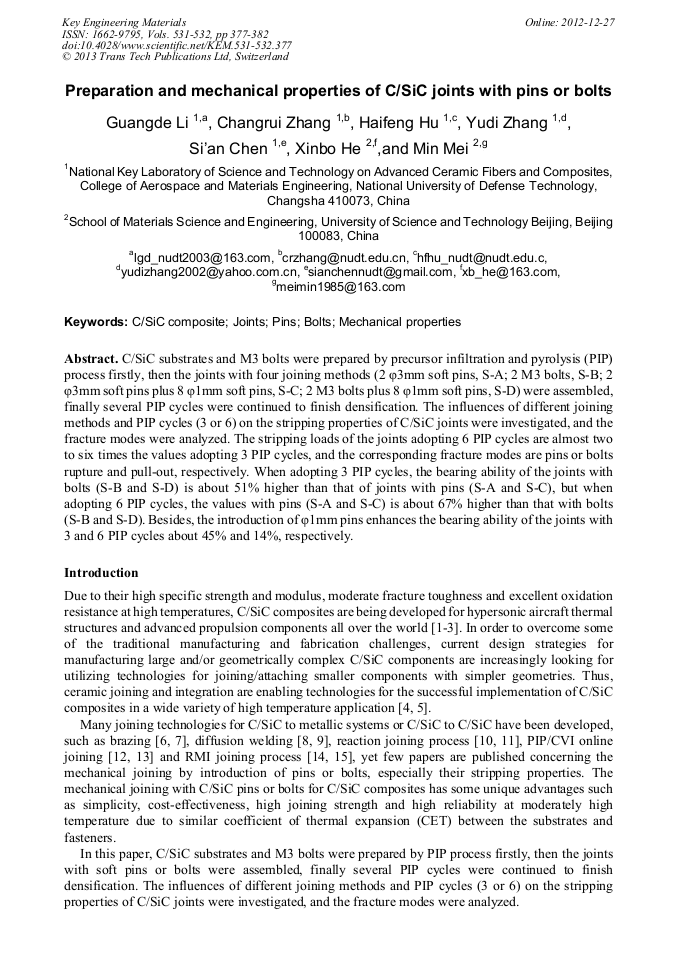

Preparation and Mechanical Properties of C/SiC Joints with Pins or Bolts

Abstract:

C/SiC substrates and M3 bolts were prepared by precursor infiltration and pyrolysis (PIP) process firstly, then the joints with four joining methods (2 φ3mm soft pins, S-A; 2 M3 bolts, S-B; 2 φ3mm soft pins plus 8 φ1mm soft pins, S-C; 2 M3 bolts plus 8 φ1mm soft pins, S-D) were assembled, finally several PIP cycles were continued to finish densification. The influences of different joining methods and PIP cycles (3 or 6) on the stripping properties of C/SiC joints were investigated, and the fracture modes were analyzed. The stripping loads of the joints adopting 6 PIP cycles are almost two to six times the values adopting 3 PIP cycles, and the corresponding fracture modes are pins or bolts rupture and pull-out, respectively. When adopting 3 PIP cycles, the bearing ability of the joints with bolts (S-B and S-D) is about 51% higher than that of joints with pins (S-A and S-C), but when adopting 6 PIP cycles, the values with pins (S-A and S-C) is about 67% higher than that with bolts (S-B and S-D). Besides, the introduction of φ1mm pins enhances the bearing ability of the joints with 3 and 6 PIP cycles about 45% and 14%, respectively.

• Periodical: Key Engineering Materials (Volumes 531-532)
• Pages: 377-382
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.531-532.377
• Online since: December 2012
• Authors: Guang De Li, Chang Rui Zhang, Hai Feng Hu, Yu Di Zhang, Si’an Chen, Xin Bo He, Min Mei
• Keywords: Bolts, C/SiC Composite, Joint, Mechanical Property, Pins

References

[1] T. Pichon, R. Parenteau, P. Soyris and J.M. Foucault: Act. Astrona. Vol. 65 (2009), p.165.

[2] C.C. Zhou, C.C. Zhang, H.F. Hu, Y.D. Zhang and Z.Y. Wang: Mater. Sci. Eng. A Vol. 488 (2008), p.569.

[3] K. Jian, Z.H. Chen and Q.S. Ma: Mater. Sci. Eng. A Vol. 390 (2005), p.54.

[4] W. Krenkel: Ceramic Matrix Composites: Fiber Reinforced Ceramics and their Applications (Wiley-VCH, Weinheim 2008).

[5] M. Singh and S.R. Levine: Proc. The 6th international conference on brazing, high temperature brazing and diffusion bonding (Aachen, Germany, 2001), p.55.

[6] R. Asthana and M. Singh: J. Eur. Ceram. Vol. 28 (2008), p.617.

[7] J.T. Xiong, J.L. Li, F.S. Zhang and W.D. Huang: Scr. Mater. Vol. 55 (2006), p.151.

[8] J.J. Zhang, S.J. Li, H.P. Duan and Y. Zhang: Rare Met. M. Vol. 31 (2002), p.393.

[9] M.C. Halbig, M. Singh, T.P. Shpargel and J.D. Kiser: Proc. The 30th international conference & exposition on advanced ceramics & composites (Florida, America, 2006), p.22.

[10] X.F. Chen, S.J. Li, Z.J. Chen and N. Wen: J. Mater. Sci. Vol. 46 (2011), p.707.

[11] X.F. Chen, S.J. Li, Z.J. Chen and N. Wen: Mater. High Vol. 28 (2011), p.28.

[12] Y.W. Lu, Y.D. Zhang, H.F. Hu and C.R. Zhang: Key Eng. Mat. Vol. 368-372 (2008), p.1044.

[13] H.L. Liu, S.J. Li and Z.J. Chen: Proc. The 5th pacific pim international conference on advanced materials and processing (Beijing, China, 2005), p.1267.

[14] Q.Y. Tong, L.F. Cheng and L.T. Zhang: Rare Met. M. Vol. 33 (2004), p.101.

[15] Q.Y. Tong and L.F. Cheng: Sci. Eng. Com. Vol.13 (2011), p.31.

[16] G.D. Li, C.R. Zhang, H.F. Hu and Y.D. Zhang: Rare Met. Vol. 30 (2011), p.572.

[17] G.D. Li, C.R. Zhang, H.F. Hu and Y.D. Zhang: Mater. Sci. Eng. A Vol. 547 (2012), p.1.
