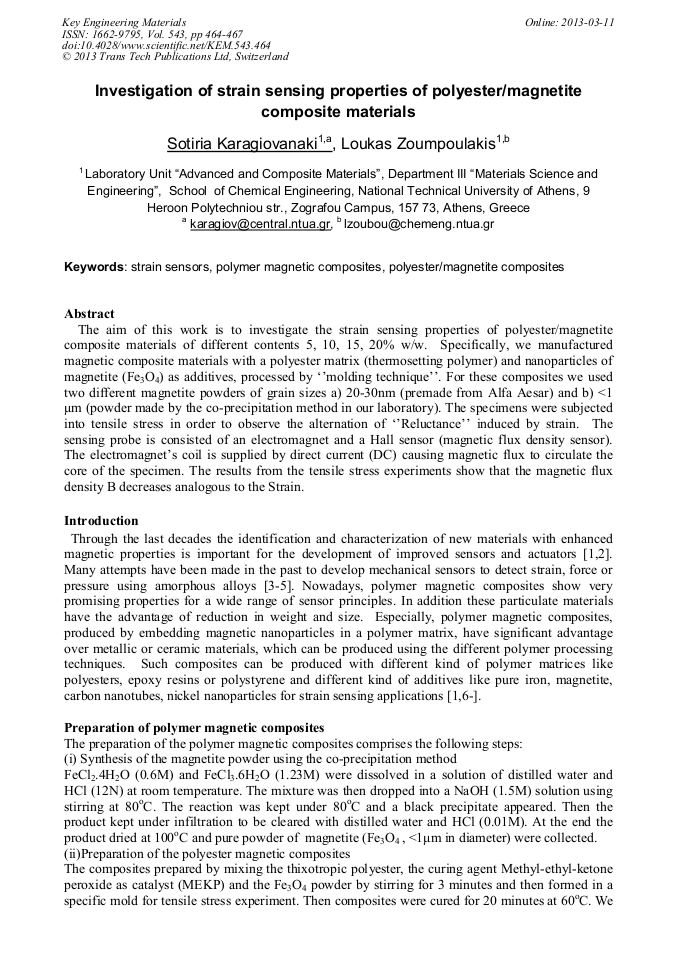

Investigation of Strain Sensing Properties of Polyester/Magnetite Composite Materials

Abstract:

The aim of this work is to investigate the strain sensing properties of polyester/magnetite composite materials of different contents 5, 10, 15, 20% w/w. Specifically, we manufactured magnetic composite materials with a polyester matrix (thermosetting polymer) and nanoparticles of magnetite (Fe₃O₄) as additives, processed by molding technique. For these composites we used two different magnetite powders of grain sizes a) 20-30nm (premade from Alfa Aesar) and b) <1 μm (powder made by the co-precipitation method in our laboratory). The specimens were subjected into tensile stress in order to observe the alternation of Reluctance induced by strain. The sensing probe is consisted of an electromagnet and a Hall sensor (magnetic flux density sensor). The electromagnets coil is supplied by direct current (DC) causing magnetic flux to circulate the core of the specimen. The results from the tensile stress experiments show that the magnetic flux density B decreases analogous to the Strain.

• Periodical: Key Engineering Materials (Volume 543)
• Pages: 464-467
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.543.464
• Online since: March 2013
• Authors: Sotiria Karagiovanaki, Loukas Zoumpoulakis
• Keywords: Polyester/Magnetite Composites, Polymer Magnetic Composites, Strain Sensor

References

[1] E. Hristoforou, Magnetic Effects in Physical Sensor Design, J. Opt. Adv. Mat., 4, pp.245-260, (2002).

[2] D.C. Jiles, C.C.H. Lo, The role of new materials in the development of magnetic sensors and actuators, Sensors and Actuators A 106 (2003) 3-7.

DOI: 10.1016/s0924-4247(03)00255-3

[3] E. Hristoforou and R.E. Reilly, New Mechanical Stress Transducers Based on Amorphous Alloys, IEEE Trans. Mag., Vol. 26, pp.1563-1565, (1990).

DOI: 10.1109/20.104447

[4] E. Hristoforou and R.E. Reilly, Characteristics of a Bending Beam Force Sensor Array Element, IEEE Trans. Mag., Vol. 27, pp.5244-5246, (1991).

DOI: 10.1109/20.278801

[5] E. Hristoforou and R.E. Reilly, Tensile Stress Distribution Sensors Based on Amorphous Alloys, J. Magn. Magn. Mat., Vol. 119, pp.247-253, (1993).

DOI: 10.1016/0304-8853(93)90408-t

[6] X. Song , S. Liu, Z. Gan , Q. Lv, H. Cao , H. Yan, Controllable fabrication of carbon nanotube-polymer hybrid thin film for strain sensing, Microelectronic Engineering, 86 (2009) 2330-2333.

DOI: 10.1016/j.mee.2009.04.012

[7] R.K. Srivastava, V.M. Vemuru, Y. Zeng, R. Vatjai, S. Nagarajaiah, P.M. Ajayan, A. Srivastava, The strain sensing and thermal–mechanical behavior of flexible multi-walled carbon nanotube/polystyrene composite films, Carbon 49 (2011) 3928-3936.

DOI: 10.1016/j.carbon.2011.05.031

[8] T. M. Johnson , D. T. Fullwood, G. Hansen , Strain monitoring of carbon fiber composite via embedded nickel nano-particles, Composites Part B, Vol. 43, (2011), 1155-1163.

DOI: 10.1016/j.compositesb.2011.09.014

[9] J. Petrou, E. Hristoforou, D. Stamopoulos, A. Valasiadis, Dependence of the structural and superconducting properties of MgB2 pellets on the thermal profiles of the manufacturing process, Journal of Materials Processing technology, 161, pp.33-35, (2005).

DOI: 10.1016/j.jmatprotec.2004.07.054

[10] N. D. Papadopoulos, P. E. Tsakiridis, E. Hristoforou, Structural and electrical properties of undoped SnO2 films developed by a low cost CVD technique with two different methods: a comparative study, J. Opt. Adv. Mat., 7, p.2693 – 2706, (2005).

[11] S. Kribalis, PE Tsakiridis, C. Dedeloudis and E. Hristoforou, Structural and electrical characterization of barium strontium titanate films prepared by sol-gel technique on brass (CuZn) substrate, Journal of Optoelectronics and Advanced Materials, 8, pp.1475-1478, (2006).

[12] ND Papadopoulos, E. Ellekova, HS Karayanni, E. Hristoforou, Synthesis and characterization of cobalt precursors for the growth of magnetic thin films by the MOCVD method, Journal of Optoelectronics and Advanced Materials, 10, pp.1098-1102, (2008).

[13] A.G. Mamalis, E. Hristoforou, D.E. Manolakos, T. Prikhna, I. Theodorakopoulos, G. Kouzilos, Explosively Consolidated Powder-In-Tube MgB2 Superconductor Aided by Post-Thermal Treatment, IEEE Transactions on Applied Superconductivity, 19, pp.20-27, (2009).

DOI: 10.1109/tasc.2008.2009124

[14] N.D. Papadopoulos, H.S. Karayianni, P.E. Tsakiridis, M. Perraki, E. Hristoforou, Cyclodextrin inclusion complexes as novel MOCVD precursors for potential cobalt oxide deposition, Applied Organometallic Chemistry, 24, pp.112-121, (2010).

DOI: 10.1002/aoc.1588
