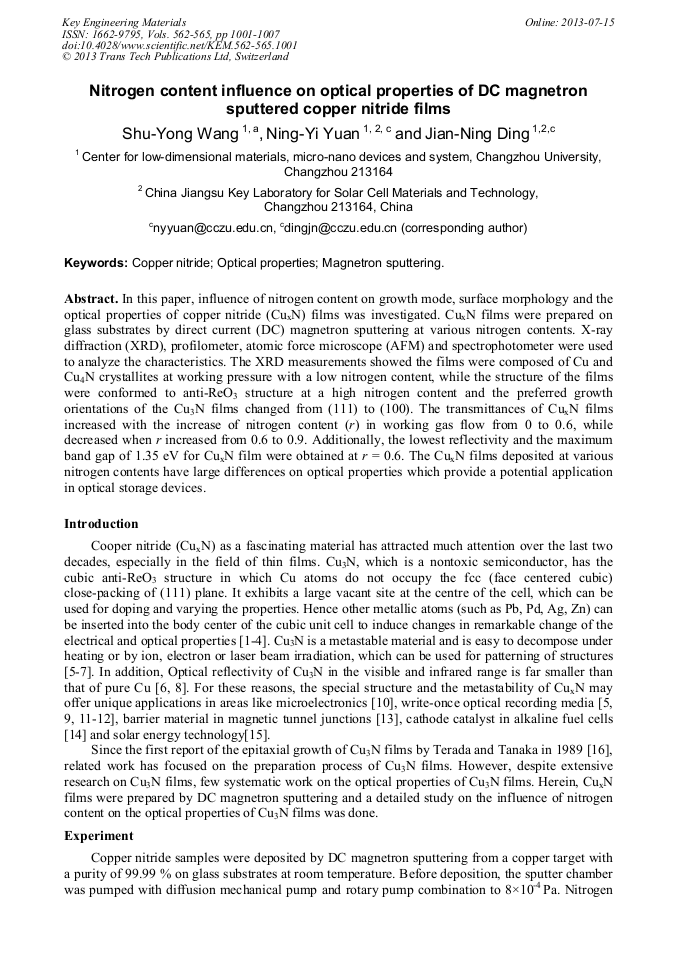

Nitrogen Content Influence on Optical Properties of DC Magnetron Sputtered Copper Nitride Films

Abstract:

In this paper, influence of nitrogen content on growth mode, surface morphology and the optical properties of copper nitride (Cu_xN) films was investigated. Cu_xN films were prepared on glass substrates by direct current (DC) magnetron sputtering at various nitrogen contents. X-ray diffraction (XRD), profilometer, atomic force microscope (AFM) and spectrophotometer were used to analyze the characteristics. The XRD measurements showed the films were composed of Cu and Cu₄N crystallites at working pressure with a low nitrogen content, while the structure of the films were conformed to anti-ReO₃ structure at a high nitrogen content and the preferred growth orientations of the Cu₃N films changed from (111) to (100). The transmittances of Cu_xN films increased with the increase of nitrogen content (r) in working gas flow from 0 to 0.6, while decreased when r increased from 0.6 to 0.9. Additionally, the lowest reflectivity and the maximum band gap of 1.35 eV for Cu_xN film were obtained at r = 0.6. The Cu_xN films deposited at various nitrogen contents have large differences on optical properties which provide a potential application in optical storage devices.

• Periodical: Key Engineering Materials (Volumes 562-565)
• Pages: 1001-1007
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.562-565.1001
• Online since: July 2013
• Authors: Shu Yong Wang, Ning Yi Yuan, Jian Ning Ding
• Keywords: Copper Nitride, Magnetron Sputtering, Optical Property

References

[1] Ma. Guadalupe Moreno-Armenta,  WilliamLópez Pérez, Noboru Takeuchi, First-principles calculations of the structural and electronic properties of Cu3MN compounds with M = Ni, Cu, Zn, Pd, Ag, and Cd, Solid State Sciences. 9 (2007)166-172.

DOI: 10.1016/j.solidstatesciences.2006.12.002

[2] MariaG. Moreno-Armenta, Gerardo Soto, Noboru Takeuchi, Ab initio calculations of non-stoichiometric copper nitride, pure and with palladium, Journal of Alloys and Compounds. 509 (2011) 1471-1476.

DOI: 10.1016/j.jallcom.2010.09.192

[3] J.F. Pierson, D. Horwat, Addition of silver in copper nitride films deposited by reactive magnetron sputtering, Scripta Materialia. 58 (2008) 568-570.

DOI: 10.1016/j.scriptamat.2007.11.016

[4] L.Gao, A.L.Ji, W.B. Zhang, Z.X. Cao, Insertion of Zn atoms into Cu3N lattice: Structural distortion and modification of electronic properties, Journalof Crystal Growth. 321 (2011) 157-161.

DOI: 10.1016/j.jcrysgro.2011.02.030

[5] M.Asano, K. Umeda, A.Tasaki, Cu3N thin film for a new light recording media, Jpn.J.Appl.Phys. 29 (1990) 1985-1986.

DOI: 10.1143/jjap.29.1985

[6] G.H. Yue, P.X. Yan, J. Wang, Study on the preparation and properties of copper nitride thin films, J.Cryst.Growth. 274 (2005) 464-468.

DOI: 10.1016/j.jcrysgro.2004.10.032

[7] N.Lesch, P.Karduclk, R.Cremer, A.V. Richthofen, Investigation of the electron beam induced transformation of Cu3N-films, Fresenius.J.Anal.Chem. 361 (1998) 604-607.

DOI: 10.1007/s002160050964

[8] T. Maruyama, T. Morishita, Copper nitride and tin nitride thin films for write-once optical recording media, Applied Physical Letters. 69 (1996) 890-891.

DOI: 10.1063/1.117978

[9] L. Maya, Covalent nitrides for maskless laser writing of microscopic metal lines, Mater. Res. Soc. Symp. Proc. 282 (1993) 203–208.

DOI: 10.1557/proc-282-203

[10] T. Wang, X.J. Pan, X.M. Wang, H.G. Duan, R.S. Li, H. Li and E.Q. Xie, Field emission property of copper nitride thin film deposited by reactive magnetron sputtering, Applied Surface Science. 254 (2008) 6817-6819.

DOI: 10.1016/j.apsusc.2008.04.071

[11] T. Nosaka, M. Yoshitake, A. Okamoto, S. Ogawa, Y. Nakayama, Thermal decomposition of copper nitride thin films and dots formation by electron beam writing, Appl. Surf. Sci. 169–170 (2001) 358–361.

DOI: 10.1016/s0169-4332(00)00681-4

[12] R. Cremer, M. Witthaut, D. Neuschutz, C. Trappe, M. Laurenzis, O. Winkler, H. Kurz, Deposition and characterization of metastable Cu3N layers for applications in optical data storage, Mikro. Acta. 133 (2000) 299-302.

DOI: 10.1007/s006040070109

[13] D. M. Borsa, S. Grachev, C. Presura and D. O. Boerma, Growth and properties of Cu3N films and Cu3N/γ'-Fe4N bilayers, Appl. Phys. Lett., 80, 2002, 1823.

DOI: 10.1063/1.1459116

[14] Haibin Wu and Wei Chen, Copper Nitride Nanocubes: Size-Controlled Synthesis and Application as Cathode Catalyst in Alkaline Fuel Cells, Journal of the American Chemical Society. 133 (2011) 15236-15239.

DOI: 10.1021/ja204748u

[15] C.Navio, M.J. Caption, J.Alvarez, F.Yndurain, R.Miranda, Intrinsic surface band bending in Cu3N(100) ultrathin films, Phy. Rev.B. 76 (2007) 085105-085113.

[16] S. Terada, H．Tanaka, K．Kubota, Heteroepitaxial growth of Cu3N thin films, J. Cryst. Growth. 94 (1989) 567-568.

DOI: 10.1016/0022-0248(89)90038-9

[17] JCPDS Powder Diffraction File 2-1156, Int. Centre for Diffraction Data, Park Lane, Swartmore PA, USA.

[18] J.F. Pierson, Structure and properties of copper nitride films formed by reactive magnetron sputtering, Vacuum.66 ( 2002) 59-64.

DOI: 10.1016/s0042-207x(01)00425-0

[19] T. Maruyama, T. Morishita, Copper nitride thin films prepared by radio-frequency reactive sputtering, J. Appl. Phys.78 (1995) 4104-4107.

DOI: 10.1063/1.359868

[20] J. Tauc, A. Menth and D. L. Wood, Optical and Magnetic Investigations of the Localized States in Semiconducting Glasses, Phys. Rev. Lett. 25(1970) 749-752.

DOI: 10.1103/physrevlett.25.749
