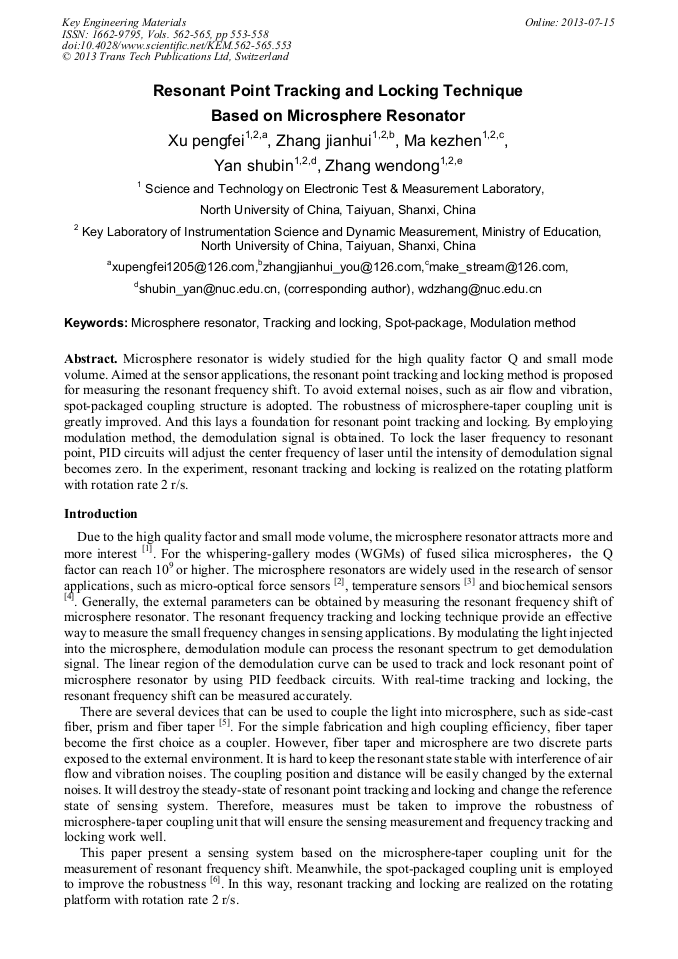

Resonant Point Tracking and Locking Technique Based on Microsphere Resonator

Abstract:

Abstract. Microsphere resonator is widely studied for the high quality factor Q and small mode volume. Aimed at the sensor applications, the resonant point tracking and locking method is proposed for measuring the resonant frequency shift. To avoid external noises, such as air flow and vibration, spot-packaged coupling structure is adopted. The robustness of microsphere-taper coupling unit is greatly improved. And this lays a foundation for resonant point tracking and locking. By employing modulation method, the demodulation signal is obtained. To lock the laser frequency to resonant point, PID circuits will adjust the center frequency of laser until the intensity of demodulation signal becomes zero. In the experiment, resonant tracking and locking is realized on the rotating platform with rotation rate 2 r/s.

• Periodical: Key Engineering Materials (Volumes 562-565)
• Pages: 553-558
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.562-565.553
• Online since: July 2013
• Authors: Peng Fei Xu, Jian Hui Zhang, Ke Zhen Ma, Shu Bin Yan, Wen Dong Zhang
• Keywords: Locking, Microsphere Resonator, Modulation Method, Spot-Package, Tracking

References

[1] Ming Cai, Oskar Painter, Kerry J.Vahala, Observation of Critical coupling in a fiber taper to a silica-microsphere whispering-gallery mode system, J. Physical Review Letters. 85(1) (2000) 74-77.

DOI: 10.1103/physrevlett.85.74

[2] Tindaro loppolo, Michael Kozhevnikov, Vadim Stepaniuk, Micro-optical force sensor concept based on whispering gallery mode resonators, J. Applied Optics. 47(16) (2008) 3009-3014.

DOI: 10.1364/ao.47.003009

[3] D.V. Strekalov, R.J. Thompson, L.M. Baumgartel, Temperature measurement and stabilization in a birefringent whispering gallery mode resonator, J. Optics Express. 19(15) (2011) 14495-14501.

DOI: 10.1364/oe.19.014495

[4] E.Chow, A.Grot, L.W. Mirkarimi, M.Sigalas, Ultracompact biochemical sensor built with two-dimensional photonic crystal microcavity, J. Optics Letters. 29(10) (2004) 1093-1095.

DOI: 10.1364/ol.29.001093

[5] S.M. Spillane, T.J. Kippenberg, O.J. Painter, Ideality in a fiber-taper-coupled microresonator system for application to cavity quantum electrodynamics, J. Physical Review Letters. 91(4) (2003) 043902-1-043902-4.

DOI: 10.1103/physrevlett.91.043902

[6] Ying-Zhan Yan, Chang-Ling Zou, Shu-Bin Yan, Packaged silica microsphere-taper coupling system for robust thermal sensing application, J. Optics Express. 19(7) (2011) 5753-5759.

DOI: 10.1364/oe.19.005753

[7] Ying-Zhan Yan, Shu-Bin Yan, Zhe Ji, Humidity and particulate testing of a high-Q microcavity packaging comprising a UV-curable polymer and tapered fiber coupler, J. Optics Communications. 285(2012) 2189-2194.

DOI: 10.1016/j.optcom.2011.12.031

[8] Ying-Zhan Yan, Chang-Ling Zou, Shu-Bin Yan, Robust spot-packaged microsphere-taper coupling structure for in-line optical sensors, J, IEEE Photonics Technology Letters. 23(22) (2011) 1736-1738.

DOI: 10.1109/lpt.2011.2169051
