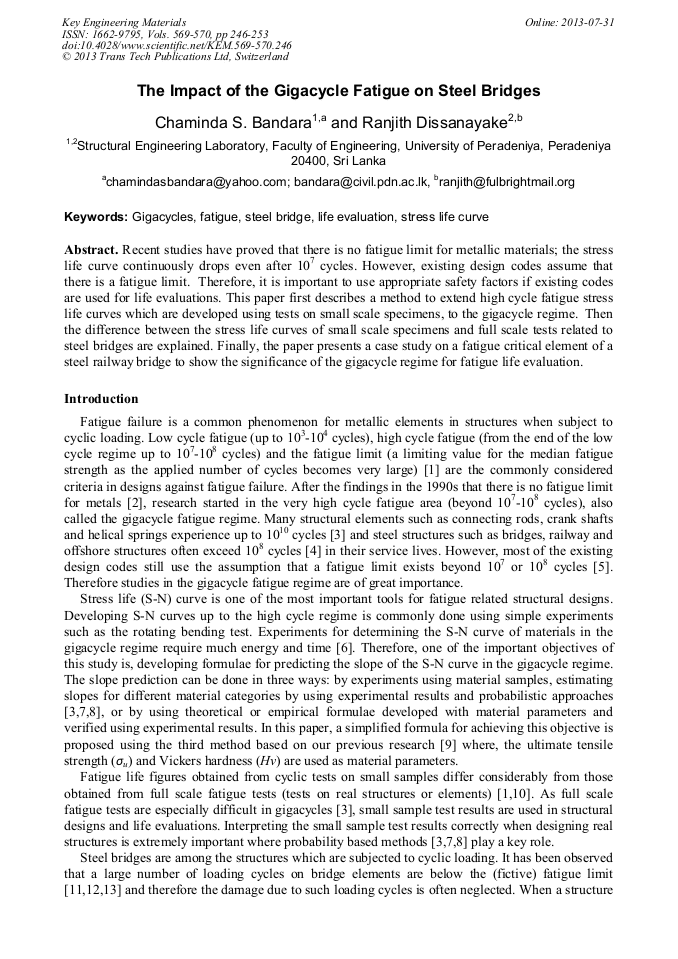

The Impact of the Gigacycle Fatigue on Steel Bridges

Abstract:

Recent studies have proved that there is no fatigue limit for metallic materials; the stress life curve continuously drops even after 10⁷ cycles. However, existing design codes assume that there is a fatigue limit. Therefore, it is important to use appropriate safety factors if existing codes are used for life evaluations. This paper first describes a method to extend high cycle fatigue stress life curves which are developed using tests on small scale specimens, to the gigacycle regime. Then the difference between the stress life curves of small scale specimens and full scale tests related to steel bridges are explained. Finally, the paper presents a case study on a fatigue critical element of a steel railway bridge to show the significance of the gigacycle regime for fatigue life evaluation.

• Periodical: Key Engineering Materials (Volumes 569-570)
• Pages: 246-253
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.569-570.246
• Online since: July 2013
• Authors: Chaminda S. Bandara, Ranjith Dissanayake
• Keywords: Fatigue, Gigacycles, Life Evaluation, Steel Bridge, Stress Life Curve

References

[1] H.O. Fuchs, R.I. Stephens, Metal fatigue in engineering, first ed., John Willy, New York, (1980).

[2] C. Bathias, There is no infinite fatigue life in metallic materials, Fatigue. Fract. Eng. Mater. Struct. 22: 7 (1999) 559-565.

DOI: 10.1046/j.1460-2695.1999.00183.x

[3] C.M. Sonsino, Course of SN curves especially in the high-cycle fatigue regime with regard to component design and safety, Int. J. Fatigue. 29 (2007) 2246-2258.

DOI: 10.1016/j.ijfatigue.2006.11.015

[4] Q.Y. Wang, J.Y. Berard, A. Dubarre, G. Baudry, S. Rathery, C. Bathias, Gigacycle fatigue of ferrous alloys, Fatigue. Fract. Eng. Mater. Struct. 22 (1999) 667-672.

DOI: 10.1046/j.1460-2695.1999.00185.x

[5] Euro code 3: Design of steel structures, Part 1-9: Fatigue, CEN: Brussels: (2004).

[6] Y.B. Liu, Z.G. Yang, Y.D. Li, S.M. Chen, S.X. Li, W.J. Hui, Y.Q. Weng, Dependence of fatigue strength on inclusion size for high strength steels in very high cycle fatigue regime, Mater. Sci. Eng A. 517 (2009) 180-184.

DOI: 10.1016/j.msea.2009.03.057

[7] C.M. Sonsino, Spectrum loading effects on structural durability of components, Str. Integrity and Life 11: 3 (2011) 157-171.

[8] J. Schijve, Fatigue of structures and materials in the 20th century and the state of the art, Int. J. Fatigue. 25 (2003) 679-702.

DOI: 10.1016/s0142-1123(03)00051-3

[9] A.M.A.C.S. Bandara, P.B.R. Dissanayake, U.I. Dissanayake, S.A.S.C. Siriwardane, A new approach for predicting the fatigue strength of steels and aluminium alloys in high and gigacycle regimes, Proceedings of the international conference on sustainable built environment, Kandy, Sri Lanka: Dec (2012).

DOI: 10.7763/ijmmm.2013.v1.54

[10] T. Larsson, Fatigue assessment of riveted bridges, Doctoral Thesis, Lulea University of Technology (2009).

[11] R. Lund, S. Alampalli, Estimating fatigue life of Patroon island bridge using strain measurements, Report FHWA/NY/SR-04/142 (2004).

[12] I.E. Aghoury, Numerical tool for fatigue life prediction of corroded steel riveted connections using various damage models, Doctoral Thesis, Concordia University (2012).

[13] S.L. Wood, P.K. Dean, Methodology for the quantitative evaluation of the remaining fatigue life of fracture critical bridges, Report FHWA/TX-07/0-4096-2 (2007).

[14] S.S. Chaminda, M. Ohga, R. Dissanayake, K. Taniwaki, Different approaches for remaining fatigue life estimation of critical members in railway bridges, Steel Structures. 7 (2007) 263-276.

[15] M.D. Chapetti, Ultra-high cycle fatigue in high strength steels, Conamet/SAM (2006), www. materiale-sam. org. ar/sitro/bibliotecu/g6. pdf.

[16] Y.B. Liu, Y.D. Li, Z.G. Yang, S.M. Chen, W.J. Hui, Y.Q. Weng, Prediction of the S-N curves of high strength steels in the very high cycle fatigue regime, Int. J. Fatigue. 32 (2010) 1351-1357.

DOI: 10.1016/j.ijfatigue.2010.02.006

[17] Y. Murakami, Metal fatigue: effects of small defects and non metallic inclusions, first ed., Elsevier, Oxford, (2002).

[18] NRIM, Fatigue datasheet, http: /mits. nism. go. jp/en/. /html (accessed on 10-Nov-2012).

[19] I.M. Garcia, D.G. Montiel, C. Bathias, Fatigue life assessment of high-strength low alloy steel at high frequency, The Arabian J. Sci. Eng. 33 (2008) 237-247.

[20] NRIM, Fatigue datasheet, http: /mits. nism. go. jp/en/. /html (accessed on 10-Nov-2012).

[21] B. Kuhn, M. Lukic, A. Nussbaumer, H.P. Gunther, R. Helmerich, S. Herion, M.H. Kolstein, S. Walbridge, B. Androic, O. Dijkstra, O. Bucak, Assessment of existing steel structures: Recommendations for estimation of remaining fatigue life, Joint report CEN/TC 250, first ed., European commission, Luxembourg, (2008).

[22] A.M.A.C.S. Bandara, R.M.S.U.P. Rathnayaka, P.B.R. Dissanayake, Sustainable solution for retrofitting of bridges damaged by floods, Proceedings of the international conference on desaster management, Kumomoto, Japan: Aug (2012).
