For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Synthesis and Characterization of BaTiO3 Fine Powders by Pulse Jet Spray Pyrolysis
p.36
Domain Dynamics under Unipolar Electric Fields for BaTiO3 Single Crystals
p.40
Improvement of Insulation Reliability of BaTiO3-Based Ceramics Using Mixed Conductive Electrode
p.44
Polarization Switching Dynamics of Ferroelectric (Bi0.5Na0.5)TiO3 Single Crystals
p.51
Preparation of BiFeO3-BaTiO3 Based Thick Films by Screen Printing
p.55
Synthesis and Properties of Mn-Doped (Bi0.5Na0.5)TiO3 Thin Films by Chemical Solution Deposition
p.59
Mössbauer Spectra of 57Fe-Enriched BiFeO3 Thin Films Fabricated on SiO2/Si Substrates by Chemical Solution Deposition Process
p.63
Preparation of Barium Titanate/Strontium Titanate Accumulation Ceramics with Necking Structure of Strontium Titanate Nanocubes
p.67
Preparation of Bismuth Based Perovskite Oxides and their Electric Properties
p.71

Preparation of BiFeO3-BaTiO3 Based Thick Films by Screen Printing

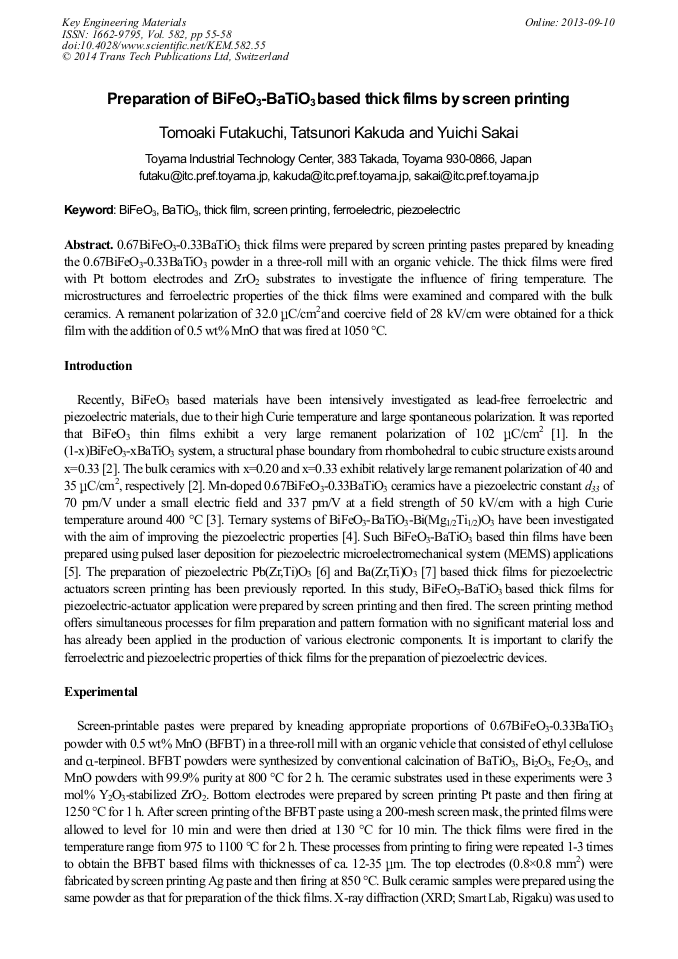

Article Preview

Abstract:

0.67BiFeO3-0.33BaTiO3 thick films were prepared by screen printing pastes prepared by kneading the 0.67BiFeO3-0.33BaTiO3 powder in a three-roll mill with an organic vehicle. The thick films were fired with Pt bottom electrodes and ZrO2 substrates to investigate the influence of firing temperature. The microstructures and ferroelectric properties of the thick films were examined and compared with the bulk ceramics. A remanent polarization of 32.0 μC/cm2 and coercive field of 28 kV/cm were obtained for a thick film with the addition of 0.5 wt% MnO that was fired at 1050 °C.

You might also be interested in these eBooks
Electroceramics in Japan XVI View Preview

Info:

Periodical:

Key Engineering Materials (Volume 582)

Pages:

55-58

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.582.55

Citation:

Cite this paper

Online since:

September 2013

Authors:

Tomoaki Futakuchi, Tatsunori Kakuda, Yuichi Sakai

Keywords:

BaTiO3, BiFeO3, Ferroelectric, Piezoelectric, Screen Printing, Thick Film

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] K. Y. Yum, D. Ricinschi, T. Kanashima and M. Okuyama: Appl. Phys. Lett. 89 (2006), p.192902.

Google Scholar

[2] K. Kitagawa, Y. Horibe, K. Yoshii, M. Suzuki, Y. Nogichi, S. Nishiyama, Y. Hosokoshi and S. Mori: Trans. Mater. Res. Soc. Jpn. 33 (2008), p.27.

Google Scholar

[3] S.O. Leontsev and R.E. Eitel: J. Am. Ceram. Soc. 92(2009), p.2957.

Google Scholar

[4] H. Yabuta, M. Shimada, T. Watanabe, J. Hayashi, M. Kubota, K. Miura, T. Fukui I. Fuji and S. Wada: Jpn. J. Appl. Phys. 51 (2012), 09LD04.

DOI: 10.7567/jjap.51.09ld04

Google Scholar

[5] T. Sasaki, Y. Hirabayashi, H. Kobayashi and Y. Sakashita: Jpn. J. Appl. Phys. 50 (2011), 09NA08.

Google Scholar

[6] T. Futakuchi, Y. Sakai, T. Iijima and M. Adachi: Key Eng. Mater. 301 (2006), p.45.

Google Scholar

[7] Y. Sakai, T. Futakuchi, T. Iijima and M. Adachi: Jpn. J. Appl. Phys. 44 (2005), p.3099.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
