Synthesis and Properties of Mn-Doped (Bi0.5Na0.5)TiO3 Thin Films by Chemical Solution Deposition

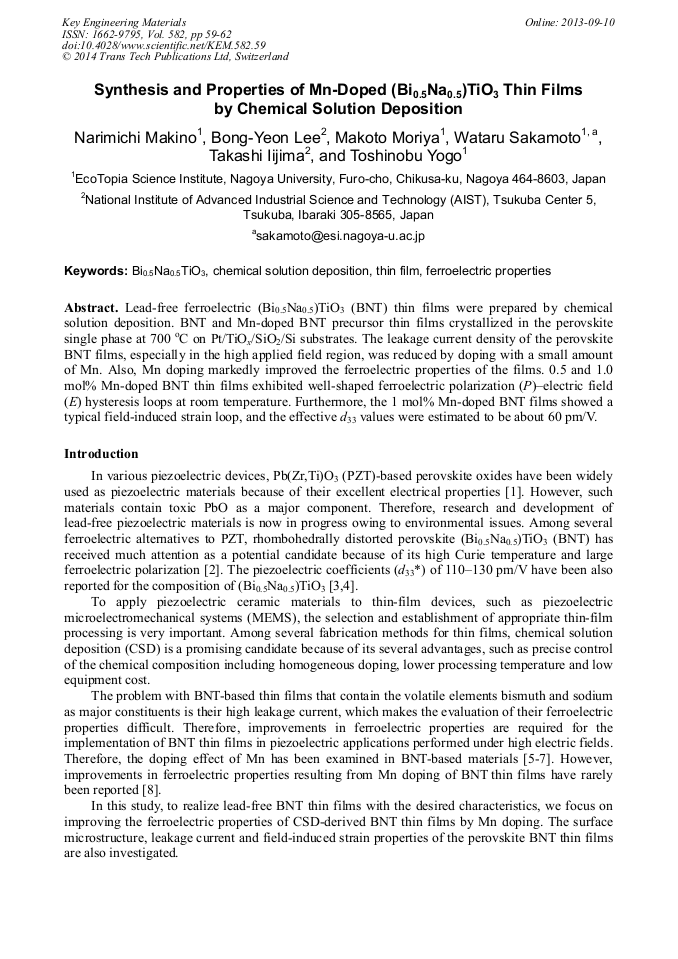

Article Preview

Abstract:

Lead-free ferroelectric (Bi0.5Na0.5)TiO3 (BNT) thin films were prepared by chemical solution deposition. BNT and Mn-doped BNT precursor thin films crystallized in the perovskite single phase at 700 °C on Pt/TiOx/SiO2/Si substrates. The leakage current density of the perovskite BNT films, especially in the high applied field region, was reduced by doping with a small amount of Mn. Also, Mn doping markedly improved the ferroelectric properties of the films. 0.5 and 1.0 mol% Mn-doped BNT thin films exhibited well-shaped ferroelectric polarization (P) electric field (E) hysteresis loops at room temperature. Furthermore, the 1 mol% Mn-doped BNT films showed a typical field-induced strain loop, and the effective d33 values were estimated to be about 60 pm/V.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

59-62

Citation:

Online since:

September 2013

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] G.E. Haertling: J. Am. Ceram. Soc. Vol. 82 (1999), p.797.

Google Scholar

[2] B. Jaffe, W.R. Cook, H. Jaffe: Piezoelectric Ceramics (Academic Press Inc., NewYork 1971).

Google Scholar

[3] K. Yamamoto, M. Suzuki, Y. Noguchi, M. Miyayama: Jpn. J. Appl. Phys. Vol. 47 (2008), p.7623.

Google Scholar

[4] Y. Hiruma, H. Nagata, T. Takenaka: J. Appl. Phys. Vol. 105 (2009), p.084112.

Google Scholar

[5] H. Nagata, T. Takenaka: J. Euro. Ceram. Soc. Vol. 21 (2001), p.1299.

Google Scholar

[6] W. Ge, H. Liu, X. Zhao, W. Zhong, X. Pan, T. He, D. Lin, H. Xu, X. Jiang, H. Luo: J. Alloys Compd. Vol. 462 (2008), p.256.

Google Scholar

[7] E. Aksel, P. Jakes, E. Erdem, D. M. Smyth, A. Ozarowski, J. Tol, J. L. Jones, R. -A. Eichel: J. Am. Cearm. Soc. Vol. 94 (2011), p.1363.

Google Scholar

[8] D. Y. Wang, N. Y. Chan, S. Li, S. H. Choy, H. Y. Tian, H. L. W. Chan: Appl. Phys. Lett. Vol. 97 (2010), p.212901.

Google Scholar

[9] T. Hayashi, D. Togawa, M. Yamada, W. Sakamoto and S. Hirano: Jpn. J. Appl. Phys. Vol. 41 (2002), p.6814.

Google Scholar

[10] Y. Nakashima, W. Sakamoto, H. Maiwa, T. Shimura, T. Yogo: Jpn. J. Appl. Phys. Vol. 46 (2007), p. L311.

Google Scholar

[11] W. Sakamoto, A. Iwata, T. Yogo: J. Appl. Phys. Vol. 104 (2008), p.104106.

Google Scholar

[12] A. L. Kholkin, Ch. Wütchrich, D. V. Taylor, N. Setter: Rev. Sci. Instrum. Vol. 67 (1995), p. (1935).

Google Scholar
