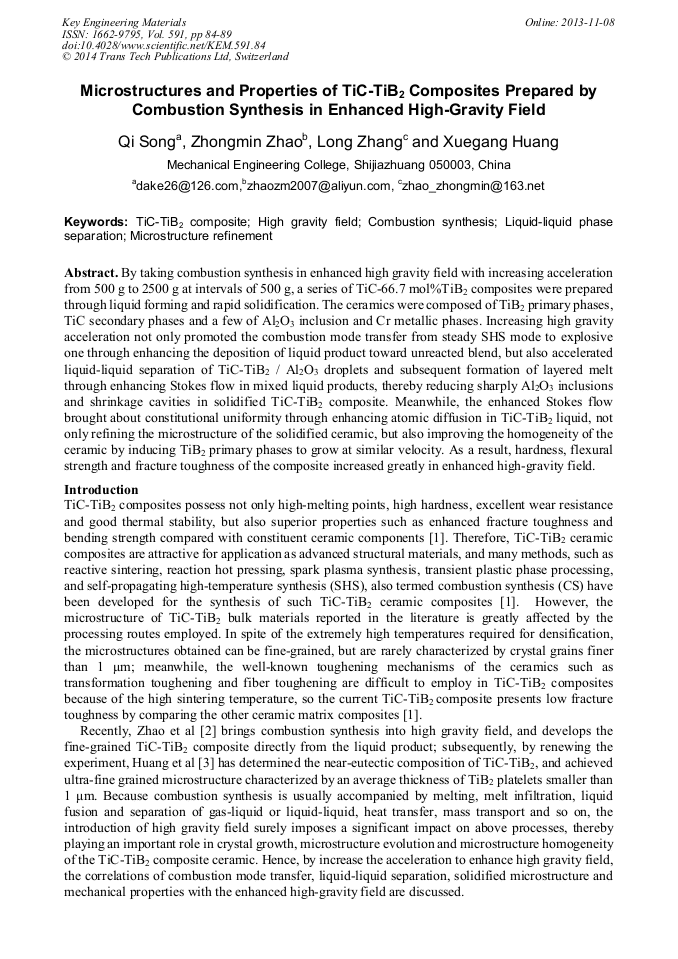

Microstructures and Properties of TiC-TiB₂ Composites Prepared by Combustion Synthesis in Enhanced High-Gravity Field

Abstract:

By taking combustion synthesis in enhanced high gravity field with increasing acceleration from 500 g to 2500 g at intervals of 500 g, a series of TiC-66.7 mol%TiB₂ composites were prepared through liquid forming and rapid solidification. The ceramics were composed of TiB₂ primary phases, TiC secondary phases and a few of Al₂O₃ inclusion and Cr metallic phases. Increasing high gravity acceleration not only promoted the combustion mode transfer from steady SHS mode to explosive one through enhancing the deposition of liquid product toward unreacted blend, but also accelerated liquid-liquid separation of TiC-TiB₂ / Al₂O₃ droplets and subsequent formation of layered melt through enhancing Stokes flow in mixed liquid products, thereby reducing sharply Al₂O₃ inclusions and shrinkage cavities in solidified TiC-TiB₂ composite. Meanwhile, the enhanced Stokes flow brought about constitutional uniformity through enhancing atomic diffusion in TiC-TiB₂ liquid, not only refining the microstructure of the solidified ceramic, but also improving the homogeneity of the ceramic by inducing TiB₂ primary phases to grow at similar velocity. As a result, hardness, flexural strength and fracture toughness of the composite increased greatly in enhanced high-gravity field.

• Periodical: Key Engineering Materials (Volume 591)
• Pages: 84-89
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.591.84
• Online since: November 2013
• Authors: Qi Song, Zhong Min Zhao, Long Zhang, Xue Gang Huang
• Keywords: Combustion Synthesis, High Gravity Field, Liquid-Liquid Phase Separation, Microstructure Refinement, TiC-TiB₂ Composite

References

[1] D. Vallauri, I. C. AtIas, A. Adrian. TiC-TiB2 composites: A review of phase relationships, processing and properties, J. J Eur Ceram Soc. 28(8) (2008)1697-1713.

DOI: 10.1016/j.jeurceramsoc.2007.11.011

[2] Z. Zhao, L. Zhang, Y. Song, W. Wang, H. Liu. Microstructure and properties of large bulk solidified TiC-TiB2 composites prepared by combustion synthesis under high gravity, J. Scr. Mater. 61(3) (2009) 281-284.

DOI: 10.1016/j.scriptamat.2009.04.002

[3] X. Huang, L. Zhang, Z. Zhao, C. Yin. Microstructure transformation and mechanical properties of TiC-TiB2 ceramics prepared by combustion synthesis in high gravity field, J. Mater. Sci. Eng. A. 553(2012)105-111.

DOI: 10.1016/j.msea.2012.05.099

[4] L. L. Wang, Z. A. Munir, Y. M. Maximov. Review thermite reaction: their utilization in the synthesis and processing of materials, J. J. Mater. Sci. 28(1993)3693-3708.

DOI: 10.1007/bf00353167

[5] C. Pan, L. Zhang, Z. Zhao. TiB2-TiC eutectic composite ceramics prepared by combustion synthesis under high gravity, J. Acta Metall. Sin. (China). 27(1) (2010)109-117.

[6] W. Kurz, D. J. Fisher, Fundamental of Solidification, fourth revised ed, Trans Tech Publications Ltd, Switzerland, (1998).
