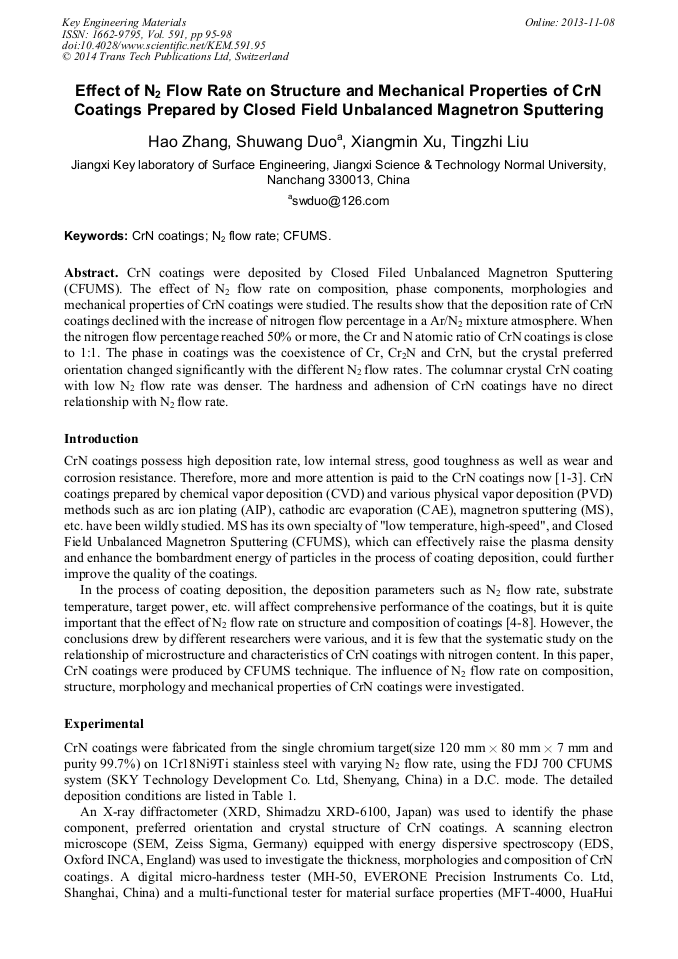

Effect of N₂ Flow Rate on Structure and Mechanical Properties of CrN Coatings Prepared by Closed Field Unbalanced Magnetron Sputtering

Abstract:

CrN coatings were deposited by Closed Filed Unbalanced Magnetron Sputtering (CFUMS). The effect of N₂ flow rate on composition, phase components, morphologies and mechanical properties of CrN coatings were studied. The results show that the deposition rate of CrN coatings declined with the increase of nitrogen flow percentage in a Ar/N₂ mixture atmosphere. When the nitrogen flow percentage reached 50% or more, the Cr and N atomic ratio of CrN coatings is close to 1:1. The phase in coatings was the coexistence of Cr, Cr₂N and CrN, but the crystal preferred orientation changed significantly with the different N₂ flow rates. The columnar crystal CrN coating with low N₂ flow rate was denser. The hardness and adhension of CrN coatings have no direct relationship with N₂ flow rate.

• Periodical: Key Engineering Materials (Volume 591)
• Pages: 95-98
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.591.95
• Online since: November 2013
• Authors: Hao Zhang, Shu Wang Duo, Xiang Min Xu, Ting Zhi Liu
• Keywords: CFUMS, CrN Coatings, N₂ Flow Rate

References

[1] J.L. Mo, M.H. Zhu. Tribological characterization of chromium nitride coating deposited by filtered cathodic vacuum arc, Applied Surface Science. 255 (2009) 7627-7634.

DOI: 10.1016/j.apsusc.2009.04.040

[2] X.S. Wan, Y.Y. Shi, J. Ma, et al. Salt spray corrosion behaviour of CrN coatings deposited by arc ion plating, Acta Metallurgica Sinica. 46 (2010) 600-606.

DOI: 10.3724/sp.j.1037.2009.00759

[3] R. Cecchini, A. Fabrizi, M. Cabibbo, et al. Mechanical, microstructural and oxidation properties of reactively sputtered thin Cr-N coatings on steel, Thin Solid Films. 519 (2011) 6515-6521.

DOI: 10.1016/j.tsf.2011.04.115

[4] C. Meunier, S. ViVes, G. Bertrand. X-ray diffractometry analysis of r. f. -magnetron-sputtered chromium/chromium nitride coatings, Surface and Coatings Technology. 107 (1998) 149-158.

DOI: 10.1016/s0257-8972(98)00586-6

[5] C. Rebholz, Ziegele, A. Leyland, et al. Structure, mechanical and tribological properties of nitrogen-containing chromium coatings prepared by reactive magnetron sputtering, Surface and Coatings Technology. 115 (1999) 222-229.

DOI: 10.1016/s0257-8972(99)00240-6

[6] J. Bujak, J. Walkowicz, J. Kushinski. Influence of the nitrogen pressure on the structure and properties of deposited by cathodic Vacuum arc PVD process, Surface and Coatings Technology. 180-181 (2004) 150-157.

DOI: 10.1016/j.surfcoat.2003.10.058

[7] Z.L. Lin, X. H. Wu, B.M. Zhang. A comparative study of CrNx coatings synthesized by dc and pulsed dc magnetron sputtering, Thin Solid Films. 517 (2009) 1887-1894.

DOI: 10.1016/j.tsf.2008.09.093

[8] S.Y. Tan, X. H. Zhang, X. J. Wu, et al. Effect of N2 flow rate on structure and property of CrN coatings deposited by DC reactive magnetron sputtering, Materials for Mechanical Engineering. 34 (2010) 34-37.
