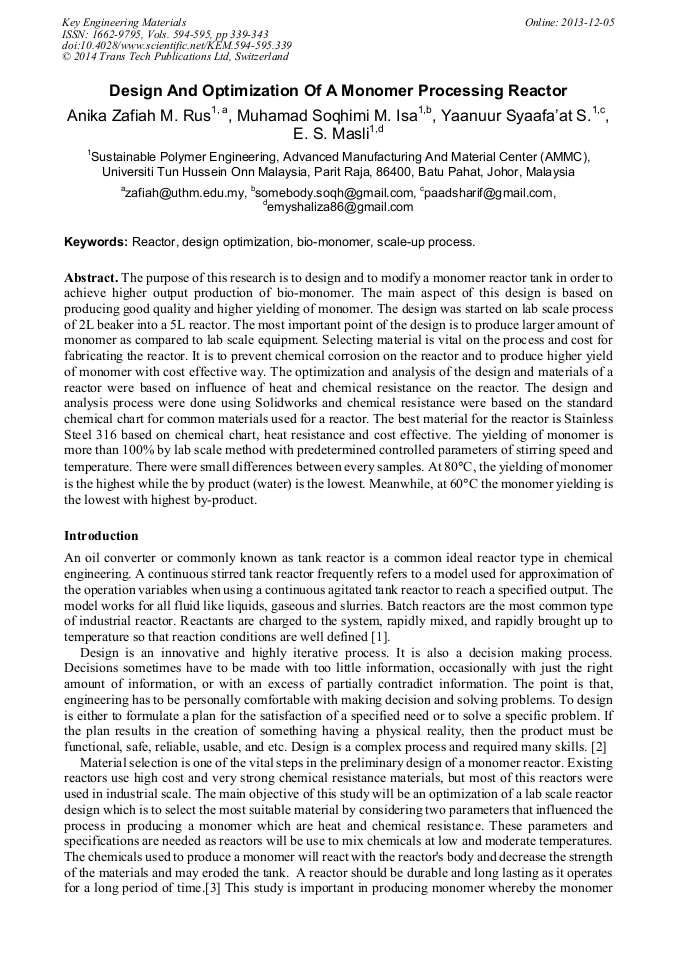

Design and Optimization of a Monomer Processing Reactor

Abstract:

The purpose of this research is to design and to modify a monomer reactor tank in order to achieve higher output production of bio-monomer. The main aspect of this design is based on producing good quality and higher yielding of monomer. The design was started on lab scale process of 2L beaker into a 5L reactor. The most important point of the design is to produce larger amount of monomer as compared to lab scale equipment. Selecting material is vital on the process and cost for fabricating the reactor. It is to prevent chemical corrosion on the reactor and to produce higher yield of monomer with cost effective way. The optimization and analysis of the design and materials of a reactor were based on influence of heat and chemical resistance on the reactor. The design and analysis process were done using Solidworks and chemical resistance were based on the standard chemical chart for common materials used for a reactor. The best material for the reactor is Stainless Steel 316 based on chemical chart, heat resistance and cost effective. The yielding of monomer is more than 100% by lab scale method with predetermined controlled parameters of stirring speed and temperature. There were small differences between every samples. At 80°C, the yielding of monomer is the highest while the by product (water) is the lowest. Meanwhile, at 60°C the monomer yielding is the lowest with highest by-product.

• Periodical: Key Engineering Materials (Volumes 594-595)
• Pages: 339-343
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.594-595.339
• Online since: December 2013
• Authors: Anika Zafiah M. Rus, Muhamad Soqhimi Mohamad Isa, Syaafa’at S. Yaanuur, E.S. Masli
• Keywords: Bio-Monomer, Design Optimization, Reactor, Scale-Up Process

References

[1] E. Bruce Nauman, Chemical Reactor Design, Optimization, And Scaleup, McGraw-Hill, (2002).

[2] R. G. Budynas, J. Keith Nisbett, Shigley's Mechanical Engineering Design, ninth edition.

[3] R.J. Eggert, Engineering Design. Boise State University (2005). ISBN: 0-13-1433584.

[4] T. Meyer, Scale-Up of Polymerization Process: A Practical Example(American Chemical Society, Switzerland, March 12, 2003).

[5] M. Rus Anika Zafiah, Muhamad Soqhimi Mohamad Isa, and NurulSaidatulSyida Sulong: Scaling Up Manufacturing Process Output of a Monomer Processing Reactor, Advanced Materials Research Vol. 748 (2013), pp.299-303.

DOI: 10.4028/www.scientific.net/amr.748.299

[6] E. Bruce Nauman, Chemical Reactor Design, Optimization, And Scaleup, McGraw-Hill, (2002).

[7] D. A. Hickman, Meinolf Weidenbach, D. P. Friedhoff. A comparison of a batch recycle reactor and an integral reactor with fines for scale-up of an industrial trickle bed reactor from laboratory data, Chemical Engineering Science 59 (2004).

DOI: 10.1016/j.ces.2004.07.011

[8] K. Zhang, Y. Zhao, Ascale-up strategy for low-temperature methanol synthesis in a circulating slurry bubble reactor, Chemical Engineering Science 61 (2006) 1459 – 1469, Elsevier.

DOI: 10.1016/j.ces.2005.08.040

[9] M. Rus Anika Zafiah: Effect of Titanium Dioxide on Material Properties for Renewable Rapeseed and Sunflower Polyurethane, International Journal of Integrated Engineering (Issues on Mechanical, Materialsand Manufacturing Engineering), Vol. 1 (2009).

[10] M. Rus Anika Zafiah, Degradation Studies of Polyurethanes Based On Vegetables Oils. (Part I). Prog in Reaction Kinetic And Mechanism, Science Reviews, Vol. 33 (2008), pp.363-391.

[11] M. Rus Anika Zafiah, Material Properties of Novelty Polyurethane Based On Vegetable Oils, The 11th International Conference on QiR (Quality in Research), Depok, Indonesia, (3-6 August 2009).

[12] M. Rus Anika Zafiah: Degradation Studies of Polyurethanes Based on Vegetable Oils. Part 2; Thermal Degradation and Materials Properties, Prog React Kinetic and Mechanism, Science Reviews, Vol. 34 (2009), pp.1-43.

DOI: 10.3184/146867809x425749

[13] AZM Rus, R Abd Rahim, ASA Bakhtiar : Preliminary Fabrication of Polymer Membranes from Renewable Resources, Applied Mechanics And Materials 315 (2013), 448-452.

DOI: 10.4028/www.scientific.net/amm.315.428

[14] AZM Rus, SR Mohid, NH Harun : Influence of Bio Polymer Composites as Heat Absorption Coating, Applied Mechanics And Materials 315 (2013), 404-407.

DOI: 10.4028/www.scientific.net/amm.315.404
