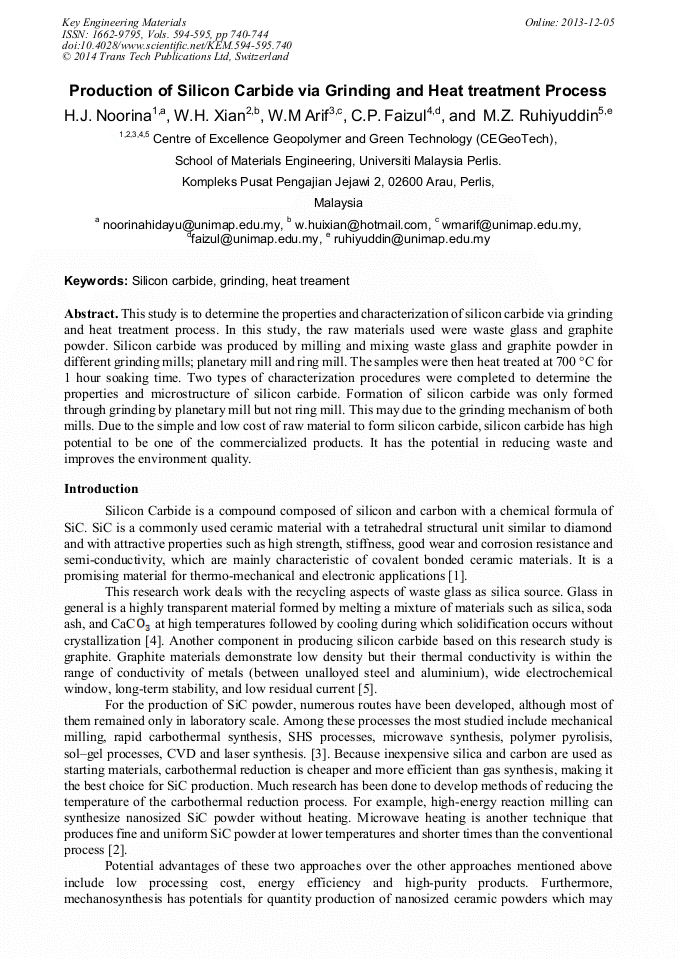

Production of Silicon Carbide via Grinding and Heat Treatment Process

Abstract:

This study is to determine the properties and characterization of silicon carbide via grinding and heat treatment process. In this study, the raw materials used were waste glass and graphite powder. Silicon carbide was produced by milling and mixing waste glass and graphite powder in different grinding mills; planetary mill and ring mill. The samples were then heat treated at 700 °C for 1 hour soaking time. Two types of characterization procedures were completed to determine the properties and microstructure of silicon carbide. Formation of silicon carbide was only formed through grinding by planetary mill but not ring mill. This may due to the grinding mechanism of both mills. Due to the simple and low cost of raw material to form silicon carbide, silicon carbide has high potential to be one of the commercialized products. It has the potential in reducing waste and improves the environment quality.

• Periodical: Key Engineering Materials (Volumes 594-595)
• Pages: 740-744
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.594-595.740
• Online since: December 2013
• Authors: Hidayu Jamil Noorina, W.H. Xian, Wan Mohd Arif, Faizul Che Pa, Ruhiyuddin Mohd Zaki
• Keywords: Grinding, Heat Treatment, Silicon Carbide (SiC)

References

[1] Dehghanzadeh, M., Ataie, A., & Heshmati-Manesh, S. (2012). Synthesis of nanosized silicon carbide powder by carbothermal reduction of SiO2. International Journal of Modern Physics: Conference Series, Vol. 5, 263-269.

DOI: 10.1142/s2010194512002115

[2] Larpkiattaworn, S., Ngernchuklin, P., Khongwong, W., Pankurddee, N., & Wada, S. (2006). The influence of reaction parameters on the free Si and C contents in the synthesis of nano-sized SiC. Ceramics International, 32, 899-904.

DOI: 10.1016/j.ceramint.2005.06.011

[3] Károly, Z., Mohai, I., Klébert, Sz., Keszler, A., Sajó, I. E., & Szépvölgyi, J. (2011). Synthesis of SiC powder by RF plasma technique. Powder Technology 214, 300-305.

DOI: 10.1016/j.powtec.2011.08.027

[4] Park, S. B., Lee, B. C., & Kim, J. H. (2004). Studies on mechanical properties of concrete containing waste glass aggregate. Cement and Concrete Research, 3, 2181–2189.

DOI: 10.1016/j.cemconres.2004.02.006

[5] Zhang, X., Cui, Y., Lv, Z., Li, M., Ma, S., Cui, Z., & Kong, Q. (2011). Carbon nanotubes, Conductive Carbon Black and Graphite Powder Based Paste Electrodes. Int. J. Electrochem. Sci., 6, 6063 – 6073.

[6] Yang, Z. G., & Shaw, L. L. (1996). Synthesis of nanocrystalline SiC at ambient temperature through high energy reaction milling. NanoStructured Materials, Vol. 7, No. 8, pp.873-886.

DOI: 10.1016/s0965-9773(96)00058-x

[7] Palaniandy, S., Aishah, K. Z., & Zuhailawati, H. (2010). Mechanochemical synthesis of nanostructured SiO2–SiC composite through high-energy milling. Journal of Alloys and Compounds, 502, 250–256.

DOI: 10.1016/j.jallcom.2010.04.158

[8] Palaniandy, S., Roshaida, A., & Munirah, O. (2011). Preparation of iron oxide nanoparticles by mechanical milling. Minerals Engineering, 24, 1–9.

DOI: 10.1016/j.mineng.2010.08.025
