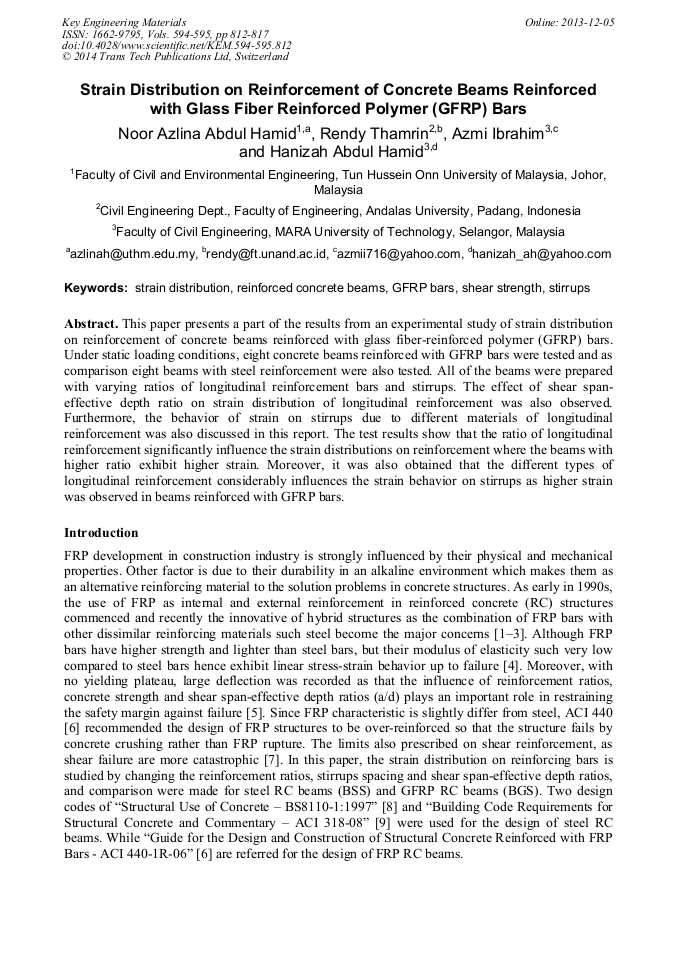

Strain Distribution on Reinforcement of Concrete Beams Reinforced with Glass Fiber Reinforced Polymer (GFRP) Bars

Abstract:

This paper presents a part of the results from an experimental study of strain distribution on reinforcement of concrete beams reinforced with glass fiber-reinforced polymer (GFRP) bars. Under static loading conditions, eight concrete beams reinforced with GFRP bars were tested and as comparison eight beams with steel reinforcement were also tested. All of the beams were prepared with varying ratios of longitudinal reinforcement bars and stirrups. The effect of shear span-effective depth ratio on strain distribution of longitudinal reinforcement was also observed. Furthermore, the behavior of strain on stirrups due to different materials of longitudinal reinforcement was also discussed in this report. The test results show that the ratio of longitudinal reinforcement significantly influence the strain distributions on reinforcement where the beams with higher ratio exhibit higher strain. Moreover, it was also obtained that the different types of longitudinal reinforcement considerably influences the strain behavior on stirrups as higher strain was observed in beams reinforced with GFRP bars.

• Periodical: Key Engineering Materials (Volumes 594-595)
• Pages: 812-817
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.594-595.812
• Online since: December 2013
• Authors: Azlina Abdul Hamid Noor, Thamrin Rendy, Ibrahim Azmi, Hanizah Abdul Hamid
• Keywords: GFRP Bars, Reinforced Concrete (RC) Beam, Shear Strength, Stirrups, Strain Distribution

References

[1] L. C. Hollaway: A Review of the Present and Future Utilisation of FRP Composites in the Civil Infrastructure with Reference to their Important In-Service Properties, Constr. Build. Mater., Vol. 24 (2010), p.2419–2445.

DOI: 10.1016/j.conbuildmat.2010.04.062

[2] L. C. Hollaway: The Evolution of and the Way Forward for Advanced Polymer Composites in the Civil Infrastructure, Constr. Build. Mater., Vol. 17 (2003), p.365–378.

DOI: 10.1016/s0950-0618(03)00038-2

[3] Task Group 9. 3: FRP Reinforcement in RC Structures (fib. CEB. FIP Anex B, 2007).

[4] M. Robert and B. Benmokrane: Physical , Mechanical , and Durability Characterization of Preloaded GFRP Reinforcing Bars, Comp. of Constr., Vol. 14 (2010), p.368–375.

DOI: 10.1061/(asce)cc.1943-5614.0000104

[5] M. S. Alam and A. Hussein: Experimental Investigation on the Effect of Longitudinal Reinforcement on Shear Strength of Fibre Reinforced Polymer Reinforced Concrete Beams, Can. J. Civ. Eng., Vol. 38 (2011), p.243–251.

DOI: 10.1139/l10-126

[6] Committee 440 ACI: Guide for the Design and Construction of Structural Concrete Reinforced with FRP Bars (ACI 440-1R-06), Farminton Hills, MI: American Concrete Institute (2006), p.44.

DOI: 10.14359/51700867

[7] N. Subramanian: Limiting Reinforcement Ratios for RC Flexural Members, Ind. Conc (2010), p.71–80.

[8] British Standard Institution (BSI): BS 8110-1: 1997, Structural Use of Concrete, Code of Practice for Design and Construction, Part 1, BSI, London (1997), p.172.

[9] Committee 318 ACI: Building Code Requirements for Structural Concrete and Commentary (ACI 318-08), Farminton Hills, MI: American Concrete Institute (2008), p.446.

DOI: 10.1061/(asce)1076-0431(1996)2:3(120.3)

[10] F. M. Wegian and H. A. Abdalla: Shear Capacity of Concrete Beams Reinforced with Fiber Reinforced Polymers, Comp. Struc. Vol 71 (2005), p.130–138.

DOI: 10.1016/j.compstruct.2004.10.001

[11] N. A. A. Hamid, A. Ibrahim, R. Thamrin and H. A. Hamid: Experimental Investigation on the Shear Behaviour of Concrete Beams Reinforced with GFRP Reinforcement Bars, Advanc. Mater. Research, Vol. 626 (2012), p.559–563.

DOI: 10.4028/www.scientific.net/amr.626.559
