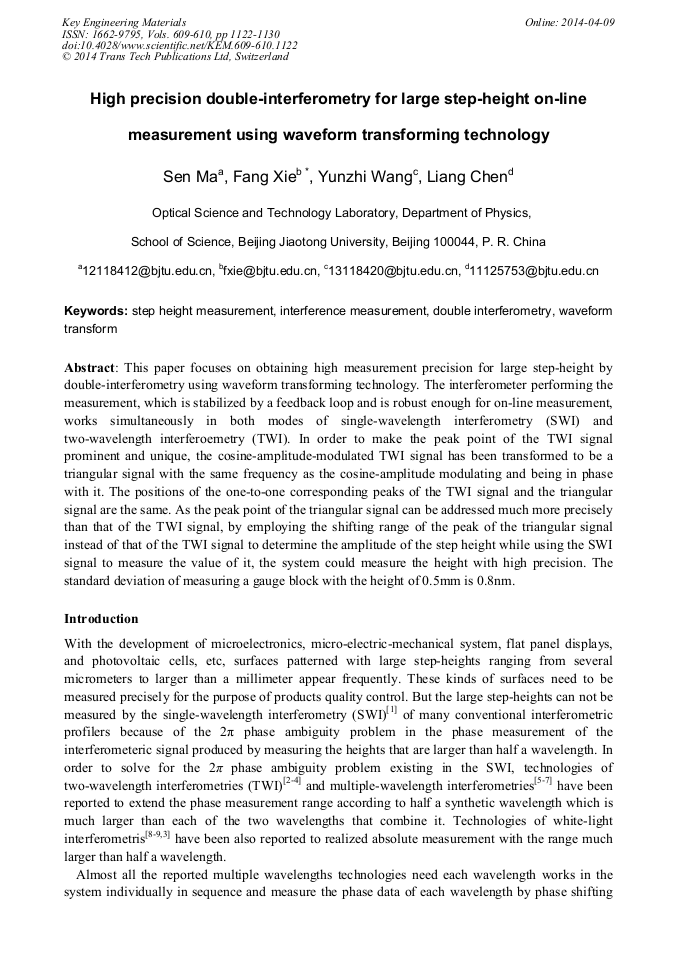

High Precision Double-Interferometry for Large Step-Height On-Line Measurement Using Waveform Transforming Technology

Abstract:

This paper focuses on obtaining high measurement precision for large step-height by double-interferometry using waveform transforming technology. The interferometer performing the measurement, which is stabilized by a feedback loop and is robust enough for on-line measurement, works simultaneously in both modes of single-wavelength interferometry (SWI) and two-wavelength interferoemetry (TWI). In order to make the peak point of the TWI signal prominent and unique, the cosine-amplitude-modulated TWI signal has been transformed to be a triangular signal with the same frequency as the cosine-amplitude modulating and being in phase with it. The positions of the one-to-one corresponding peaks of the TWI signal and the triangular signal are the same. As the peak point of the triangular signal can be addressed much more precisely than that of the TWI signal, by employing the shifting range of the peak of the triangular signal instead of that of the TWI signal to determine the amplitude of the step height while using the SWI signal to measure the value of it, the system could measure the height with high precision. The standard deviation of measuring a gauge block with the height of 0.5mm is 0.8nm.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 1122-1130
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.1122
• Online since: April 2014
• Authors: Sen Ma, Fang Xie*, Yun Zhi Wang, Liang Chen
• Keywords: Double Interferometry, Interference Measurement, Step Height Measurement, Waveform Transform

References

[1] J. C. Wyant, Interferometric optical metrology: basic principle and new systems, Laser Focus. 18(1982) 65-71.

[2] Yeou-Yen Cheng, James C. Wyant, Two-wavelength phase shifting interferometry, Applied Optics. 24(1984) 4539-4543.

DOI: 10.1364/ao.23.004539

[3] Fang Xie, Min Li, Ding Song, Jinling Sun, Tao Zhang, Large range and high resolution on-line displacement measurement system by combing double-interferometries, Opt. Express. 24(2010) 24961-24968.

DOI: 10.1364/oe.18.024961

[4] R. Dandliker, R. Thalmann, D. Prongué, Two-wavelength laser interferometry using superheterodyne detection, Opt. Lett. 13 (1988) 339-341.

DOI: 10.1364/ol.13.000339

[5] Yeou-Yen Cheng, James C. Wyant, Multiple-wavelength phase shifting interferometry, Applied Optics. 24(1985) 804-807.

DOI: 10.1364/ao.24.000804

[6] R. Dandliker, K. Hug, J. Politch, E. Zimmermann, High accuracy distance measurement with multiple-wavelength interferometry, Opt. Eng. 34(1985) 2407-2412.

[7] Sangwon Hyun, Minah Choi, Byung Jae Chun, Seuugman Kim, Seuug-Woo Kim, Yonng-Jin Kim, Frequency-comb-referenced multi-wavelength profilometry for largely stepped surfaces, Opt. Express. 21(2013) 9780-9791.

DOI: 10.1364/oe.21.009780

[8] P. de Groot, L. Deck, Three-dimensional imaging by sub-Nyquist sampling of white-light interferograms, Opt. Lett. 18(1993) 1462-1464.

DOI: 10.1364/ol.18.001462

[9] Yun-Jiang Rao, David A Jackson, Recent progress in fibre optic low-coherence interferometry, Meas. Sci. Technol. 7(1996) 981-999.

DOI: 10.1088/0957-0233/7/7/001
