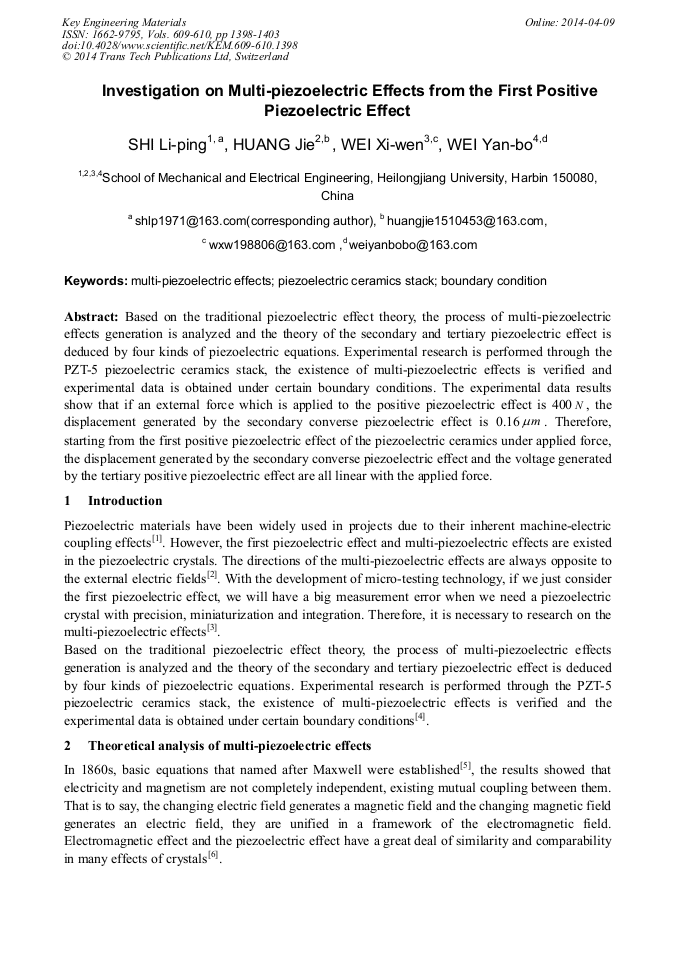

Investigation on Multi-Piezoelectric Effects from the First Positive Piezoelectric Effect

Abstract:

Based on the traditional piezoelectric effect theory, the process of multi-piezoelectric effects generation is analyzed and the theory of the secondary and tertiary piezoelectric effect is deduced by four kinds of piezoelectric equations. Experimental research is performed through the PZT-5 piezoelectric ceramics stack, the existence of multi-piezoelectric effects is verified and experimental data is obtained under certain boundary conditions. The experimental data results show that if an external force which is applied to the positive piezoelectric effect is 400, the displacement generated by the secondary converse piezoelectric effect is 0.16. Therefore, starting from the first positive piezoelectric effect of the piezoelectric ceramics under applied force, the displacement generated by the secondary converse piezoelectric effect and the voltage generated by the tertiary positive piezoelectric effect are all linear with the applied force.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 1398-1403
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.1398
• Online since: April 2014
• Authors: Li Ping Shi*, Jie Huang, Xi Wen Wei, Yan Bo Wei
• Keywords: Boundary Condition, Multi-Piezoelectric Effects, Piezoelectric Ceramics Stack

References

[1] HONG Jun-liu, HUI Gao. Research on jetting process of micro-droplet jetting technique based on coverse piezoelectric effect[J]. Digital Manufacturing and Automation(ICDMA). 2010, 2: 224-227.

DOI: 10.1109/icdma.2010.159

[2] ZHANG Zhong-hua, SUN Bao-yuan, QIAN Min. Influence of Multiple Piezoelectric Effect on Static Performance of Piezoelectric Sensor[J]. Piezoelectrics and Acousto-optics. 2009, 31(3): 360-363.

[3] LIN Yang, QING Jun-ding. Piezoelectric drill based on converse piezoelectric effect[J]. Piezoelectricity, Acoustic Waves, and Device Applications. 2008: 143-146.

DOI: 10.1109/spawda.2008.4775766

[4] ZHANG Fu-xue, WANG Li-kun. Modern Piezoelectric Study[M]. Beijing: Science Press, (2001).

[5] SHI Li-ping, WEI Xi-wen, WEI Yan-bo. Comparative Analysis on Piezoelectric Effect and Electromagnetic Effect for the Further Study of Multi-piezoelectric Effect[J]. International Conference on Measurement, Information and Control(MIC). 2012: 907-911.

DOI: 10.1109/mic.2012.6273433

[6] ZHANG Zhong-hua, SUN Bao-yuan, QIAN Min, ZHANG Jun. Research of Self-sensingActuator Based on Multiple Piezoelectric Effect[J]. Journal of Dalian University of Technology, 2010, 50(5): 677-681.

[7] SHI Li-ping, SUN Bao-yuan, QIAN Min. Secondary Piezoelectric Effect and Its Application to the Design of Micro-drive[J]. Journal of Harbin Institute of Technology. 2005, 37(11): 1522-1525.

[8] ZHANG Zhong-hua, WANG Shu-yun. Influence of Multiple Piezoelectric Effect on Was Coefficient on Piezoelectric Quartz[J]. Nanotechnology and Precision Engineering. 2013, 11(1): 45-50.

[9] ZHANG Zhong-hua, KAN Jun-wu, WANG Hong-yun. Micro-actuator Based on Multiple Piezoelectric Effect[J]. Chinese Journal of Scientific Instrument. 2011, 32(9): 1998-(2003).
