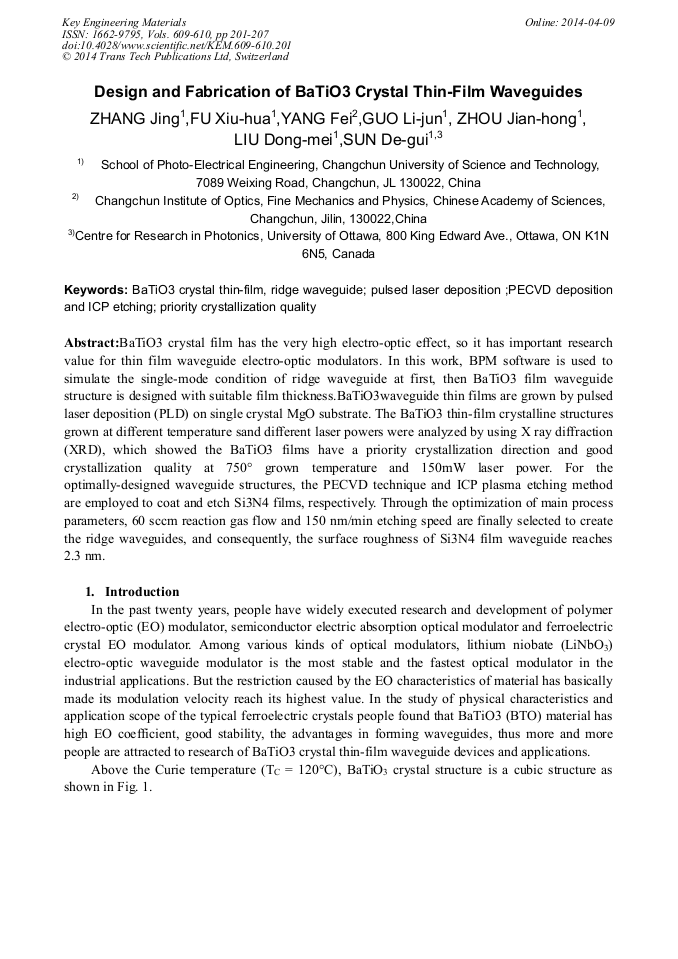

Design and Fabrication of BaTiO₃ Crystal Thin-Film Waveguides

Abstract:

BaTiO₃ crystal film has the very high electro-optic effect, so it has important research value for thin film waveguide electro-optic modulators. In this work, BPM software is used to simulate the single-mode condition of ridge waveguide at first, then BaTiO₃ film waveguide structure is designed with suitable film thickness.BaTiO₃ waveguide thin films are grown by pulsed laser deposition on single crystal MgO substrate. The BaTiO₃ thin-film crystalline structures grown at different temperature sand different laser powers were analyzed by using X ray diffraction , which showed the BaTiO₃ films have a priority crystallization direction and good crystallization quality at 750°C grown temperature. For the optimally-designed waveguide structures, the PECVD technique and ICP plasma etching method are employed to coat and etch Si₃N₄ films, respectively. Through the optimization of main process parameters, 60 sccm reaction gas flow and 150 nm/min etching speed are finally selected to create the ridge waveguides, and consequently, the surface roughness of Si₃N₄ film waveguide reaches 2.3 nm.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 201-207
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.201
• Online since: April 2014
• Authors: Jing Zhang, Xiu Hua Fu, Li Jun Guo, Jian Hong Zhou, Dong Mei Liu, Deg Gui Sun
• Keywords: BaTiO₃ Crystal Thin-Film, ICP Etching, PECVD Deposition, Priority Crystallization Quality, Pulsed Laser Deposition, Ridge Waveguide

References

[1] D. -G. Sun, Z. Liu, Y. Huang, S. -T. Ho, D. J. Towner, and B. W. Wessels, Performance simulation for ferroelectric thin-film based waveguide electro-optic modulators [J], Opt. Commun. 2005, 255: 319-330.

DOI: 10.1016/j.optcom.2005.06.028

[2] W. Li, D. G. Sun, et al, Design and fabrication of a micro-optic switch, Optics Express 16(9), 6324-6330 (2008).

[3] QIU Yang, XIONG Jie, TAO Bo-wan. Preparation of YBCO high temperature superconducting thin films on MgO substrate[J]. Superconductivity, 2007, 35(2): 110–113.

[4] FAN Chong-cheng, PENG Ji-hu. Guidewave optics[M]Bei jing: Beijing institute of technology press, (1998).

[5] JIE Wen-jing, ZHANG Ying. Influence of growth temperature on the microstructure and dielectric properties of Ba(Zr0. 2Ti0. 8)O3 thin films on dingle crystal oxide substrates [J]. Journal of the Chinese Ceramic Society, 2009, 37(8): 1424–1428.

[6] P. Bernasconi, M. Zgonik, and P. Gunter, Temperature dependence and dispersion of electro-optic and elasto-optic effect in perovskitecrystals[J], J. Apply. Phys. 1995, 78(4): 2651-2658.

DOI: 10.1063/1.360126
