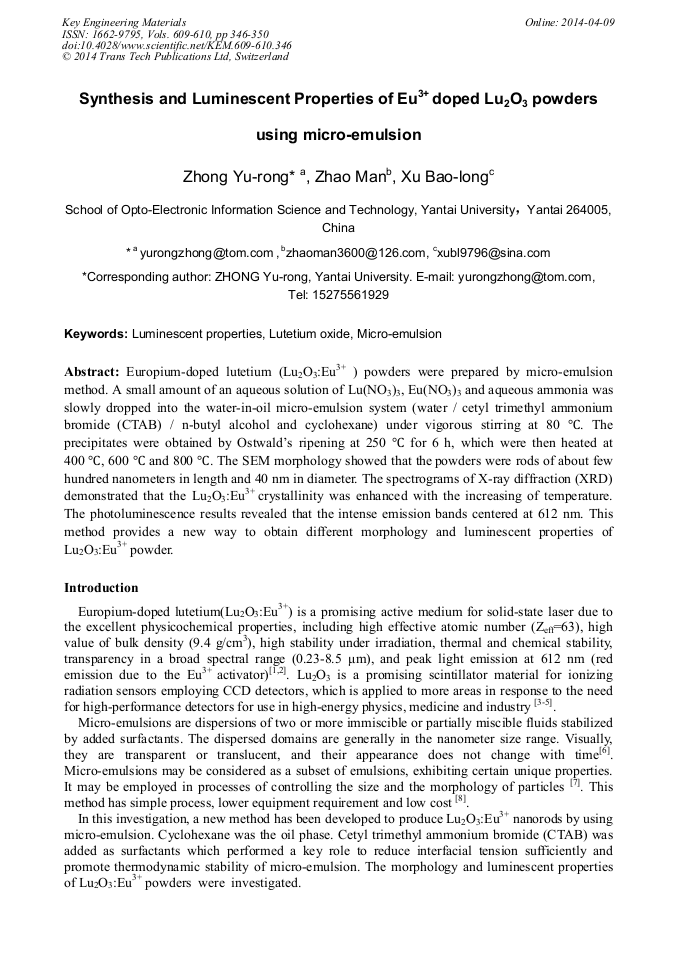

Synthesis and Luminescent Properties of Eu³⁺ Doped Lu₂O₃ Powders Using Micro-Emulsion

Abstract:

Europium-doped lutetium (Lu2O3:Eu3+ ) powders were prepared by micro-emulsion method. A small amount of an aqueous solution of Lu(NO3)3, Eu(NO3)3 and aqueous ammonia was slowly dropped into the water-in-oil micro-emulsion system (water / cetyl trimethyl ammonium bromide (CTAB) / n-butyl alcohol and cyclohexane) under vigorous stirring at 80 °C. The precipitates were obtained by Ostwald’s ripening at 250 °C for 6 h, which were then heated at 400 °C, 600 °C and 800 °C. The SEM morphology showed that the powders were rods of about few hundred nanometers in length and 40 nm in diameter. The spectrograms of X-ray diffraction (XRD) demonstrated that the Lu2O3:Eu3+ crystallinity was enhanced with the increasing of temperature. The photoluminescence results revealed that the intense emission bands centered at 612 nm. This method provides a new way to obtain different morphology and luminescent properties of Lu2O3:Eu3+ powder.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 346-350
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.346
• Online since: April 2014
• Authors: Yu Rong Zhong*, Man Zhao, Bao Long Xu
• Keywords: Luminescent Properties, Lutetium Oxide, Micro-Emulsion

References

[1] E. Zych, D. Hreniak, W. Strek, Cathodoluminescence of Lu2O3: Tb, Radiation Effects and Defects in Solids. 157 (2002) 6-12.

DOI: 10.1080/10420150215797

[2] E. Zych, D. Hreniak, W. Strek, Spectroscopic Properties of Lu2O3: Eu3+ nanocrystalline powders and sintered ceramics, J. Phys. Chem. B. 106 (2002) 3805-3812.

DOI: 10.1021/jp012468+

[3] E. Zych, J. Trojan-Piegza, P. Dorenbos, Radioluminescence of Lu2O3: Eu nanocrystalline powder and vacuum-sintered ceramic, Radiation Measurements. 38 (2004) 471-474.

DOI: 10.1016/j.radmeas.2004.03.027

[4] A. Lempicki, C. Brecher, P. Szupryczynski, el al. A new lutetia-based ceramic scintillator for X-ray imaging, Nucl. Instrum. Meth. A. 488 (2002) 579-590.

DOI: 10.1016/s0168-9002(02)00556-9

[5] Wang Lin-xiang, Zhu Hengjiang, Yin Min. Fabrication and luminescent properties of Eu3+-doped Lu2O3 nanopowders and transparent ceramics, Chinese Journal of Luminescence. 32 (2011) 913-919.

DOI: 10.3788/fgxb20113209.0913

[6] Julian Eastoe1, Marios Hopkins Hatzopoulos, Rico Tabor, Microemulsions, in: Tharwat Tadros (Eds. ), Encyclopedia of Colloid and Interface Science, Springer Berlin Heidelberg, Bristol, 2013, pp.688-729.

DOI: 10.1007/978-3-642-20665-8_25

[7] Fang Xiao-long, Yang Chuan-fang, Chen Jia-yong, Synthesis of ZrO2 nanoparticles by using CTAB/Hexanol/Water/Salts reversed micelles, Engineering Chemistry&Metallurgy. 18 (1997) 67-71.

[8] P. Bamickel, A. Warkaun, W. Sager, et al. Size tailoring of silver colloids reduction in W/O micro-emulsions, Journal of Colloid and Interface Science. 148 (1992) 80-90.

DOI: 10.1016/0021-9797(92)90116-4

[9] Wang X, Li Y D. Rare-earth-compound nanowires, nanotubes, and fullerene-like nanoparticles: synthesis, characterization, and properties, Chem. Eur. J. 9 (2003) 5627-5635.

DOI: 10.1002/chem.200304785

[10] Qiu Huajun, Shi Ying, Xie Jianjun, et al. Synthesis of nonosized Lu2O3 powders with different morphologies by solvothermal method, Journal of Synthetic Crystals. 39 (2010) 422-427.

[11] Jerzy Sokolnicki, Photoluminescence and structural characteristics of Lu2O3: Eu3+ nanocrystallites in silica matrix, Journal of Solid State Chemistry. 180 (2007) 2400-2408.

DOI: 10.1016/j.jssc.2007.06.015
