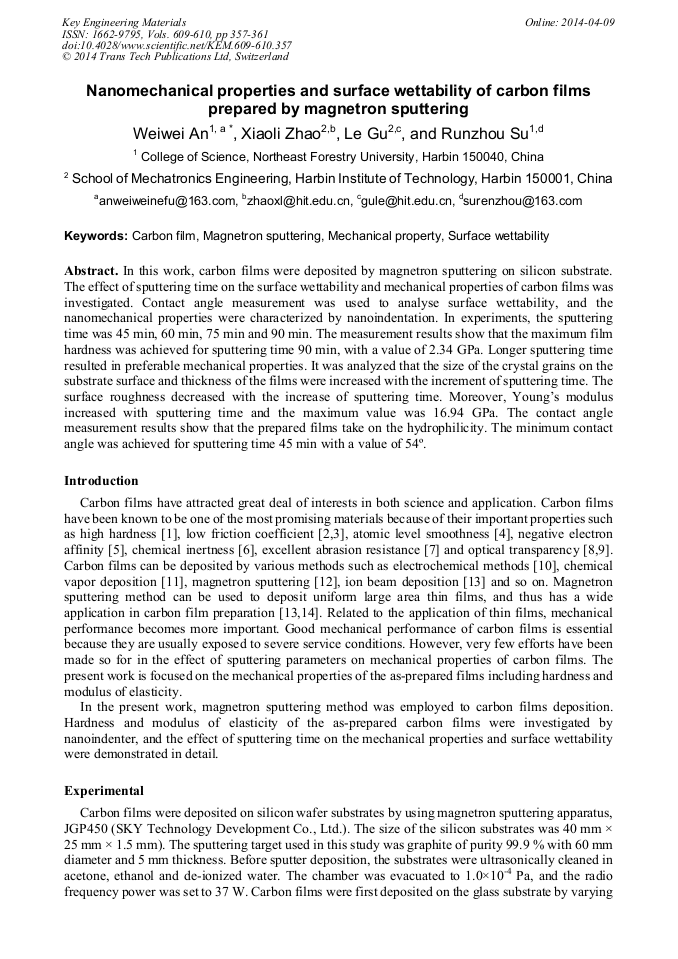

Nanomechanical Properties and Surface Wettability of Carbon Films Prepared by Magnetron Sputtering

Abstract:

In this work, carbon films were deposited by magnetron sputtering on silicon substrate. The effect of sputtering time on the surface wettability and mechanical properties of carbon films was investigated. Contact angle measurement was used to analyse surface wettability, and the nanomechanical properties were characterized by nanoindentation. In experiments, the sputtering time was 45 min, 60 min, 75 min and 90 min. The measurement results show that the maximum film hardness was achieved for sputtering time 90 min, with a value of 2.34 GPa. Longer sputtering time resulted in preferable mechanical properties. It was analyzed that the size of the crystal grains on the substrate surface and thickness of the films were increased with the increment of sputtering time. The surface roughness decreased with the increase of sputtering time. Moreover, Youngs modulus increased with sputtering time and the maximum value was 16.94 GPa. The contact angle measurement results show that the prepared films take on the hydrophilicity. The minimum contact angle was achieved for sputtering time 45 min with a value of 54o.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 357-361
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.357
• Online since: April 2014
• Authors: Wei Wei An*, Xiao Li Zhao, Le Gu, Run Zhou Su
• Keywords: Carbon Film, Magnetron Sputtering, Mechanical Property, Surface Wettability

References

[1] A. Mitsuo, S. Uchida, K. Morikawa, M. Kawaguchi, K. Shiotani and H. Suzuki, Effect of deposition parameter on hardness of amorphous carbon film prepared by plasma immersion ion implantation using C2H2, Nucl. Instr. Meth. Phys. Res. B. 257 (2007).

DOI: 10.1016/j.nimb.2007.01.142

[2] A. Erdemir, O.L. Eryilmaz and G. Fenske, Synthesis of diamondlike carbon films with superlow friction and wear properties, J. Vac. Sci. Technol. A. 18 (2000) 1987-(1992).

DOI: 10.1116/1.582459

[3] L. Wei, B. zhang, Y. Zhou, L. Qiang and J.Y. Zhang, Ultra-low friction of fluorine-doped hydrogenated carbon film with curved graphitic structure, Surf. Interface Anal. 45 (2013) 1233-1237.

DOI: 10.1002/sia.5260

[4] X.L. Peng, Z.H. Barber and T.W. Clyne, Surface roughness of diamond-like carbon films prepared using various techniques, Surf. Coat. Technol. 138 (2001) 23-32.

DOI: 10.1016/s0257-8972(00)01139-7

[5] A.H.C. Sirk, D.R. Sadoway, Electrochemical synthesis of diamondlike carbon films, J. Electrochem. Soc. 155 (5) (2008) E49-E55.

DOI: 10.1149/1.2883729

[6] P.K. Chu, L.H. Li, Characterization of amorphous and nanocrystalline carbon films, Mater. Chem. Phys. 96 (2006) 253-277.

[7] J.F. Cui, L. Qiang, B. Zhang, T. Yang and J.Y. Zhang, Lower friction and higher wear resistance of fluorine-incorporated amorphous carbon films, Surf. Interface Anal. 45 (2013) 1329-1333.

DOI: 10.1002/sia.5283

[8] F.W. Smith, Optical constants of a hydrogenated amorphous carbon film, J. Appl. Phys. 55 (1984) 764-771.

[9] D.M. Sedlovets, A.N. Red'kin, V.I. Korepanov and O.V. Trofimov, Electrical conductivity and optical properties of thin carbon films grown from ethanol vapor, Inorg. Mater. 48 (2012) 34-39.

DOI: 10.1134/s0020168511120168

[10] X.B. Yan, T. Xu, G. Chen, H.W. Liu and S.R. Yang, Effect of deposition voltage on the microstructure of electrochemically deposited hydrogenated amorphous carbon films, Carbon. 42 (2004) 3103-3108.

DOI: 10.1016/j.carbon.2004.07.016

[11] L. H Lai, S.T. Shiue, Effects of acetylene/ammonia mixtures on the properties of carbon films prepared by thermal chemical vapor deposition, Surf. Coat. Technol. 215 (2013) 161-169.

DOI: 10.1016/j.surfcoat.2012.10.068

[12] W.H. Jin, K. Feng, Z.G. Li, X. Cai, L. Yu, D.H. Zhou and P.K. Chu, Properties of carbon film deposited on stainless steel by close field unbalanced magnetron sputter ion plating, Thin Solid Films. 531 (2013) 320-327.

DOI: 10.1016/j.tsf.2013.01.036

[13] S. Tamulevicius, V. Kopustinskas, S. Meskinis, L. Augulis, Mechanical properties of ion beam deposited carbon films, Carbon. 42 (2004) 1085-1088.

DOI: 10.1016/j.carbon.2003.12.040

[14] Y. Zhou, B. Wang, X.H. Zhang, M. Zhao, E. Li and H. Yan, The modification of the surface wettability of amorphous carbon films, Colloid Surf. A: Physicochem. Eng. Asp. 335 (2009) 128-132.

[15] R.N. Wenzel, Resistance of solid surfaces to wetting by water, Ind. Eng. Chem. 28 (1936) 988-994.

DOI: 10.1021/ie50320a024
