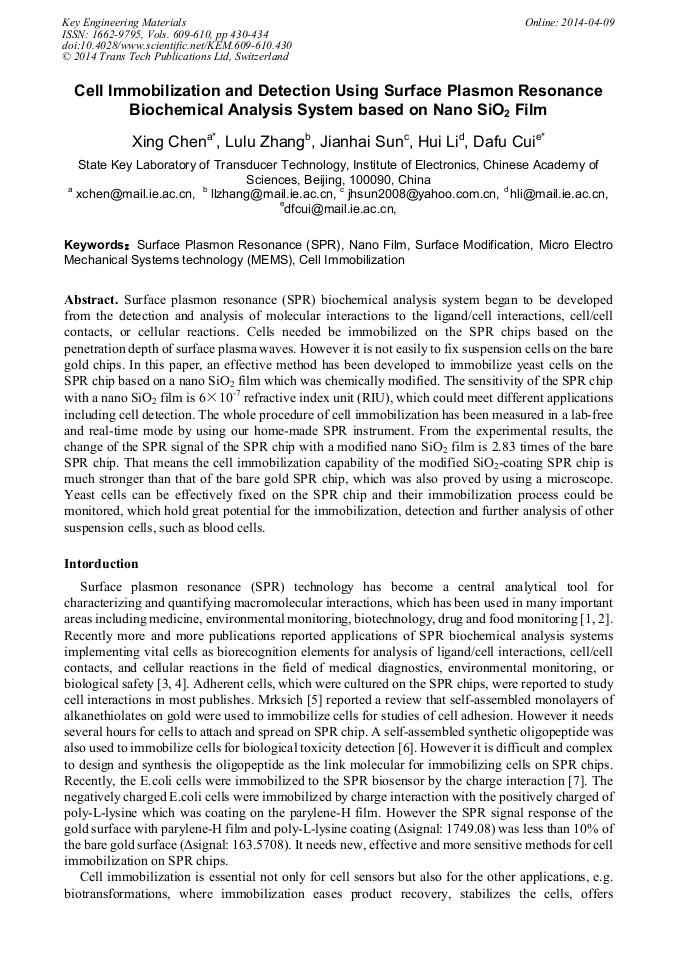

Cell Immobilization and Detection Using Surface Plasmon Resonance Biochemical Analysis System Based on Nano SiO₂ Film

Abstract:

Surface plasmon resonance (SPR) biochemical analysis system began to be developed from the detection and analysis of molecular interactions to the ligand/cell interactions, cell/cell contacts, or cellular reactions. Cells needed be immobilized on the SPR chips based on the penetration depth of surface plasma waves. However it is not easily to fix suspension cells on the bare gold chips. In this paper, an effective method has been developed to immobilize yeast cells on the SPR chip based on a nanoSiO₂ film which was chemically modified. The sensitivity of the SPR chip with a nanoSiO₂ film is 6×10^-7 refractive index unit (RIU), which could meet different applications including cell detection. The whole procedure of cell immobilization has been measured in a lab-free and real-time mode by using our home-made SPR instrument. From the experimental results, the change of the SPR signal of the SPR chip with a modified nanoSiO₂ film is 2.83 times of the bare SPR chip. That means the cell immobilization capability of the modified SiO₂-coating SPR chip is much stronger than that of the bare gold SPR chip, which was also proved by using a microscope. Yeast cells can be effectively fixed on the SPR chip and their immobilization process could be monitored, which hold great potential for the immobilization, detection and further analysis of other suspension cells, such as blood cells.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 430-434
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.430
• Online since: April 2014
• Authors: Xing Chen*, Lu Lu Zhang, Jian Hai Sun, Hui Li, Da Fu Cui
• Keywords: Cell Immobilization, Micro Electro Mechanical Systems Technology (MEMS), Nanofilm, Surface Modification, Surface Plasmon Resonance (SPR)

References

[1] J. Homola, S.S. Yee, G. Gauglitz, Surface plasmon resonance sensors: review [J]. Sensors and Actuators B, 54(1999) 3-15.

DOI: 10.1016/s0925-4005(98)00321-9

[2] S. Scarano, M. Mascini, A.P.F. Turner, M. Minunni, Surface plasmon resonance imaging for affinity-based biosensors [J]. Biosensors and Bioelectronics, 25(2010) 957-966.

DOI: 10.1016/j.bios.2009.08.039

[3] R. Robelek, Surface plasmon resonance sensors in cell biology: basics and application [J]. Bioanal Rev, 1(2009) 57–72.

DOI: 10.1007/s12566-009-0005-y

[4] W. Wang, Y. Yang, S.P. Wang, V.J. Nagaraj, Q. Liu, J. Wu, N.J. Tao, Label-free measuring and mapping of binding kinetics of membrane proteins in single living cells [J]. Nature Chemistry4(2012) 846-853.

DOI: 10.1038/nchem.1434

[5] M. Mrksich, A surface chemistry approach to studying cell adhesion [J]. Chem. Soc. Rev., 29(2000) 267-273.

DOI: 10.1039/a705397e

[6] J.W. Choi, K.W. Park, D.B. Lee, W.H. Lee, Cell immobilization using self-assembled synthetic oligopeptide and its application to biological toxicity detection using surface plasmon resonance[J]. Biosensors and Bioelectronics, 20(2005) 2300-2305.

DOI: 10.1016/j.bios.2004.11.019

[7] E.H. Lee,G. Yoo, J. Jose, M. Kang, S. Song, J. Pyun, SPR biosensor based on immobilized E. coli cells with autodisplayed Z-domains [J]. BioChip J., 6(2012) 221-228.

DOI: 10.1007/s13206-012-6304-3

[8] C.Y. Li, W. Yuan, H. Jiang, J.S. Li, F.J. Xu, W.T. Yang, J. Ma, PCL Film Surfaces Conjugated with P(DMAEMA)/Gelatin Complexes for Improving Cell Immobilization and Gene Transfection [J]. Bioconjugate Chem, 22(2011) 1842-1851.

DOI: 10.1021/bc200241m

[9] A. Altman, R.R. Colwell, Agricultural biotechnology [M]. Marcel Dekker, INC., New York, (1998).

[10] G. Stojkovič, P. Žnidaršič-Plazl, Immobilization of Yeast Cells Within Microchannels of Different Materials [J]. Acta Chim Slov, 57 (2010) 144-149.

[11] G. Stojkovič, P. Žnidaršič-Plazl, Continuous synthesis of l-malic acid using whole-cell microreactor [J]. Process Biochemistry, 47(2012) 1102-1107.

DOI: 10.1016/j.procbio.2012.03.023

[12] A. Muck, A. Svatoš, Chemical modification of polymeric microchip devices[J]. Talanta, 74(2007) 333-341.

[13] X. Chen, L. Zhang, H. Cai, H. Li, J. Sun, D.F. Cui, Electrokinetic microchip-based sample loading for surface plasmon resonance detection [J]. Micro & Nano Letters, 8 (2013) 47-51.

DOI: 10.1049/mnl.2012.0697

[14] D.F. Cui, H.Y. Cai, J.B. Wang, et al., Chinese Patent Appl. No. CN 200610066542. 4, 2006 [P].

[15] L.F. Hoyt, Determination of refractive index of glycerols by the immersion refractometer, Oil & Soap, 10(1933), 43–47.

DOI: 10.1007/bf02639078
