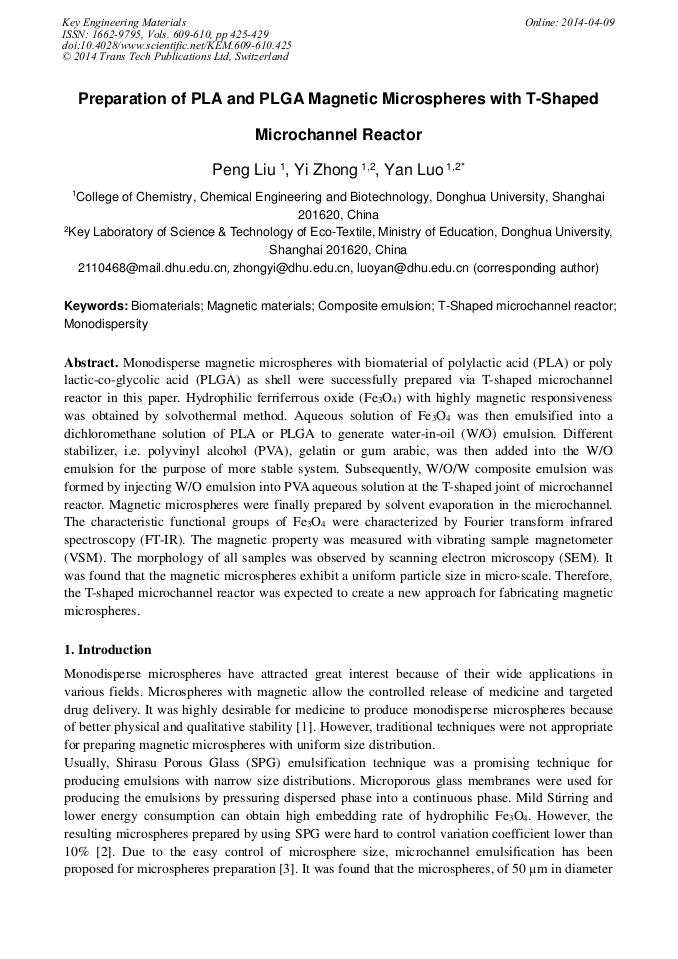

Preparation of PLA and PLGA Magnetic Microspheres with T-Shaped Microchannel Reactor

Abstract:

Monodisperse magnetic microspheres with biomaterial of polylactic acid (PLA) or poly lactic-co-glycolic acid (PLGA) as shell were successfully prepared via T-shaped microchannel reactor in this paper. Hydrophilic ferriferrous oxide (Fe₃O₄) with highly magnetic responsiveness was obtained by solvothermal method. Aqueous solution of Fe₃O₄ was then emulsified into a dichloromethane solution of PLA or PLGA to generate water-in-oil (W/O) emulsion. Different stabilizer, i.e. polyvinyl alcohol (PVA), gelatin or gum arabic, was then added into the W/O emulsion for the purpose of more stable system. Subsequently, W/O/W composite emulsion was formed by injecting W/O emulsion into PVA aqueous solution at the T-shaped joint of microchannel reactor. Magnetic microspheres were finally prepared by solvent evaporation in the microchannel. The characteristic functional groups of Fe₃O₄ were characterized by Fourier transform infrared spectroscopy (FT-IR). The magnetic property was measured with vibrating sample magnetometer (VSM). The morphology of all samples was observed by scanning electron microscopy (SEM). It was found that the magnetic microspheres exhibit a uniform particle size in micro-scale. Therefore, the T-shaped microchannel reactor was expected to create a new approach for fabricating magnetic microspheres.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 425-429
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.425
• Online since: April 2014
• Authors: Peng Liu, Yi Zhong, Yan Luo*
• Keywords: Biomaterial, Composite Emulsion, Magnetic Material, Monodispersity, T-Shaped Microchannel Reactor

References

[1] Kobayashi I, Nakajima M, Nabetani H, Kikuchi Y, Shohno A, Satoh K, Preparation of micron-scale monodisperse oil-in-water microspheres by microchannel emulsification, J. Am. Oil Chem. Soc. 78 (2001) 797-802.

DOI: 10.1007/s11746-001-0345-5

[2] Freitas S, Merkle HP, Gander B, Microencapsulation by solvent extraction/evaporation: reviewing the state of the art of microsphere preparation process technology, J. Controlled Release. 102 (2005) 313-332.

DOI: 10.1016/j.jconrel.2004.10.015

[3] van der Zwan E, Schroën K, Boom R, A geometric model for the dynamics of microchannel emulsification. Langmuir. 25 (2009) 7320-7327.

DOI: 10.1021/la900379n

[4] Sugiura S, Nakajima M, Seki M, Preparation of monodispersed polymeric microspheres over 50 μm employing microchannel emulsification, Ind. Eng. Chem. Fundam. 41 (2002) 4043-4047.

DOI: 10.1021/ie0201415

[5] Zhao C-X, Multiphase flow microfluidics for the production of single or multiple emulsions for drug delivery, Adv. Drug Deliv. Rev. (2013), http: /dx. doi. org/10. 1016/j. addr. 2013. 05. 009.

DOI: 10.1016/j.addr.2013.05.009

[6] Okushima S, Nisisako T, Torii T, Higuchi T, Controlled production of monodisperse double emulsions by two-step droplet breakup in microfluidic devices, Langmuir. 20 (2004) 9905-9908.

DOI: 10.1021/la0480336

[7] Fang J, Wang C, Cao M, Cheng M, Shi J, Jin Y, Preparation and properties of multi-functional Fe3O4@ PNIPAM-AAM@Au composites, Mater. Lett. 96 (2013) 89-92.

DOI: 10.1016/j.matlet.2013.01.016

[8] Ke CJ, Su TY, Chen HL, Liu HL, Chiang WL, Chu PC, et al, Smart multifunctional hollow microspheres for the quick release of drugs in intracellular lysosomal compartments, Angew. Chem. Int. Ed. 123 (2011) 8236-8239.

DOI: 10.1002/ange.201102852

[9] Kalita H, Karak N, Bio‐based hyperbranched polyurethane/Fe3O4 nanocomposites as shape memory materials, Polym. Adv. Technol. 24 (2013) 819-823.

DOI: 10.1002/pat.3149
