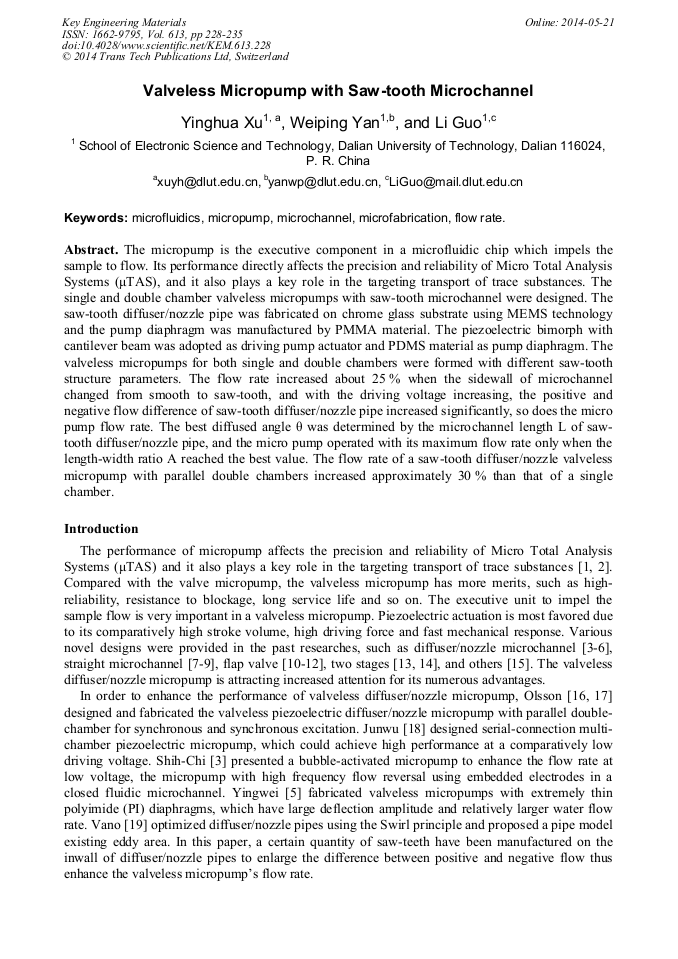

Valveless Micropump with Saw-Tooth Microchannel

Abstract:

The micropump is the executive component in a microfluidic chip which impels the sample to flow. Its performance directly affects the precision and reliability of Micro Total Analysis Systems (μTAS), and it also plays a key role in the targeting transport of trace substances. The single and double chamber valveless micropumps with saw-tooth microchannel were designed. The saw-tooth diffuser/nozzle pipe was fabricated on chrome glass substrate using MEMS technology and the pump diaphragm was manufactured by PMMA material. The piezoelectric bimorph with cantilever beam was adopted as driving pump actuator and PDMS material as pump diaphragm. The valveless micropumps for both single and double chambers were formed with different saw-tooth structure parameters. The flow rate increased about 25% when the sidewall of microchannel changed from smooth to saw-tooth, and with the driving voltage increasing, the positive and negative flow difference of saw-tooth diffuser/nozzle pipe increased significantly, so does the micro pump flow rate. The best diffused angle θ was determined by the microchannel length L of saw-tooth diffuser/nozzle pipe, and the micro pump operated with its maximum flow rate only when the length-width ratio A reached the best value. The flow rate of a saw-tooth diffuser/nozzle valveless micropump with parallel double chambers increased approximately 30% than that of a single chamber.

• Periodical: Key Engineering Materials (Volume 613)
• Pages: 228-235
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.613.228
• Online since: May 2014
• Authors: Ying Hua Xu*, Wei Ping Yan, Li Guo

References

[1] Laser, D.J. and Santiago, J.G., A Review of Micropumps, J. Micromech. Microeng., Vol. 14, No. 6, pp.35-64, (2004).

[2] P. Woias, Micropumps-past, progress and future prospects, Sens. and Actuators, B, Vol. 105, No. 1, pp.28-38, (2005).

DOI: 10.1016/s0925-4005(04)00108-x

[3] Shih-Chi, C., Chia-Ray, C., Cheng-Hsien, L., A bubble-activated micropump with high-frequency flow reversal, , Sens. and Actuators, A, Vol. 163, No. 2, pp.501-509, (2010).

DOI: 10.1016/j.sna.2010.08.026

[4] Yeng-Yung, T. and Shiue-Lin, L., Evaluation of the performance of a valveless micropump by CFD and lumped-system analyses, Sens. and Actuators, A, Vol. 148, No. 1, pp.138-148, (2008).

DOI: 10.1016/j.sna.2008.06.036

[5] Yingwei, L., Hiroki, K., Satomitsu, I. and Yasushiro, N., Planar diffuser/nozzle micropumps with extremely thin polyimide diaphragms, Sens. and Actuators, A, Vol. 169, No. 2, pp.259-265, (2011).

DOI: 10.1016/j.sna.2011.02.009

[6] Wiederkehr, R. S., Salvadori, M. C., Brugger, J., Degasperi, F. T., and Cattani, M., The gas flow rate increase obtained by an oscillating piezoelectric actuator on a micronozzle, Sens. and Actuators, A, Vol. 144, No. 1, pp.154-160, (2008).

DOI: 10.1016/j.sna.2007.12.024

[7] Jianke, K., Gregory, W, Auner., Simulation and verification of a piezoelectrically actuated diaphragm for check valve micropump design, Sens. and Actuators, A, Vol. 167, No. 2, pp.512-516, (2011).

DOI: 10.1016/j.sna.2011.01.012

[8] Bonnie, T. C., Hsin-Hung, L., and Yao-Joe, Y., A novel thermo-pneumatic peristaltic micropump with low temperature elevation on working fluid, Sens. and Actuators, A, Vol. 165, No. 1, pp.86-93, (2011).

DOI: 10.1016/j.sna.2010.02.018

[9] Lemmens, R. J. and Dennis, D. M., A comparative study on bubble-driven micropumping in microchannels with square and circular cross sections, Sens. and Actuators, A, Vol. 169, No. 1, pp.164-170, (2011).

DOI: 10.1016/j.sna.2011.04.040

[10] Thanh, T. N., Nam, S. G., Vinh, K. N., Youngtai, Y. and Seungbae, P., Design, fabrication, and experimental characterization of a flap valve IPMC micropump with a flexibly supported diaphragm, Sens. and Actuators, A, Vol. 141, No. 2, pp.640-648, (2008).

DOI: 10.1016/j.sna.2007.09.017

[11] Samuel, I. E. L., The theoretical and experimental studies of a circular multi-layered annular piezoelectric actuator, Sens. and Actuators, A, Vol. 165, No. 2, pp.280-287, (2011).

DOI: 10.1016/j.sna.2010.01.018

[12] Junwu, K., Kehong, T., Guojun, L. Guoren, Z. and Chenghui, S., Development of serial-connection piezoelectric pumps, , Sens. and Actuators, A, Vol. 144, No. 2, pp.321-327, (2008).

[13] Rossetti, A., Pavesi, G. and Ardizzon, G., A new two stage miniature pump: Design, experimental characterization and numerical analyses, Sens. and Actuators, A, Vol. 164, No. 1-2, pp.74-87, (2010).

DOI: 10.1016/j.sna.2010.09.003

[14] Yuting, M., Fanrang, K., Chengliang, P., Qi, Z. and Zhihua, F., Miniature tubular centrifugal piezoelectric pump utilizing wobbling motion, Sens. and Actuators, A, Vol. 157, No. 2, pp.322-327, (2010).

DOI: 10.1016/j.sna.2009.11.035

[15] Junya, O., Isaku, K., Hidetoshi, k., Kiyotake, W. and Takaaki, S., Development of liquid pumping devices using vibrating microchannel walls, Sens. and Actuators, A, Vol. 152, No. 2, pp.211-218, (2009).

DOI: 10.1016/j.sna.2009.04.004

[16] Olsson, A., Stemme, G. and Stemme, E., A valve-less planar fluid pump with two pumps with two pump chambers, Sens. and Actuators, A, Vol. 47, No. 1-3, pp.549-556, (1995).

DOI: 10.1016/0924-4247(94)00960-p

[17] Olsson, A., Larsson, O., Holm, J., Lundbladh, L., Ohman, O. and Stemme, G., Vavle-less diffuser micropumps fabricated using thermoplastic replication, Sens. and Actuators, A, Vol. 64, No. 1, pp.63-68, (1998).

DOI: 10.1016/s0924-4247(98)80059-9

[18] Junwu, K., Kehong, T., Guojun L., Guoren, Z. and Chenghui, S., Development of serial-connection piezoelectric pumps, , Sens. and Actuators, A, Vol. 144, No. 2, pp.321-327, (2008).

[19] Shee, H. J., Hsu, C. J., Wu, T. H., Chu, h. C., Chang, C. C. and Lei, U., Experimental study of flow characteristics and mixing performance in a PZT self-pumping micromixer, Sens. and Actuators, A, Vol. 139, No. 1-2, pp.237-244, (2007).

DOI: 10.1016/j.sna.2007.02.031
