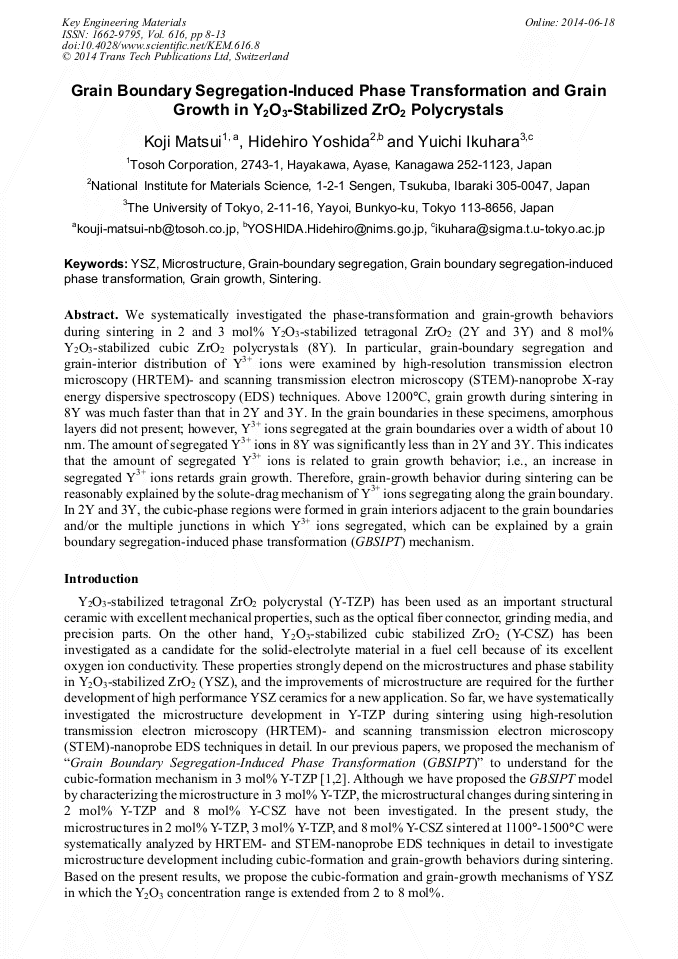

Grain Boundary Segregation-Induced Phase Transformation and Grain Growth in Y₂O₃-Stabilized ZrO₂ Polycrystals

Abstract:

We systematically investigated the phase transformation and grain-growth behaviors during sintering in 2 and 3 mol% Y₂O₃-stabilized tetragonal ZrO₂ (2Y and 3Y) and 8 mol% Y₂O₃-stabilized cubic ZrO₂ polycrystals (8Y). In particular, grain-boundary segregation and grain-interior distribution of Y³⁺ ions were examined by high-resolution transmission electron microscopy (HRTEM)- and scanning transmission electron microscopy (STEM)-nanoprobe X-ray energy dispersive spectroscopy (EDS) techniques. Above 1200°C, grain growth during sintering in 8Y was much faster than that in 2Y and 3Y. In the grain boundaries in these specimens, amorphous layers did not present; however, Y³⁺ ions segregated at the grain boundaries over a width of about 10 nm. The amount of segregated Y³⁺ ions in 8Y was significantly less than in 2Y and 3Y. This indicates that the amount of segregated Y³⁺ ions is related to grain growth behavior; i.e., an increase in segregated Y³⁺ ions retards grain growth. Therefore, grain-growth behavior during sintering can be reasonably explained by the solute-drag mechanism of Y³⁺ ions segregating along the grain boundary. In 2Y and 3Y, the cubic-phase regions were formed in grain interiors adjacent to the grain boundaries and/or the multiple junctions in which Y³⁺ ions segregated, which can be explained by a grain boundary segregation-induced phase transformation (GBSIPT) mechanism.

• Periodical: Key Engineering Materials (Volume 616)
• Pages: 8-13
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.616.8
• Online since: June 2014
• Authors: Koji Matsui*, Hidehiro Yoshida, Yuichi Ikuhara
• Keywords: Grain Boundary Segregation-Induced Phase Transformation, Grain Growth, Grain-Boundary Segregation, Microstructure, Sintering, YSZ

References

[1] K. Matsui, H. Yoshida, Y. Ikuhara, Cubic-formation and grain-growth mechanisms in tetragonal zirconia polycrystal, J. Am. Ceram. Soc. 86 (2003) 1401-1408.

DOI: 10.1111/j.1151-2916.2003.tb03483.x

[2] K. Matsui, H. Yoshida, Y. Ikuhara, Grain boundary segregation-induced phase transformation in yttria stabilized tetragonal zirconia polycrystal, J. Ceram. Soc. Jpn. 114 (2006) 230-237.

DOI: 10.2109/jcersj.114.230

[3] N. Ohmichi, K. Kamioka, K. Ueda, K. Matsui, M. Ogai, Phase transformation of zirconia ceramics by annealing in hot water, J. Ceram. Soc. Jpn. 107 (1999) 128-133.

DOI: 10.2109/jcersj.107.128

[4] H.G. Scott, Phase relationships in the zirconia-yttria system, J. Mater. Sci. 10 (1975) 1527-1535.

[5] D.J. Srolovitz, R. Eykholt, D.M. Barnett, J.P. Hirth, Moving discommensurations interacting with diffusing impurities, Phys. Rev. B35 (1987) 6107-6121.

DOI: 10.1103/physrevb.35.6107
