Residual Stress Distribution through Thickness in Cold-Rolled Aluminum Sheet

Nobuyuki Hattori; Ryo Matsumoto; Hiroshi Utsunomiya

doi:10.4028/www.scientific.net/KEM.622-623.1000

Paper Titles

Prediction of Microstructure and Resulting Rolling Forces by Application of a Material Model in a Hot Ring Rolling Process
p.970

Process of Ontology Construction of Rolling Metal Sheets Industrial Process
p.978

Process Planning of Gear Rolling with the Finite Element Method
p.986

Research on the Minimum Rolled Thickness of Strip Steel in Cold Tandem Rolling
p.993

Residual Stress Distribution through Thickness in Cold-Rolled Aluminum Sheet
p.1000

Roll Design Method of Single–Stage Profile Ring Rolling Based on Modified UVDET
p.1008

Stress Field in Rolls under Load – Measurement and FEM Calculations
p.1015

Study of the Effect of Cyclic Strain Reversal on the Interactions between SRX and PPT in the Microalloyed Austenite during Hot Rolling Process
p.1023

The Influence of Rolling Schedule on the Dynamic Properties of Accumulatively Roll Bonded Nano-Layered Cu-Nb
p.1031

HomeKey Engineering MaterialsKey Engineering Materials Vols. 622-623Residual Stress Distribution through Thickness in...

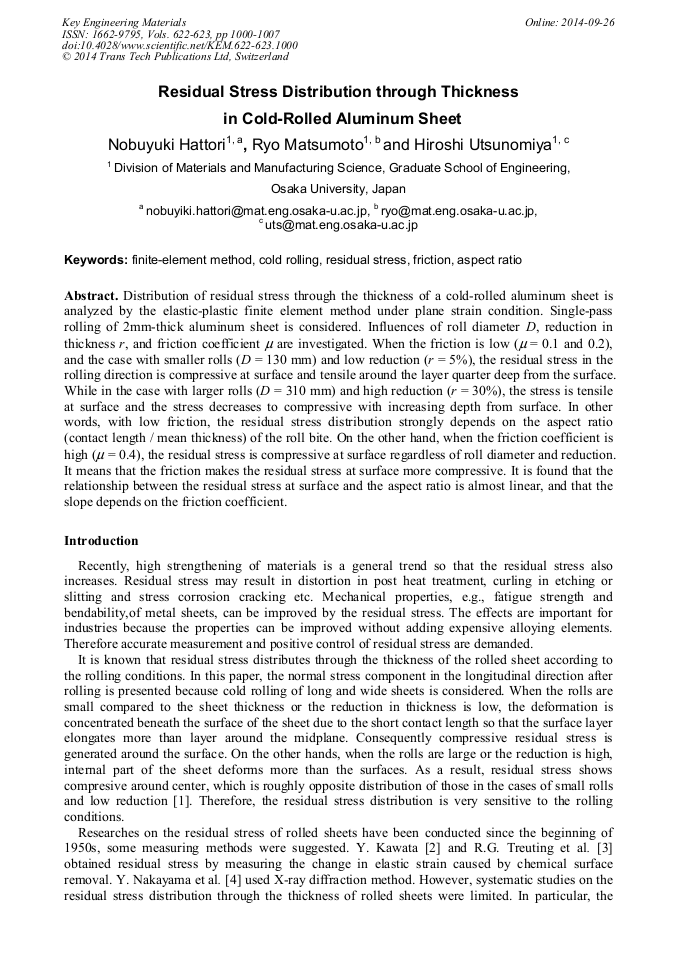

Residual Stress Distribution through Thickness in Cold-Rolled Aluminum Sheet

Abstract:

Distribution of residual stress through the thickness of a cold-rolled aluminum sheet is analyzed by the elastic-plastic finite element method under plane strain condition. Single-pass rolling of 2mm-thick aluminum sheet is considered. Influences of roll diameter D, reduction in thickness r, and friction coefficient μ are investigated. When the friction is low (μ = 0.1 and 0.2), and the case with smaller rolls (D = 130 mm) and low reduction (r = 5%), the residual stress in the rolling direction is compressive at surface and tensile around the layer quarter deep from the surface. While in the case with larger rolls (D = 310 mm) and high reduction (r = 30%), the stress is tensile at surface and the stress decreases to compressive with increasing depth from surface. In other words, with low friction, the residual stress distribution strongly depends on the aspect ratio (contact length / mean thickness) of the roll bite. On the other hand, when the friction coefficient is high (μ = 0.4), the residual stress is compressive at surface regardless of roll diameter and reduction. It means that the friction makes the residual stress at surface more compressive. It is found that the relationship between the residual stress at surface and the aspect ratio is almost linear, and that the slope depends on the friction coefficient.
