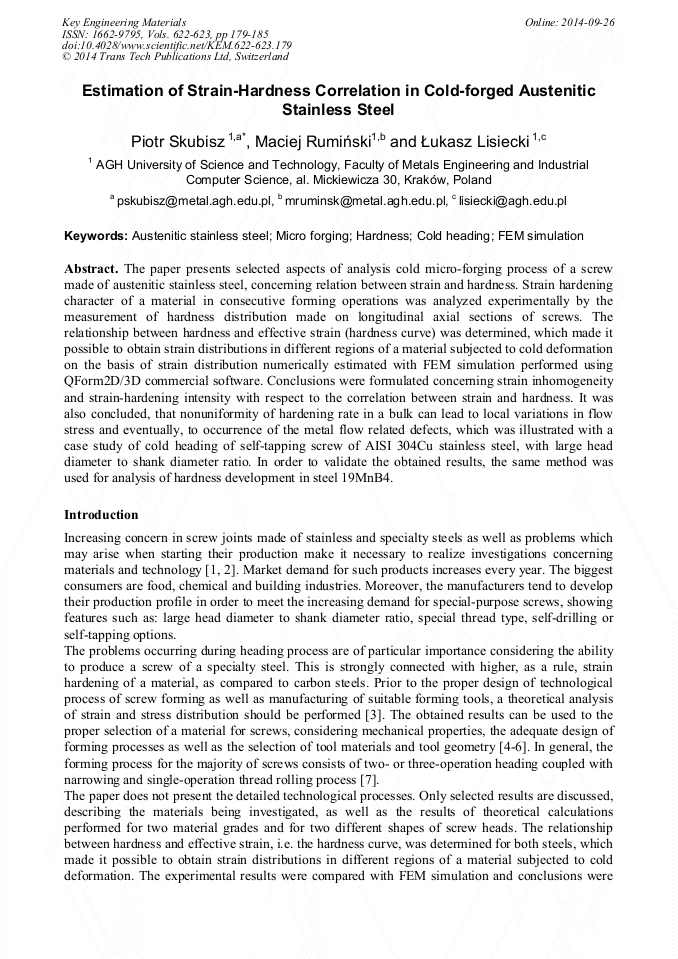

Estimation of Strain-Hardness Correlation in Cold-Forged Austenitic Stainless Steel

Abstract:

The paper presents selected aspects of analysis cold micro-forging process of a screw made of austenitic stainless steel, concerning relation between strain and hardness. Strain hardening character of a material in consecutive forming operations was analyzed experimentally by the measurement of hardness distribution made on longitudinal axial sections of screws. The relationship between hardness and effective strain (hardness curve) was determined, which made it possible to obtain strain distributions in different regions of a material subjected to cold deformation on the basis of strain distribution numerically estimated with FEM simulation performed using QForm2D/3D commercial software. Conclusions were formulated concerning strain inhomogeneity and strain-hardening intensity with respect to the correlation between strain and hardness. It was also concluded, that nonuniformity of hardening rate in a bulk can lead to local variations in flow stress and eventually, to occurrence of the metal flow related defects, which was illustrated with a case study of cold heading of self-tapping screw of AISI 304Cu stainless steel, with large head diameter to shank diameter ratio. In order to validate the obtained results, the same method was used for analysis of hardness development in steel 19MnB4.

• Periodical: Key Engineering Materials (Volumes 622-623)
• Pages: 179-185
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.622-623.179
• Online since: September 2014
• Authors: Piotr Skubisz*, Maciej Rumiński, Łukasz Lisiecki
• Keywords: Austenitic Stainless Steel, Cold Heading, FEM Simulation, Hardness, Micro Forging

References

[1] Packo M., Łuksza J., Skołyszewski A., Rumiński M., Dybich J.: Analysis of properties of alloy steels considering their selection for A2 grade fasteners. Hutnik – Wiadomości Hutnicze, 2001, 7-8, 264-270 (in polish).

[2] Łuksza J., Skołyszewski A., Rumiński M., Paćko M.: Material selection for the production of high-quality stainless steel fasteners. Hutnik – Wiadomości Hutnicze, 2003, 10, 408-413 (in polish).

[3] Sonmez F. O., Demir A.: Analytical relations between hardness and strain for cold formed parts. Journal of Materials Processing Technology, 186, 2007, 163-173.

DOI: 10.1016/j.jmatprotec.2006.12.031

[4] Łuksza J., Skołyszewski A., Rumiński M., Paćko M.: Some aspects of stainless steel fasteners production technology. Metallurgy and Foundry Engineering, 30 (2004), 2, 143-159.

[5] Rumiński M., Skołyszewski A., Skubisz P.: Analysis of forming process of stainless steel hairbrush pins. Hutnik – Wiadomości Hutnicze, 2007, R. 74, 1–2, 84–88.

[6] Paćko M., Skołyszewski A., Malinowski Z., Rumiński M.: Analysis of material flow in stainless steel screw forming process. Proceedings of 8th International Conference Metal Forming 2000, 3-7. 09. 2000, Kraków, A.A. Balkema, Rotterdam/Brookfield, 2000, 691-698.

[7] Rumiński M., Skubisz P.: Experimental and numerical analysis of cold heading of steel assembling screws of special geometry. Hutnik – Wiadomości Hutnicze, 2009, 1, 88-91 (in polish).

[8] Skubisz P., Krawczyk J., Sińczak J.: Tool life enhancement in warm forging of CV joint with utilization of the divided flow method. Proceedings of the 14th International Conference on Metal Forming - Metal Forming 2012, eds.: Kusiak J., Majta J., Szeliga D., Krakow, Poland, Steel Research International (spec. ed. ), 2012, 235- 238.
