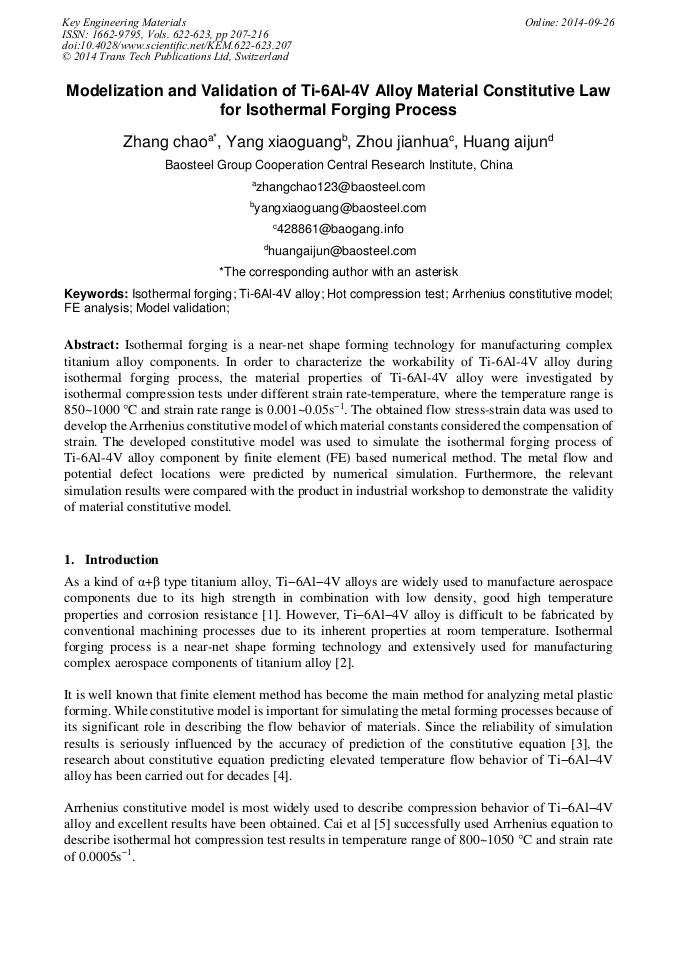

Modelization and Validation of Ti-6Al-4V Alloy Material Constitutive Law for Isothermal Forging Process

Abstract:

Isothermal forging is a near-net shape forming technology for manufacturing complex titanium alloy components. In order to characterize the workability of Ti-6Al-4V alloy during isothermal forging process, the material properties of Ti-6Al-4V alloy were investigated by isothermal compression tests under different strain rate-temperature, where the temperature range is 850~1000 °C and strain rate range is 0.001~0.05s⁻¹. The obtained flow stress-strain data was used to develop the Arrhenius constitutive model of which material constants considered the compensation of strain. The developed constitutive model was used to simulate the isothermal forging process of Ti-6Al-4V alloy component by finite element (FE) based numerical method. The metal flow and potential defect locations were predicted by numerical simulation. Furthermore, the relevant simulation results were compared with the product in industrial workshop to demonstrate the validity of material constitutive model. Keywords: Isothermal forging; Ti-6Al-4V alloy; Hot compression test; Arrhenius constitutive model; FE analysis; Model validation;

• Periodical: Key Engineering Materials (Volumes 622-623)
• Pages: 207-216
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.622-623.207
• Online since: September 2014
• Authors: Chao Zhang*, Xiao Guang Yang, Jian Hua Zhou, Ai Jun Huang
• Keywords: Arrhenius Constitutive Model, FE Analysis, Hot Compression Test, Isothermal Forging, Model Validation, Ti-6Al-4V Alloy

References

[1] J.C. Williams, E.A. Starke Jr: Progress in structural materials for aerospace systems [J], Acta Materialia, 2003, 51(19): 5775-5799.

DOI: 10.1016/j.actamat.2003.08.023

[2] M. Jackson, N.G. Jones, D. Dye, R.J. Dashwood. Effect of initial microstructure on plastic flow behavior during isothermal forging of Ti-10V-2Fe-3Al [J]. Materials Science and Engineering: A, 1993, 36(3): 303-319.

DOI: 10.1016/j.msea.2008.09.071

[3] WANG Zhe-jun, QIANG Hong-fu, WANG Xue-ren, WANG Guang. Constitutive model for a new kind of metastable β titanium alloy during hot deformation [J]. Transactions of Nonferrous Metals Society of China, 2012, 22: 634−641.

DOI: 10.1016/s1003-6326(11)61225-9

[4] REN Guo-guan, YOUNG Tae-je, ZHAN Yong-zhao, CHONG Soo-lee. Effect of microstructure on deformation behaviour of Ti−6Al−4V alloy during compressing process [J]. Materials and Design, 2012, 36: 796−803.

DOI: 10.1016/j.matdes.2011.11.057

[5] CAI Jun, LI Fu-guo, LIU Tai-ying, CHEN Bo, HE Min. Constitutive equations for elevated temperature flow stress of Ti−6Al−4V alloy considering the effect of strain [J]. Materials and Design, 2011, 32: 1144−1151.

DOI: 10.1016/j.matdes.2010.11.004

[6] T. Seshacharyulu, S.C. Medeiros, W.G. Frazier, Y.V.R.K. Prasad. Microstructural mechanisms during hot working of commercial grade Ti–6Al–4V with lamellar starting structure [J]. Materials Science and Engineering, 2002, 325: 112–125.

DOI: 10.1016/s0921-5093(01)01448-4

[7] SUNG S Y, KIM Y J. Alpha-case formation mechanism on titanium investment castings [J]. Materials Science and Engineering A, 2005, 405: 173−177.

DOI: 10.1016/j.msea.2005.05.092

[8] SELLARS C M, MCTEGART W J. On the mechanism of hot deformation [J]. Acta Metall, 1966, 14: 1136−1138.

DOI: 10.1016/0001-6160(66)90207-0

[9] ZENER C, HOLLOMON JH. Effect of strain rate upon plastic flow of steel [J]. Journal of Applied Physics, 1994, 15: 22−32.

DOI: 10.1063/1.1707363

[10] PU Z J, WU K H, SHI J, ZOU D. Development of constitutive relationships for the hot deformation of boron microalloying TiAl−Cr−V alloys [J]. Materials Science and Engineering A, 1995, 192−193: 780−787.

DOI: 10.1016/0921-5093(94)03314-5

[11] MANDAL S, RAKESH V, SIVAPRASAD P V, VENUGOPAL S, KASIVISWANATHAN K V. Constitutive equations to predict high temperature flow stress in a Ti–modified austenitic stainless steel [J]. Materials Science and Engineering A, 2009, 500: 114−121.

DOI: 10.1016/j.msea.2008.09.019
