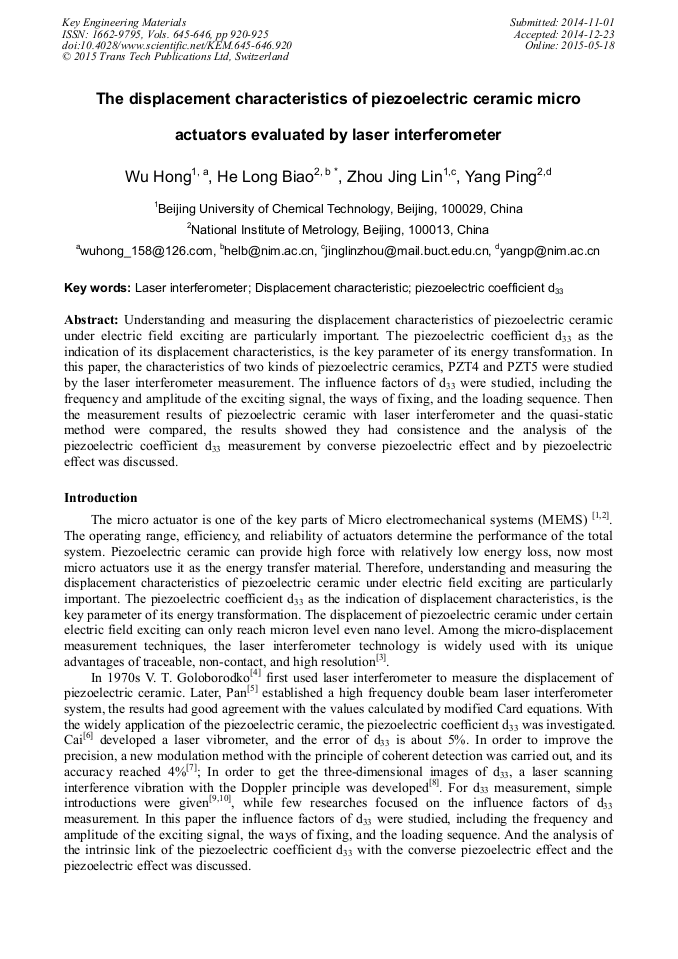

The Displacement Characteristics of Piezoelectric Ceramic Micro Actuators Evaluated by Laser Interferometer

Abstract:

Understanding and measuring the displacement characteristics of piezoelectric ceramic with electric field exciting are particularly important. The piezoelectric coefficient d₃₃ as the indication of its displacement characteristics, is the key parameter of its energy transformation. In this paper, the characteristics of two kinds of piezoelectric ceramics, PZT4 and PZT5 were studied by the laser interferometer measurement. The influence factors of d₃₃ were studied, including the frequency and amplitude of the exciting signal, the ways of holding, and the loading sequence. Then the measurement results of piezoelectric ceramic with laser interferometer and the quasi-static method were compared, the results showed they had consistence and the analysis of the piezoelectric coefficient d₃₃ measurement by converse piezoelectric effect and by piezoelectric effect was discussed.

• Periodical: Key Engineering Materials (Volumes 645-646)
• Pages: 920-925
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.645-646.920
• Online since: May 2015
• Authors: Hong Wu, Long Biao He*, Jing Lin Zhou, Ping Yang
• Keywords: Displacement Characteristic, Laser Interferometer, Piezoelectric Coefficient d₃₃

References

[1] Li L, Wang LD, The new progress of the MEMS research-study of micro system and its development and application, Optics and Precision Engineering. 5 (1997) 67-68.

[2] Zhang L, Study of the micro actuators application. Machine Building & Automation, 2 (2010) 151-153.

[3] Su SJ, Research of theory and key technologies of long-rang displacement measuring with nanometer resolution by grating, National University of Defense Technology. (2001).

[4] V. T. Goloborod'ko, Use of a scanning fabry-perot interferometer with a piezoelectric ceramic at a very low modulation frequency, Journal of Applied Spectroscopy. 10 (1969) 442-443.

DOI: 10.1007/bf00619251

[5] Pan. W. Y., et al, Double beam laser interferometer measurements of surface displacements at the resonance frequencies of PZT piezoelectric ceramic resonators, Ferroelectrics. 120 (1991) 231-239.

DOI: 10.1080/00150199108008247

[6] Chai QD, Piezoelectric coefficient vibrometer, Piezoelectric&Acoustooptics. 5 (1979) 173-176.

[7] Yi YY, Zhou ZB, Study of modulated laser interferometry for piezoelectric characteristic measurement of piezoelectric ceramic, Applied Optics. 25 (2004) 27-32.

[8] Yao, Kui, F. E. Tay, Measurement of longitudinal piezoelectric coefficient of thin films by a laser-scanning vibrometer, Ultrasonics, Ferroelectrics and Frequency Control, IEEE Transactions on. 50 (2003) 113-116.

DOI: 10.1109/tuffc.2003.1182115

[9] Wang ZH, Measurement of longitudinal piezoelectric coefficient of film with scanning-modulated interferometer, Sensors and Actuators A: Physical. 128 (2006) 327-332.

DOI: 10.1016/j.sna.2006.01.039

[10] Stewart. M. Battrick, W. Cain, M G, Measuring piezoelectric d33 coefficients using the direct method, Measurement Good Practice Guide. 44 (2001) 1368-6550.
