Structure Analyses of Experimental Welds Designed for Repair Welding of VVER 1000 Presssure Vessel

Miroslava Matějová; Dagmar Jandová; Josef Kasl

doi:10.4028/www.scientific.net/KEM.647.131

Paper Titles

Structure of Nanocrystalline Nickel Prepared by Powder Metallurgy
p.102

Utilization of Light Microscopy for the Evaluation of Fracture Toughness of Cemented Carbides
p.108

Corrosion Resistance of Inconel 625 and Austenitic Steel M41 after Laser Claddings
p.115

Microstructure of Cr₂N-11Ag Nanocomposite Thin Film Deposited on Vanadis 6 Tool Steel
p.121

Structure Analyses of Experimental Welds Designed for Repair Welding of VVER 1000 Presssure Vessel
p.131

Laser Welding of High-Strength CP Steels: Dissimilar Welds
p.141

Heterogeneous Welded Joints (T23-T92; 15CH1M1F-P91)
p.147

Influence of Microstructural Changes in Creep Resistant Steel after Long-Term Creep Tests on the Shape of the Polarization Curves
p.153

Material Degradation of Steam Pipe Elbow after Long-Term Exposure
p.162

HomeKey Engineering MaterialsKey Engineering Materials Vol. 647Structure Analyses of Experimental Welds Designed...

Structure Analyses of Experimental Welds Designed for Repair Welding of VVER 1000 Presssure Vessel

Abstract:

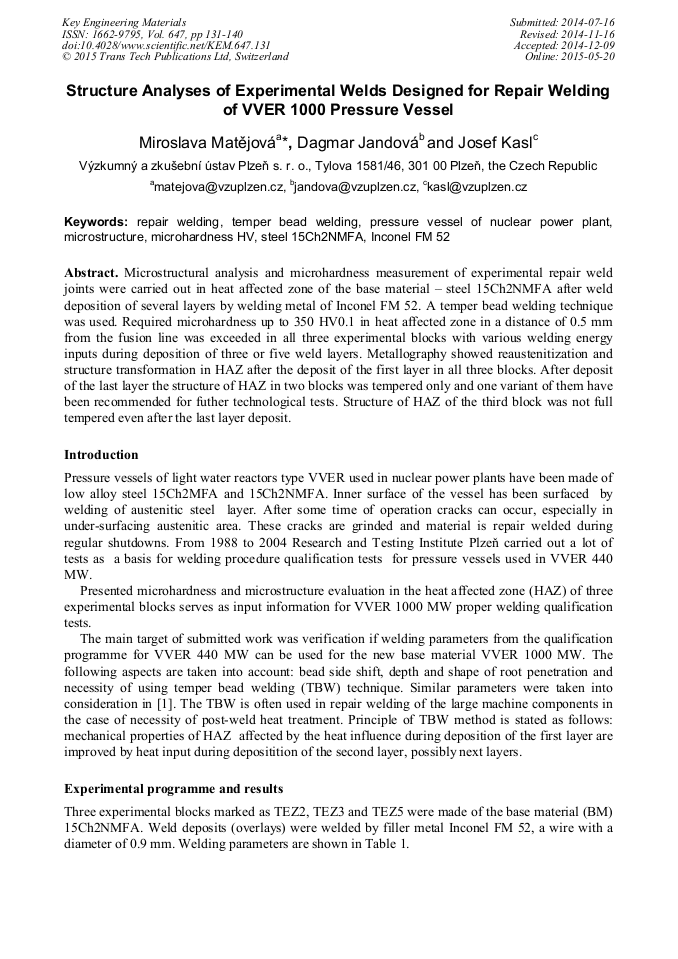

Microstructural analysis and microhardness measurement of experimental repair weld joints were carried out in heat affected zone (HAZ) of the base material (BM) – steel 15Ch2NMFA after weld deposition of several layers by welding metal of Inconel FM 52. A temper bead welding (TBW) technique was used. Required microhardness up to 350 HV0.1 in heat affected zone of base material in distance 0.5 mm from fusion line was exceeded in all three experimental blocks with various welding energy inputs during deposition of three or five weld layers. Metallography showed reaustenitization and structure transformation in HAZ after the deposit of first layer in all three blocks. After deposit of the last layer the structure of HAZ in two blocks was tempered only and one variant of them have been recommended for futher technological tests. Structure of HAZ of the third block was not full tempered even after the last layer deposit.

You might also be interested in these eBooks

Contribution of Metallography to Solving Production Problems

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 647)

Pages:

131-140

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.647.131

Citation:

Cite this paper

Online since:

May 2015

Authors:

Miroslava Matějová*, Dagmar Jandová, Josef Kasl

Keywords:

Inconel Fm 52, Microhardness HV, Microstructure, Pressure Vessel of Nuclear Power Plant, Repair Welding, Steel 15Ch2NMFA, Temper Bead Welding

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] M. Consonni, D.J. Abson, Investigation Of Weld Repair Without Post-Weld Heat Treatment For P91, presented at 10th International EPRI Conference on Welding and Repair Technology for Power Plants. Marco Island, Florida, 2012. Information on http: /www. twi-global. com.

DOI: 10.5937/zzk1702077c

Google Scholar

[2] I. Hrivňák, F. Matsumuda, K. Ikeuchi, Investigation of M-A constituent in high stength steel welds, Transactions of JWRI, 21 (1992) pp.9-31.

Google Scholar

[3] I. Hrivňák, F. Matsumuda, Z. Li, K. Ikeuchi, Investigation of metallography and behavior of M-A constituent in weld HAZ of HSLA steels, Transactions of JWRI, 21 (1992) pp.101-110.

Google Scholar
