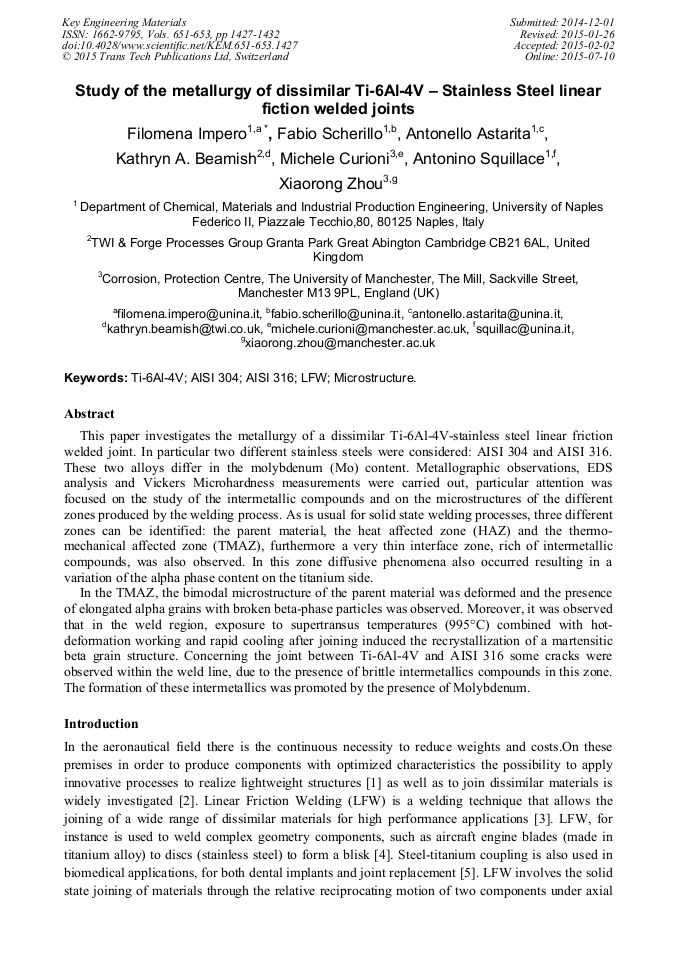

Study of the Metallurgy of a Dissimilar Ti-6Al-4V – Stainless Steel Linear Fiction Welded Joints

Abstract:

This paper deals with the investigation of the metallurgy of a dissimilar Ti-6Al-4V-stainless steel joint linear friction welded. In particular two different stainless steel were considered: AISI 304 and AISI 316. These two alloys differs in the Molybdemun content. Metallographic observations, EDS analysis and Vickers Microhardness measurements were carried out, particular attention was focused on the study of the intermetallic compounds and on the microstructures of the different zones produced by the process. As usual for solid state welding processes, three different zones can be identified: the parent material, the heat affected zone (HAZ) and the thermo-mechanical affected zone (TMAZ), furthermore a very thin joining line, rich of intermetallic compounds, was also observed. In this zone diffusive phenomena also occurred resulting in a variation of the alpha phase content on the titanium side.In the TMAZ, the bimodal microstructure of the parent material was deformed and the presence of elongated alpha grains with broken beta-phase particles was established. Moreover it was observed that in the weld region, exposure to supertransus temperatures (995°C) combined with hot-deformation working and rapid cooling after joining induced the recrystallization of a martensitic beta grain structure. Concerning the joint between Ti-6Al-4V and AISI 316 some cracks were observed within the weld line, this due to the presence of brittle intermetallics compounds in this zone. The formation of these intermetallics was promoted by the presence of Molybdenum.

• Periodical: Key Engineering Materials (Volumes 651-653)
• Pages: 1427-1432
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.651-653.1427
• Online since: July 2015
• Authors: Filomena Impero*, Fabio Scherillo, Antonello Astarita, Kathryn A. Beamish, Michele Curioni, Antonino Squillace, Xiao Rong Zhou
• Keywords: AISI 304, AISI 316, LFW, Microstructure, Ti-6Al-4V

References

[1] P. Carlone, G.S. Palazzo, Characterization of TIG and FSW weldings in cast ZE41A magnesiumalloy, J Mater Process Tech 215 (2015), 87-94.

DOI: 10.1016/j.jmatprotec.2014.07.026

[2] P. Wanjara and M. Jahazi, Linear Friction Welding of Ti-6Al-4V: Processing, Microstructure, and Mechanical-Property Inter-Relationships 2164—VOLUME 36A, AUGUST 2005 METALLURGICAL AND MATERIALS TRANSACTIONS.

DOI: 10.1007/s11661-005-0335-5

[3] A. Vairis and M. Frost: Wear (Switzerland), 1998, vol. 217, pp.117-31.

[4] A. Vairis and M. Frost: Mater. Sci. Eng., 1999, vol. A271, pp.477-84.

[5] A. Vairis and M. Frost: Mater. Sci. Eng., 2000, vol. A292, pp.8-17.

[6] Wen-Ya Li, Tiejun Ma, Jinglong Li, Numerical simulation of linear friction welding of titanium alloy: Effects of processing parameters, Materials and Design 31 (2010) 1497–1507.

DOI: 10.1016/j.matdes.2009.08.023

[7] A. Squillace, U. Prisco, S. Ciliberto, A. Astarita, Effect of welding parameters on morphology and mechanical properties of Ti-6Al-4V, Journal of Materials Processing Technology 212 (2012) 427 – 436 DOI: 10. 1016/j. jmatprotec. 2011. 10. 005.

DOI: 10.1016/j.jmatprotec.2011.10.005

[8] A. Astarita, M. Curioni, A. Squillace, X. Zhou, F. Bellucci, G. E. Thompson and K. A. Beamish, Corrosion behaviour of stainless steel–titanium alloy linear friction welded joints: Galvanic Coupling, Materials and Corrosion 2014, DOI: 10. 1002/maco. 201307476.

DOI: 10.1002/maco.201307476

[9] Livan Fratini, Gianluca Buffa, Davide Campanella, Dario La Spisa Investigations on the linear friction welding process through numerical simulations and experiments, Materials and Design 40 (2012) 285–291.

DOI: 10.1016/j.matdes.2012.03.058

[10] Kay Geels, Michael Ruckert, Metallographic/Materialographic Preparation, in: Kay Geels (Eds), Metallographic and Materialographic Specimen Preparation, Light Microscopy, Image Analysis and Hardness Testing, ASTM International, West Conshohocken, 2007, pp.310-336.

DOI: 10.1520/mnl46-eb

[11] G. F. Vander Voort, ASM Handbook, Vol 9, Metallography and Microstructures, ASM International, Materials Park, Ohio, (2004).

[12] Pengkang Zhao, Li Fu, Dechao Zhong, Numerical simulation of transient temperature and axial deformation during linear friction welding between TC11 and TC17 titanium alloys, Computational Materials Science 92 (2014) 325-333.

DOI: 10.1016/j.commatsci.2014.05.062

[13] J. Matthew, Jr. Donachie, Titanium A Technical Guide Second Edition, Materials Park Ohio, (2000).
