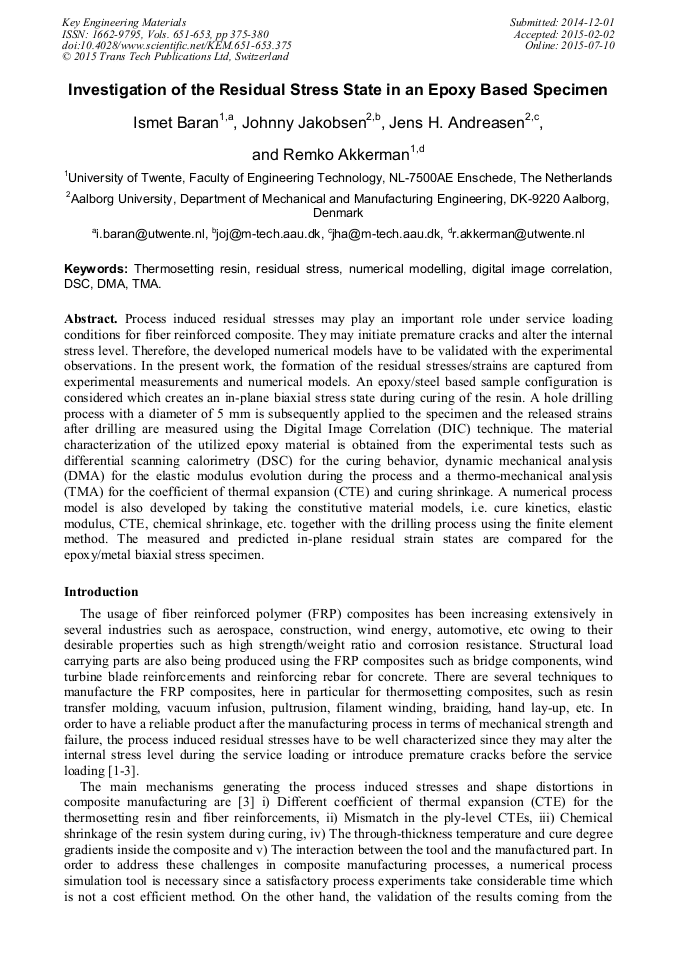

Investigation of the Residual Stress State in an Epoxy Based Specimen

Abstract:

Process induced residual stresses may play an important role under service loading conditions for fiber reinforced composite. They may initiate premature cracks and alter the internal stress level. Therefore, the developed numerical models have to be validated with the experimental observations. In the present work, the formation of the residual stresses/strains are captured from experimental measurements and numerical models. An epoxy/steel based sample configuration is considered which creates an in-plane biaxial stress state during curing of the resin. A hole drilling process with a diameter of 5 mm is subsequently applied to the specimen and the released strains after drilling are measured using the Digital Image Correlation (DIC) technique. The material characterization of the utilized epoxy material is obtained from the experimental tests such as differential scanning calorimetry (DSC) for the curing behavior, dynamic mechanical analysis (DMA) for the elastic modulus evolution during the process and a thermo-mechanical analysis (TMA) for the coefficient of thermal expansion (CTE) and curing shrinkage. A numerical process model is also developed by taking the constitutive material models, i.e. cure kinetics, elastic modulus, CTE, chemical shrinkage, etc. together with the drilling process using the finite element method. The measured and predicted in-plane residual strain states are compared for the epoxy/metal biaxial stress specimen.

• Periodical: Key Engineering Materials (Volumes 651-653)
• Pages: 375-380
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.651-653.375
• Online since: July 2015
• Authors: Ismet Baran*, Johnny Jakobsen, Jens H. Andreasen, Remko Akkerman
• Keywords: Digital Image Correlation, DMA, DSC, Numerical Modelling, Residual Stress, Thermosetting Resin, TMA

References

[1] I. Baran, C.C. Tutum, J.H. Hattel, R. Akkerman, Pultrusion of a vertical axis wind turbine blade part-I: 3D thermo-chemical process simulation, Int J Mat Form (2014). DOI: 10. 1007/s12289-014-1179-6.

DOI: 10.1007/s12289-014-1179-6

[2] I. Baran, J.H. Hattel, C.C. Tutum, R. Akkerman, Pultrusion of a vertical axis wind turbine blade part-ii: combining the manufacturing process simulation with a subsequent loading scenario, Int J Mat Form (2014). DOI: 10. 1007/s12289-014-1178-7.

DOI: 10.1007/s12289-014-1178-7

[3] M.R. Wisnom, M. Gigliotti, N. Ersoy, M. Campbell, K.D. Potter, Mechanisms generating residual stresses and distortion during manufacture of polymer-matrix composite structures, Compos Part A-Appl S 37 (2006) 522-529.

DOI: 10.1016/j.compositesa.2005.05.019

[4] I. Baran, C.C. Tutum, M.W. Nielsen, J.H. Hattel, Process induced residual stresses and distortions in pultrusion, Compos Part B: Eng 51 (2013), 148-161.

DOI: 10.1016/j.compositesb.2013.03.031

[5] I. Baran, R. Akkerman, J.H. Hattel, Modelling the pultrusion process of an industrial L-shaped composite profile, Compos. Struct 118 (2014), 37-48.

DOI: 10.1016/j.compstruct.2014.07.018

[6] I. Baran, J.H. Hattel, R. Akkerman, Investigation of process induced warpage for pultrusion of a rectangular hollow profile, Compos Part B: Eng 68 (2015) 365-374.

DOI: 10.1016/j.compositesb.2014.07.032

[7] T.A. Bogetti, Jr.J.W. Gillespie, Process-induced stress and deformation in thick section thermoset composite laminates, J Compos Mater 26(5) (1992) 626-660.

DOI: 10.1177/002199839202600502

[8] A. Johnston, R. Vaziri, A. Poursartip, A plane strain model for process-induced deformation of laminated composite structures, J Compos Mater, 35(16) (2001) 1435-1469.

DOI: 10.1177/002199801772662514

[9] B. Benedikt, M. Kumosa, P. Predecki, et al., An analysis of residual thermal stresses in a unidirectional graphite/PMR-15 composite based on X-ray diffraction measurements. Compos Sci Technol 61(14) (2001) 1977-(1994).

DOI: 10.1016/s0266-3538(01)00060-4

[10] C. Prasad, R. Prabhakaran, S. Tompkins, Determination of calibration constants for the hole drilling residual stress measurement technique applied to orthotropic composites - part II: experimental evaluations. Compos Struct 8(3) (1987) 165-172.

DOI: 10.1016/0263-8223(87)90067-5

[11] M.B. Prime, Cross-sectional mapping of residual stresses by measuring the surface contour after a cut, J Eng Mater Technol 123(2) (2001) 162-168.

DOI: 10.1115/1.1345526

[12] J. Jakobsen, J. H. Andreasen, M. Jensen, A novel biaxial specimen for inducing residual stresses in thermoset polymers and fibre composite material, J Compos Mat (2014). DOI: 10. 1177/0021998314554120.

DOI: 10.1177/0021998314554120

[13] J. Jakobsen, M. Jensen, J.H. Andreasen, Thermo-mechanical characterisation of in-plane properties for CSM E-glass epoxy polymer composite materials – Part 1: Thermal and chemical strain, Polymer Testing 32 (2013) 1350-1357.

DOI: 10.1016/j.polymertesting.2013.08.010

[14] J. Jakobsen, M. Jensen, J.H. Andreasen, Thermo-mechanical characterisation of in-plane properties for CSM E-glass epoxy polymer composite materials – Part 2: Young's modulus, Polymer Testing 32 (2013) 1417-1422.

DOI: 10.1016/j.polymertesting.2013.09.005
