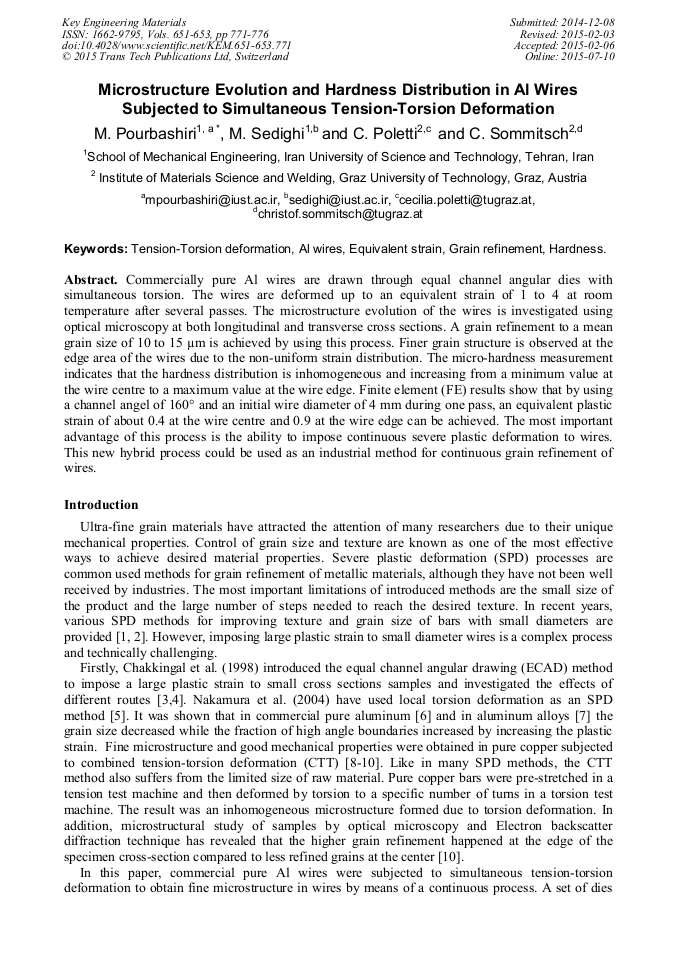

Microstructure Evolution and Hardness Distribution in Al Wires Subjected to Simultaneous Tension-Torsion Deformation

Abstract:

Commercially pure Al wires are drawn through equal channel angular dies with simultaneous torsion. The wires are deformed up to an equivalent strain of 1 to 4 at room temperature after several passes. The microstructure evolution of the wires is investigated using optical microscopy at both longitudinal and transverse cross sections. A grain refinement to a mean grain size of 10 to 15 μm is achieved by using this process. Finer grain structure is observed at the edge area of the wires due to the non-uniform strain distribution. The micro-hardness measurement indicates that the hardness distribution is inhomogeneous and increasing from a minimum value at the wire centre to a maximum value at the wire edge. Finite element (FE) results show that by using a channel angel of 160° and an initial wire diameter of 4 mm during one pass, an equivalent plastic strain of about 0.4 at the wire centre and 0.9 at the wire edge can be achieved. The most important advantage of this process is the ability to impose continuous severe plastic deformation to wires. This new hybrid process could be used as an industrial method for continuous grain refinement of wires.

• Periodical: Key Engineering Materials (Volumes 651-653)
• Pages: 771-776
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.651-653.771
• Online since: July 2015
• Authors: Mojtaba Pourbashiri*, Mohammad Sedighi, Maria Cecilia Poletti, Christof Sommitsch
• Keywords: Al Wires, Equivalent Strain, Grain Refinement, Hardness, Tension-Torsion Deformation

References

[1] Y. Estrin, A. Vinogradov, Extreme grain refinement by severe plastic deformation: A wealth of challenging science, ACTA MATER, 61 (2013) 782-817.

DOI: 10.1016/j.actamat.2012.10.038

[2] A. Azushima ,R. Kopp, A. Korhonen, D.Y. Yang, F. Micari, G.D. Lahoti, P. Groche, J. Yanagimoto, N. Tsuji, A. Rosochowski, A. Yanagida, Severe plastic deformation (SPD) processes for metals, CIRP ANN-MANUF TECHN, 57 (2008) 716-735.

DOI: 10.1016/j.cirp.2008.09.005

[3] U. Chakkingal, A. B. Suriadi, P.F. Thomson, Microstructure development during equal channel angular drawing of al at room temperature, SCRIPTA MATER, 39 (1998) 677-684.

DOI: 10.1016/s1359-6462(98)00234-6

[4] U. Chakkingal, A. B. Suriadi, P.F. Thomson, The development of microstructure and the influence of processing route during equal channel angular drawing of pure aluminum, MAT SCI ENG A-STRUCT, 266 (1999) 241-249.

DOI: 10.1016/s0921-5093(98)01129-0

[5] K. Nakamura, K. Neishi, K. Kaneko et al., Development of Severe Torsion Straining Process for Rapid Continuous Grain Refinement, MATER TRANS, 45 (2004) 3338-3342.

DOI: 10.2320/matertrans.45.3338

[6] S. Khamsuk, N. Park, H. Adachi, D. Terada, N. Tsuji, Evolution of Ultrafine Microstructures in Commercial Purity Aluminum Heavily Deformed by Torsion, J Mater Sci 47 (2012) 7841–7847.

DOI: 10.1007/s10853-012-6661-2

[7] C. Poletti, F. Krumphals, S. Mitsche, Z. Gao, Microstructural evolution of AA6082 with small aluminides under hot torsion and friction stir processing, MATER SCI FORUM, 753 (2013) 263-266.

DOI: 10.4028/www.scientific.net/msf.753.263

[8] C. Wang, F. Li, J. Li, J. Dong, F. Xue, Microstructure evolution, hardening and thermal behavior of commercially pure copper subjected to torsion deformation, MAT SCI ENG A-STRUCT, 598 (2014) 7-14.

DOI: 10.1016/j.msea.2013.12.079

[9] C. Wang, F. Li, L. Wei, Y. Yang, J. Dong, Experimental micro indentation of pure copper subjected to severe plastic deformation by combined tension–torsion, MAT SCI ENG A-STRUCT, 571(2013) 95-102.

DOI: 10.1016/j.msea.2013.01.057

[10] J. Li, F. Li, M.Z. Hussain, C. Wang, L. Wang, Micro-structural evolution subjected to combined tension-torsion deformation for pure copper, MAT SCI ENG A-STRUCT, 610 (2014) 181-187.

DOI: 10.1016/j.msea.2014.04.083

[11] ASM Handbook, Volume 4: Heat Treating, Second Printing, pp-871, (1994).

[12] S.H. Hosseinikor, Investigation and analysis of a new backward extrusion method for producing high strength containers, MSc thesis, 2013 , Tehran.
