Injection Blow Moulding Single Stage Process – Approach of the Material Behaviour in Process Conditions and Numerical Simulation

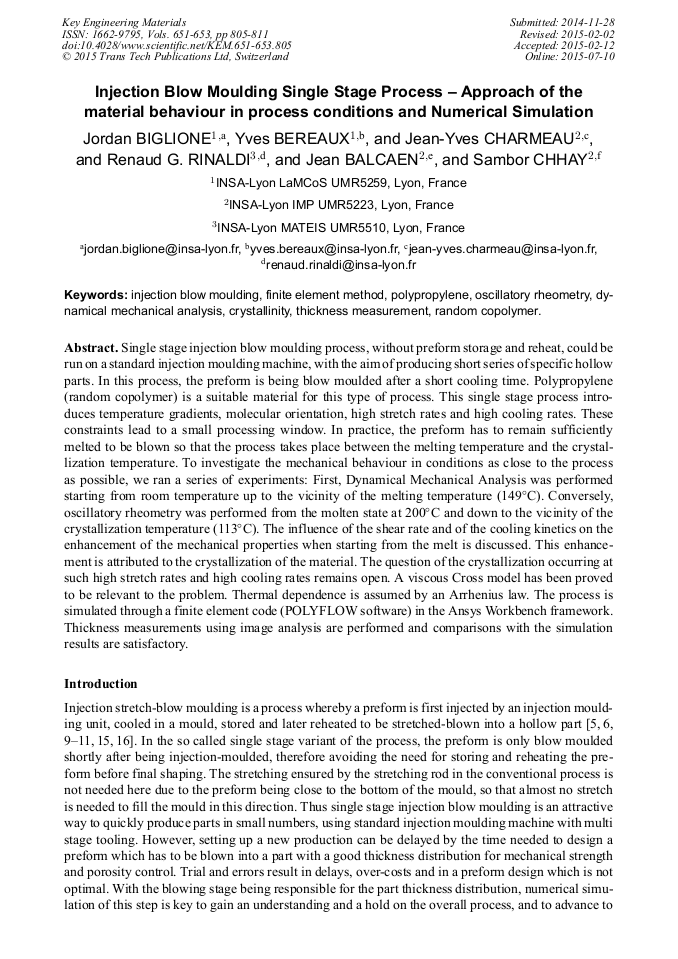

Abstract:

Single stage injection blow moulding process, without preform storage and reheat, could be run on a standard injection moulding machine, with the aim of producing short series of specific hollow parts. In this process, the preform is being blow moulded after a short cooling time. Polypropylene (Random copolymer) is a suitable material for this type of process. The preform has to remain sufficiently melted to be blown. This single stage process introduces temperature gradients, molecular orientation, high stretch rates and high cooling rates. These constraints lead to a small processing window, and in practice, the process takes place between the melting temperature and the crystallization temperature. To investigates the mechanical behaviour in conditions as close to the process as possible, we ran a series of experiments: First, Dynamical Mechanical Analysis was performed starting from the solid state at room temperature and ending in the vicinity of the melting temperature. Conversely, oscillatory rheometry was also performed starting this time from the molten state at 200°C and decreasing the temperature down to the vicinity of the crystallization temperature. The influence of the shear rate and of the cooling kinetics on the enhancement of the mechanical properties when starting from the melt is discussed. This enhancement is attributed to the crystallization of the material. The question of the crystallization occurring at such high stretch rates and high cooling rates is open. A viscous Cross model has been proved to be relevant to the problem. Thermal dependence is assumed by an Arrhenius law. The process is simulated through a finite element code (POLYFLOW software) in the Ansys Workbench framework. Thickness measurements using image analysis are performed and comparison with the simulation results is satisfactory.

• Periodical: Key Engineering Materials (Volumes 651-653)
• Pages: 805-811
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.651-653.805
• Online since: July 2015
• Authors: Jordan Biglione*, Yves Bereaux, J.Y. Charmeau, Renaud G. Rinaldi, Jean Balcaen, Sambor Chhay
• Keywords: Crystallinity, Dynamicalmechanical Analysis, Finite Element Method (FEM), Injection Blow Moulding, Oscillatory Rheometry, Polypropylene, Random Copolymer, Thickness Measurement

References

[1] ANSYS: Ansys polyflow user's guide. release 13 · 0 (2010).

[2] Devaux, N.: Influence d'un cisaillement sur les premiers stades de la cristallisation du polypropylène. Thèse de l'Ecole des Mines de Paris (2003).

[3] Duffo, P., Monasse, B., Haudin, J.M., G'Sell, C., Dahoun, A.: Rheology of polypropylene in the solid state. Journal of Materials Science 30 (1995).

DOI: 10.1007/bf00356330

[4] Duval, C.: Polypropylènes (pp). Techniques de l'ingénieur (2004).

[5] Groot, J.A.W.M., Giannopapa, C.G., Mattheij, R.M.M.: A computer simulation model for the stretch blow moulding process of polymer containers. ASME 2010 (2010).

DOI: 10.1115/pvp2010-25710

[6] Hopmann, C., Michaeli, W., Rasche, S.: Fe-analysis of stretch-blow moulded bottles using an integrative process simulation. The 14th International ESAFORM Conference on Material Forming (2011).

DOI: 10.1063/1.3589625

[7] Kamal, M.R., Kalyon, D.M., Tan, V.: Anisotropy and dimension of blow-molded polyethylene bottles. Polymer Engineering and Science 22 (1982).

DOI: 10.1002/pen.760220504

[8] Koscher, E., Fulchiron, R.: Influence of shear on polypropylene crystallization: morphology development and kinetics. Polymer 43 (2002).

DOI: 10.1016/s0032-3861(02)00628-6

[9] Menary, G.H., Tan, C.W., Armstrong, C.G., Salomeia, Y., Harkin-Jones, E.M.A.: Validating injection stretch-blow molding simulation through free blow trials. Polymer Engineering and Science 50 (2010).

DOI: 10.1002/pen.21555

[10] Pham, X.T., Thibault, F., Lim, L.T.: Modeling and simulation of stretch blow molding of polyethylene terephthalate. Polymer Engineering and Science 44 (2004).

DOI: 10.1002/pen.20142

[11] Schmidt, F.M., Agassant, J.F., Bellet, M.: Experimental study and numerical simulation of the injection stretch/blow molding process. Polymer Engineering and Science 38 (1998).

DOI: 10.1002/pen.10310

[12] Thevenon, A., Fulchiron, R.: Elongational behavior of amorphous polymers in the vicinity and above the glass transition temperature. Polymer Testing 32 (2013).

DOI: 10.1016/j.polymertesting.2013.03.003

[13] Thevenon, A., Fulchiron, R.: Evolution of poly(propylene) morphology in the rubbery state under uniaxial strain. Macromolecular Materials and Engineering 299 (2014).

DOI: 10.1002/mame.201300043

[14] Thevenon, A., Fulchiron, R.: A thermomechanical modeling approach for the structural changes in semi-crystalline polymers under elongational strain. Journal of Materials Science 49 (2014).

DOI: 10.1007/s10853-013-7722-x

[15] Thibault, F., Malo, A., Lanctot, B., Diraddo, R.: Preform shape and operating condition optimization for the stretch blow molding process. Polymer Engineering and Science 47 (2007).

DOI: 10.1002/pen.20707

[16] Yang, Z.J., Harkin-Jones, E., Menary, G.H., Armstrong, C.G.: A non-isothermal finite element model for injection stretch-blow molding of pet bottles with parametric studies. Polymer Engineering and Science 44 (2004).

DOI: 10.1002/pen.20133
