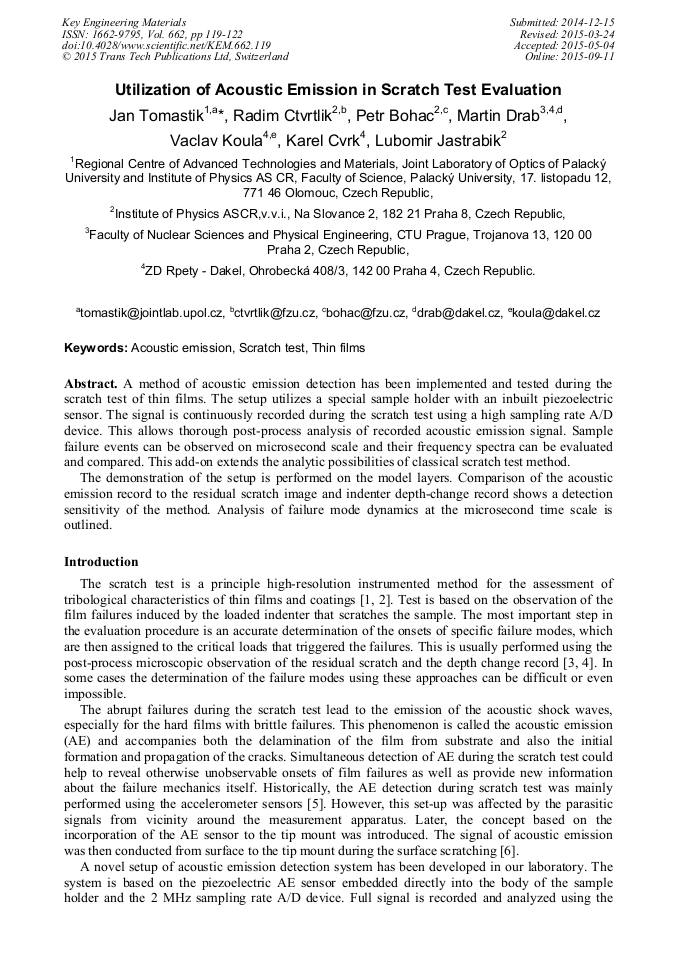

Utilization of Acoustic Emission in Scratch Test Evaluation

Abstract:

The scratch test is a well-established instrumental method for assessment of the cohesive-adhesive parameters of thin films and coatings. Its evaluation is classically performed using the microscopic analysis of residual scratch and the indenter depth-change record. However, these analysis methods can be insufficient for detection of the very first film-to-substrate adhesion failures. To overcome this difficulty, an independent method of detection of acoustic emission signals can be employed. The detection system of acoustic emission, developed in our laboratory, utilizes a special holder and continuous recording during the whole scratch test. The piezoelectric sensor with 2 MHz sampling rate and sophisticated software allow a thorough post-process analysis of recorded acoustic emission signal. Failure events can be observed on microsecond scale and their frequency spectra can be evaluated.The demonstration of the acoustic emission probe detection capability is performed on the model layers. Comparison of the acoustic emission record to residual scratch image and indenter depth-change record shows a detection sensitivity of the method. Analysis of failure mode dynamics at the appropriate time scale is outlined.

• Periodical: Key Engineering Materials (Volume 662)
• Pages: 119-122
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.662.119
• Online since: September 2015
• Authors: Jan Tomaštík*, Radim Čtvrtlík, Petr Bohac, Martin Drab, Vaclav Koula, Karel Cvrk, Lubomir Jastrabik
• Keywords: Acoustic Emission, Scratch Test, Thin Films

References

[1] A.J. Perry, The adhesion of chemically vapour-deposited hard coating to steel—the scratch test, Th. Sol. Fil., 78 (1981) 77-93.

DOI: 10.1016/0040-6090(81)90419-3

[2] A.J. Perry, Scratch adhesion testing of hard coatings, Th. Sol. Fil., 107 (1983) 167-180.

[3] J. Valli, A review of adhesion test methods for thin hard coatings, Journal of Vacuum Science & Technology A Vacuum Surfaces and Films, A4 (1986) 3007–3014.

DOI: 10.1116/1.573616

[4] P.A. Steinmann, H.E. Hintermann, Adhesion of TiC and Ti(C, N) coatings on steel, J. of Vac. Sci. and Tech. A, 3 (1985) 2394-2400.

[5] J. Sekler, P.A. Steinmann, H.E. Hintermann, The scratch test: Different critical load determination techniques, Sur. C. T, 36 (1988) 519-529.

DOI: 10.1016/0257-8972(88)90179-x

[6] J. von Stebut et al., Acoustic emission monitoring of single cracking events and associated damage mechanism analysis in indentation and scratch testing, Sur. C. T., 116–119 (1999) 160-171.

DOI: 10.1016/s0257-8972(99)00211-x
