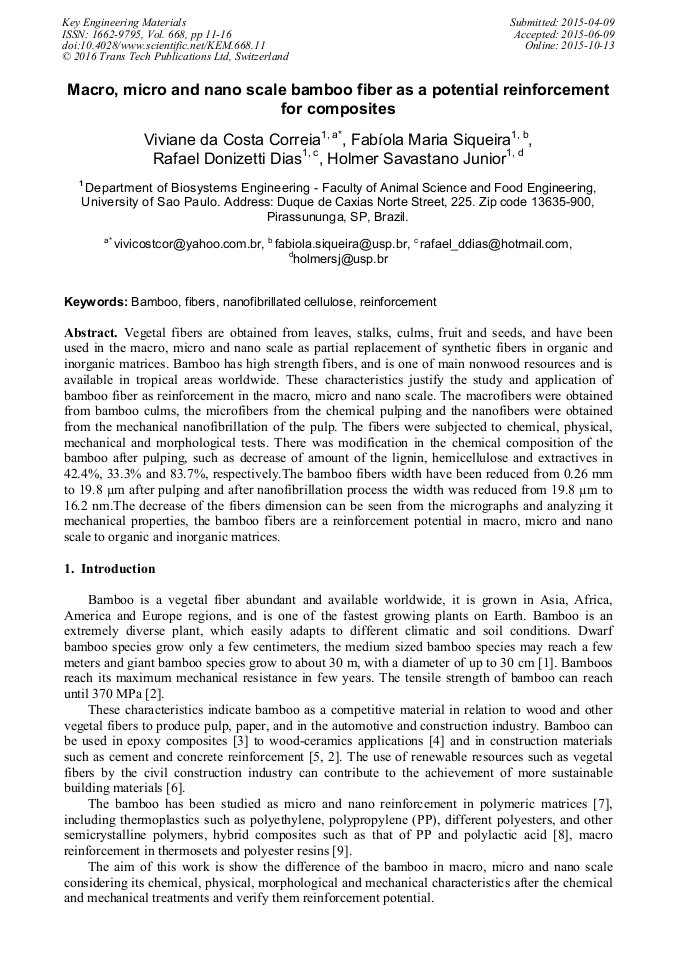

Macro, Micro and Nanoscale Bamboo Fiber as a Potential Reinforcement for Composites

Abstract:

Vegetal fibers are obtained from leaves, stalks, culms, fruit and seeds, and have been used in the macro, micro and nanoscale as partial replacement of synthetic fibers in organic and inorganic matrices. Bamboo has high strength fibers, and is one of main nonwood resources and is available in tropical areas worldwide. These characteristics justify the study and application of bamboo fiber as reinforcement in the macro, micro and nanoscale. The macrofibers were obtained from bamboo culms, the microfibers from the chemical pulping and the nanofibers were obtained from the mechanical nanofibrillation of the pulp. The fibers were subjected to chemical, physical, mechanical and morphological tests. There was modification in the chemical composition of the bamboo after pulping, such as decrease of amount of the lignin, hemicellulose and extractives in 42.4%, 33.3% and 83.7%, respectively.The bamboo fibers width have been reduced from 0.26 mm to 19.8 μm after pulping and after nanofibrillation process the width was reduced from 19.8 μm to 16.2 nm.The decrease of the fibers dimension can be seen from the micrographs and analyzing it mechanical properties, the bamboo fibers are a reinforcement potential in macro, micro and nanoscale to organic and inorganic matrices.

• Periodical: Key Engineering Materials (Volume 668)
• Pages: 11-16
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.668.11
• Online since: October 2015
• Authors: Viviane da Costa Correia*, Fabíola Maria Siqueira, Rafael Donizetti Dias, Holmer Savastano
• Keywords: Bamboo, Fibers, Nanofibrillated Cellulose, Reinforcement

References

[1] M. Lobovikov, S. Paudel, M. Piazza, H. Ren, J. Wu, World bamboo resources: A thematic study prepared in the framework of the Global Forest Resources Assessment. Non-wood forest products 18. Food and Agriculture Organization of the United Nations. FAO. Rome, (2007).

[2] K. Ghavami, Bamboo as reinforcement in structural concrete elements, Cement Concrete Comp. 27 (2005) 637-649.

DOI: 10.1016/j.cemconcomp.2004.06.002

[3] T. Lu, M. Jiang, Z. Jiang, D. Hui, Z. Wang, Z. Zhou, Effect of surface modification of bamboo cellulose fibers on mechanical properties of cellulose/epoxy composites, Composites Part B-Eng. 51 (2013) 28-34.

DOI: 10.1016/j.compositesb.2013.02.031

[4] X-C. Yu, D-L. Sun, D-B. Sun, Z-H. Xu, X-S. Li, Basic properties of woodceramics made from bamboo powder and epoxy resin, Wood Sci Technol. 46 (2012) 23-31.

DOI: 10.1007/s00226-010-0390-y

[5] R. S. P. Coutts, Y. Ni, Y, Autoclaved Bamboo Pulp Fibre Reinforced Cement, Cement Concrete Comp. 17 (1995) 99-106.

DOI: 10.1016/0958-9465(94)00002-g

[6] F. P. Pacheco-Torgal, S. Jalali, Cementitious building materials reinforced with vegetable fibres: A review, Constr Build Mater. 25 (2011) 575-581.

DOI: 10.1016/j.conbuildmat.2010.07.024

[7] K. Okubo, T. Fujii, E. T. Thostenson, Multi-scale hybrid biocomposite: Processing and mechanical characterization of bamboo fiber reinforced PLA with microfibrillated cellulose, Compos Part A-Appl S. 40 (2009) 469-475.

DOI: 10.1016/j.compositesa.2009.01.012

[8] Z. Ying-Chen, W. Hong-Yan, Q. Yi-Ping, Morphology and properties of hybrid composites based on polypropylene/polylactic acid blend and bamboo fiber, Bioresource Technol. 101 (2010) 7944-7950.

DOI: 10.1016/j.biortech.2010.05.007

[9] K. J. Wong, S. Zahi, K. O. Low, C. C. Lim, Fracture characterisation of short bamboo fibre reinforced polyester composites, Mater Design. 31 (2010) 4147-4154.

DOI: 10.1016/j.matdes.2010.04.029

[10] V. C. Correia, A. A. S. Curvelo, K. Marabezi, A. E. F. S. Almeida, H. Savastano Jr., Bamboo cellulosic pulp produced by the etanol/water process for reinforcement applications, Ciênc Florest. 25 (2015) 127-135.

DOI: 10.5902/1980509817470

[11] G. H. D. Tonoli, E. Fuente, C. Monte, H. Savastano Jr., F. A. Rocco Lahr, A. Blanco, Effect of fibre morphology on flocculation of fibre-cement suspensions. Cement Concrete Res. 39 (2009) 1017-1022.

DOI: 10.1016/j.cemconres.2009.07.010

[12] TAPPI T 204 cm-07. Standard. Solvent extractives of wood and pulp. (2007).

[13] TAPPI T 222 om-98. Standard. Acid-insoluble lignin in wood and pulp (1998).

[14] J. P. S. Morais, M. F. Rosa, J. M. Marconcini, Procedures for lignocellulosic analysis, Doc Embrapa. 236 (2010) 58.

[15] G. H. D. Tonoli, H. Savastano Jr., E. Fuente, C. Negro, A. Blanco, F. A. Rocco Lahr, Eucalyptus pulp fibres as alternative reinforcement to engineered cement-based composites. Ind Crop Prod. 31 (2010) 225-232.

DOI: 10.1016/j.indcrop.2009.10.009

[16] ASTM D 638 5 IMP. Standard Test Method for Tensile Properties of Plastics. (2010).

[17] N. Lavoine, I. Desloges, A. Dufresne, J. Bras, Microfibrillated cellulose – Its barrier properties and applications in cellulosic materials: A review, Carbohyd Polym. 90 (2012) 735-764.

DOI: 10.1016/j.carbpol.2012.05.026

[18] K. Ghavami, Ultimate Load Behaviour of Bamboo-Reinforced Lightweight Concrete Beams. Cement Concrete Comp. 17 (1995) 281-288.

DOI: 10.1016/0958-9465(95)00018-8

[19] C. Foelkel, The Eucapyptus fibers and the kraft pulp quality requirements for paper manufacturing. Eucalyptus Online Book & Newsletter. Brazilian Pulp and Paper Technical, 42, (2007).

[20] M. C. Silva, J. A. Takahashi, D. Chaussy, J. A. Belgacem, G. G. SILVA, Composites of rigid polyurethane foam and cellulose fiber residue. J Appl Polym Sci. 117 (2010) 3365-3672.

DOI: 10.1002/app.32281

[21] M. Jonoobi, A. P. Mathew, K. Oksman, Producing low-cost cellulose nanofiber from sludge as new source of raw materials, Ind Crop Prod. 40 (2012) 232-238.

DOI: 10.1016/j.indcrop.2012.03.018

[22] K. Oksman, A. P. Mathew, M. Sain, Novel bionanocomposites: processing, properties and potential applications. Plast Rubber Compos. 38 (2009) 396-405.

DOI: 10.1179/146580109x12540995045723
